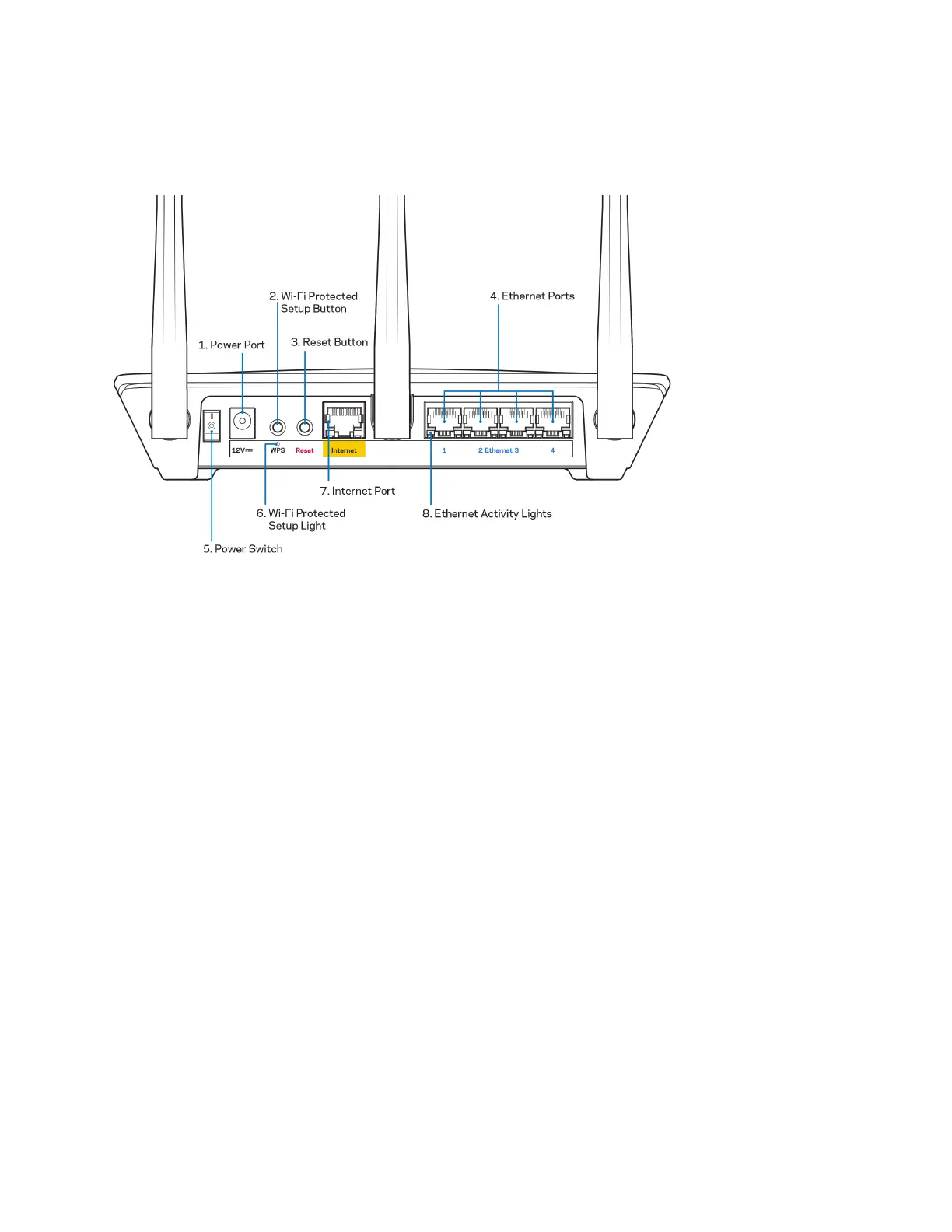

Power port (1)—Connect the included AC power adapter.
Wi-Fi Protected Setup button (2)—Press to configure wireless security on Wi-Fi Protected Setup-enabled network devices.
Reset button (3)—Press and hold for until the light on the top of the router starts flashing to reset the router to factory settings.
You can also restore the factory settings using the Linksys app or at www.LinksysSmartWiFi.com.
Ethernet ports (4)—Connect ethernet cables to these blue gigabit (10/100/1000) ports, and to wired devices on your network.
Note—For best performance, use CAT5e or higher rated cables on the ethernet ports.
Power switch (5)—Press | (on) to turn on the router.
WPS setup light (6)—Flashes during a WPS pairing process.
Internet port (7)—Connect an ethernet cable to this yellow gigabit (10/100/1000) port, and to a broadband or fiber modem.
Note—For best performance, use CAT5e or higher rated cables on the internet port.
Ethernet activity lights (8)—Flash when there is traffic over an ethernet port.
