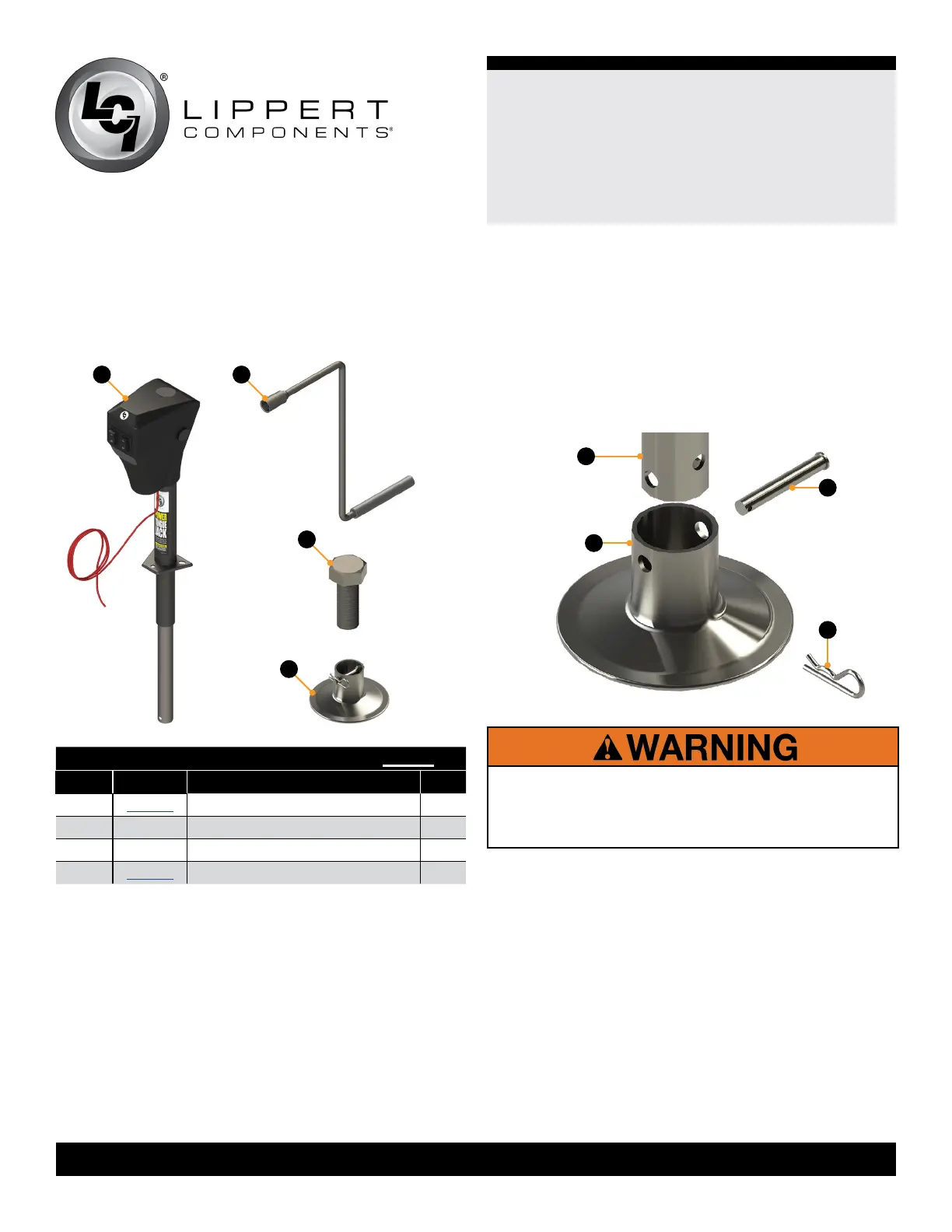

Lippert Components 285318 User Manual

3
lci1.com 574-537-8900 Rev: 03.06.20
Power Tongue Jack
Installation and Owner’s Manual
(For Aftermarket Applications)
CCD-0001301
Power Tongue Jack Aftermarket Kit PN Power Tongue Jack Aftermarket Kit PN 285318
LetterLetter PNPN
DescriptionDescription QtyQty
A 181794 Power Tongue Jack 1
B N/A Manual Crank Handle 1
C 808266 3/8” - 16 x 1” Hex Head Bolt (3) Kit 1
D
165253 Footpad Kit 1
Parts List
NOTE: Part numbers are shown for identification purposes
only. Not all parts are available for individual sale. All parts
with a link to the Lippert Store can be purchased.
• Cordless or Electric Drill
or Screw Gun
• Appropriate Drive Bits
•
9/16” Socket
• Appropriate loom, size cut
to length
Prior to Installation
1. Remove the footpad from the Power Tongue Jack
(if necessary).
A. Remove the hairpin cotter pin (Fig.1D) and clevis pin
(Fig.1C) holding the footpad (Fig.1B) to the jack leg (Fig.1A).
Set the pins and the footpad aside.
2. Support the trailer according to OEM instructions.
THE TRAILER MUST BE SUPPORTED PER
MANUFACTURER’S RECOMMENDATIONS BEFORE
WORKING UNDERNEATH. FAILURE TO DO SO MAY
RESULT IN DEATH OR SERIOUS INJURY.
Fig.1
A B
A
B
C
D
D
C
NOTE: Make sure to inspect the packing material, front,
back and underneath for all Power Tongue Jack parts.
Resources Required
