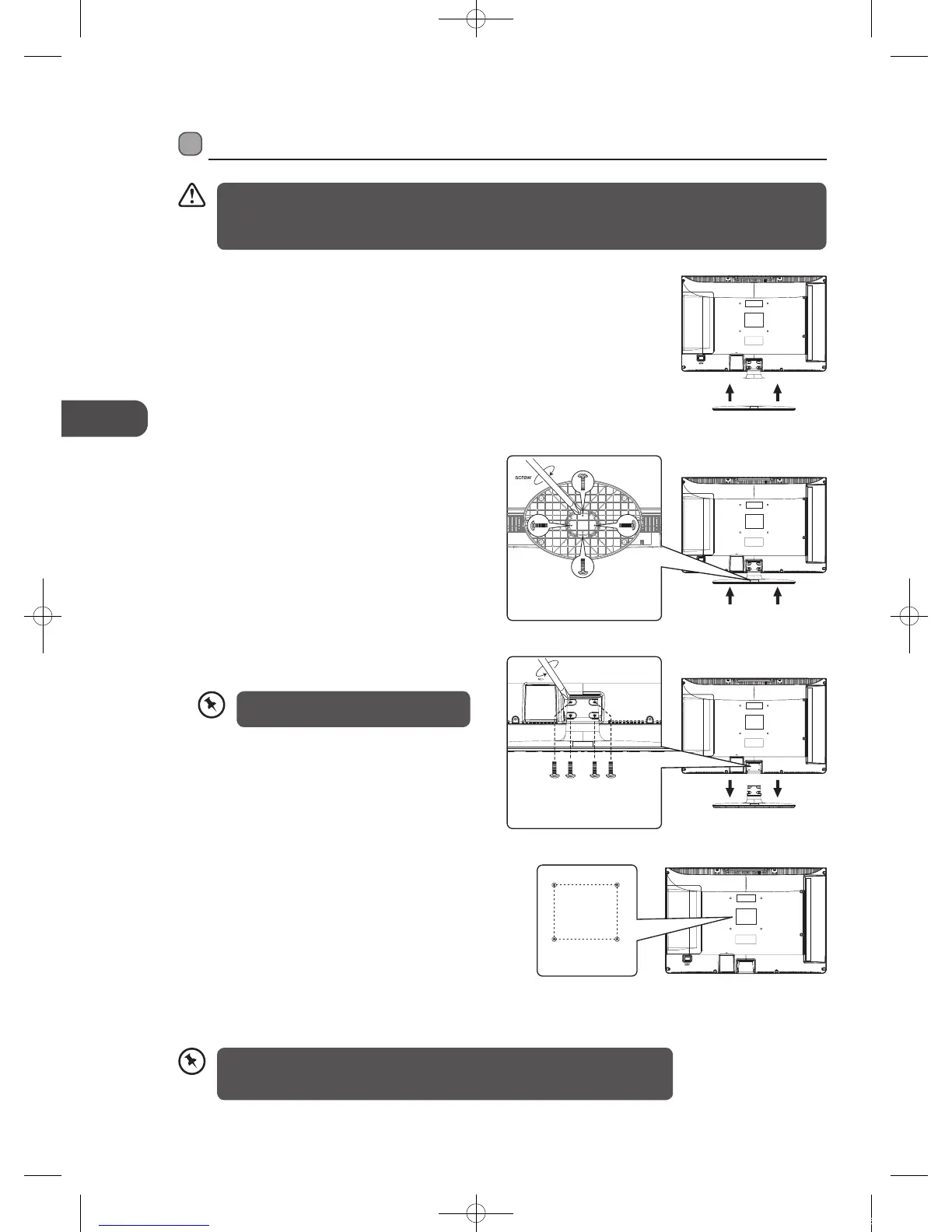

Preparation
1. Disconnect all cables connected to the TV.
2. Lay the TV down on a flat surface with the back side
facing up. Please make sure to place a soft cushioned
material (such as a pillow or thick piece of foam)
beneath the screen.
• Remove the base stand before mounting the TV onto the wall.
• The LCD display is very fragile, and must be protected at all times when installing and removing the base stand. Be
sure that no hard or sharp object, or anything that could scratch or damage the LCD display, comes into contact with
it. DO NOT exert pressure on the front of the TV at any time because the screen could crack.
4. To remove the base stand, untighten the 4 screws that
hold the base stand to the rear of the TV.
Installing / Removing the Base Stand
5. Mounting on the wall. This TV is designed to
be wallmounted with a standard 100 mm x 100
mm mounting kit designed for flat-panel TVs
(sold separately). Mount this TV according to the
instructions included in the mounting kit. Due to the
space restriction, we recommend that you make all
connections before mounting on the wall. (refer to
page 13-18 for details)
3. To install the base stand, attach the base stand with
the supplied screws.
uncrew
100 mm
100 mm
Four mounting holes
(size M4 screw)
Screw A x 4
part number
I.03.TW3010A02 (L22DVDW10)
I.03.TW3012A01 (L22DVDB20)
Screw B x 4
part number
I.03.MC4010MF2 (L22DVDW10)
I.03.MP4010001 (L22DVDB20)
Keep all the spare screws should you want
to use the base stand option.
• Please read this instruction manual carefully while setting up your TV.
• If you require additional assistance please call our Customer Technical Services Centre.
Tel: 0844 800 6020 (UK only)
