Preparation

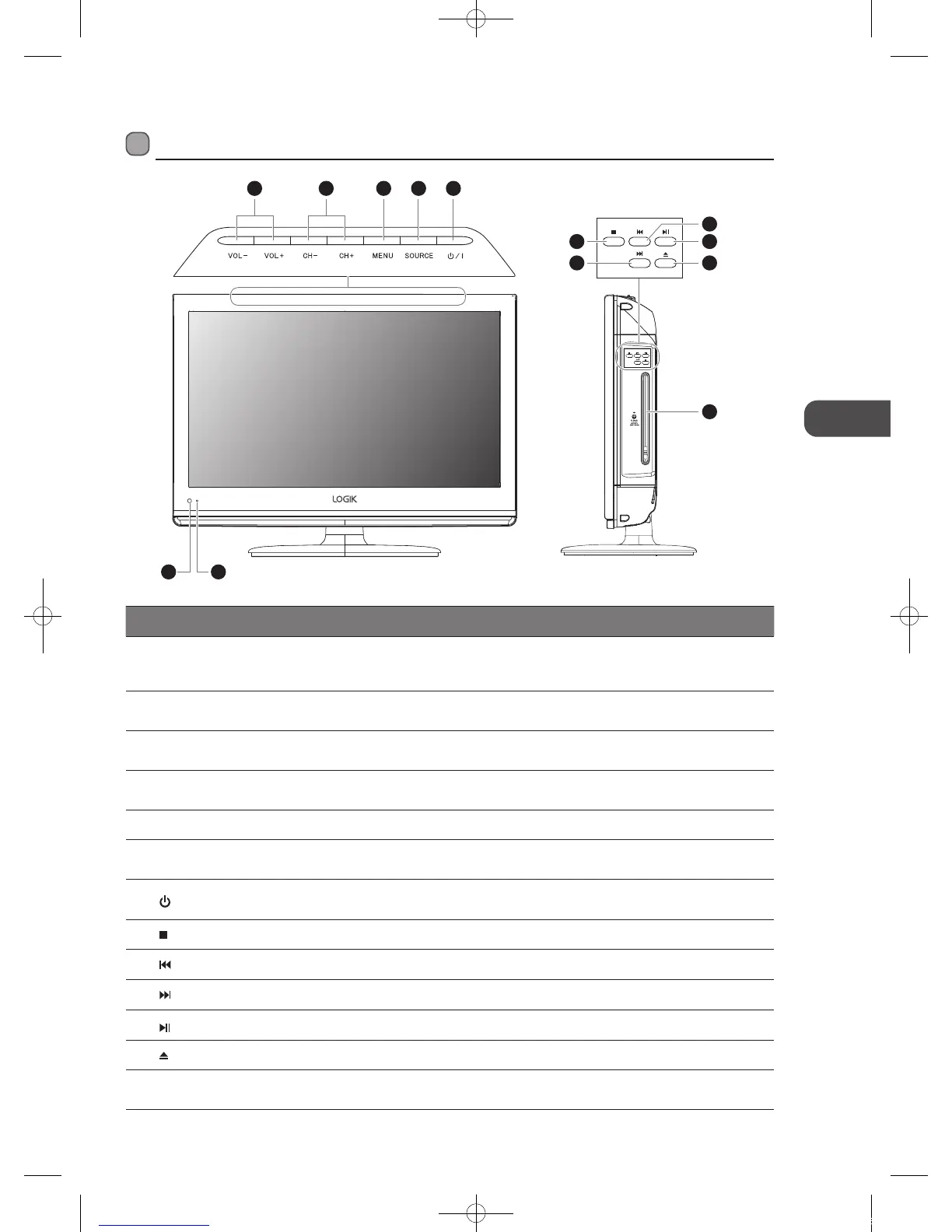

Front / Top / Side View and Controls
Item Description
1 POWER LED
Illuminates blue when the TV is turned on. Illuminates red when the TV is in standby
mode. The LED will illuminate blue when the timer programming has started in the
standby mode.
2 IR (Infrared Receiver)
Receives IR signals from the remote control.
Do not put anything near the sensor, as its function may be affected.
3 VOL +/–
Adjust the volume.
Select and adjust a setting in the OSD menus.
4 CH +/–
Select a channel.
Select a sub-menu of the OSD menu.
5 MENU Displays the OSD (on screen display) menu.
6 SOURCE
Select among the different input signal sources:
DTV / TV / DVD / AV / S-VIDEO / SCART / YPBPR / HDMI / PC
7
/ I
Switch the TV on from standby.
Switch the TV back to standby.
8
Press to stop (DVD mode)
9
Press to playback previous track or chapter (DVD mode)
10
Press to playback next track or chapter (DVD mode)
11
Press to start playback or pause. (DVD mode)
12
Press to insert and eject disc. (DVD mode)
13 Disc Slot
Insert the disc with the mirror side facing towards you (12 cm discs only. Don’t insert 8
cm discs)
1 2
13
6 753 4
1211
8 10
9
