Logitech F540 User Manual

14 English
Getting started with

If the previous recommended connections are inconvenient or don’t work for your system
setup, please follow the steps below to connect the wireless base station to your primary
audio system:
Using the Logitech RCA-to-RCA passthrough cable, connect one end to the Xbox 360 1.
ports on the back of the wireless base station
Connect the other end of the cable to the red and white stereo audio-out ports on 2.
the back of your primary audio system
Xbox 360
Xbox 360
Logitech RCA-to-RCA
passthrough cable
Logitech wireless
base station
Primary audio system

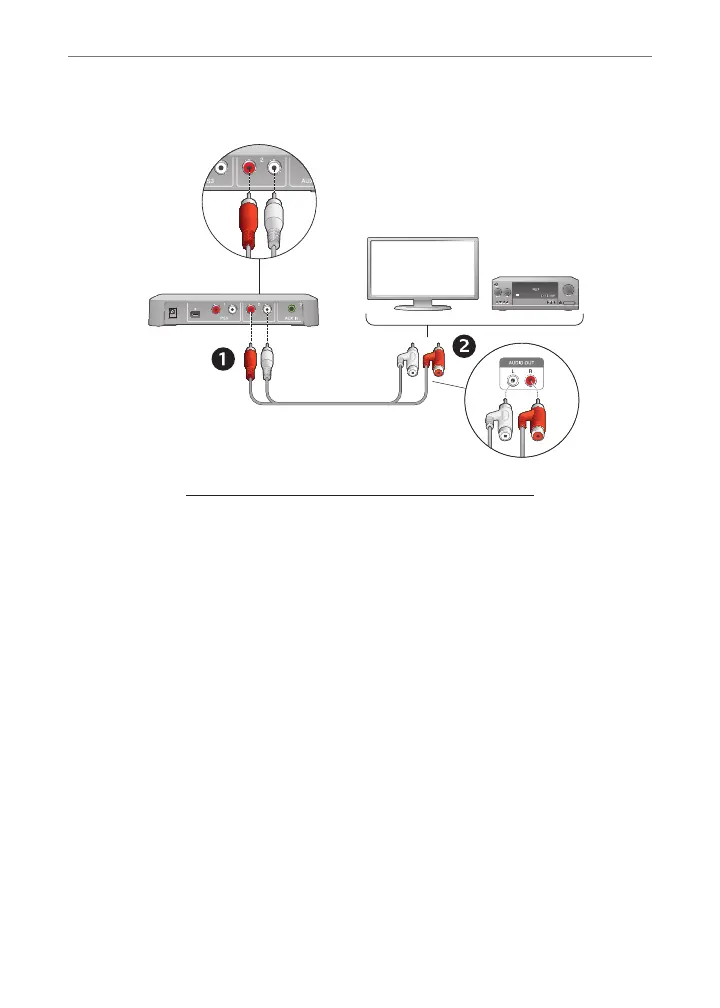

Figure 6

Logitech F540 Specifications

General

Impedance	- Ω
Ear coupling	-
Headphone frequency	- Hz
Frequency band	2.4 GHz
3.5 mm connector	Yes
Connectivity technology	Wireless
Product type	Headset
Product color	Black
Recommended usage	Gaming
Microphone type	Boom
