Logitech Z906 User Manual

10 English
User’s guide
Connect the subwoofer
power cable
Plug the subwoofer power cable into an
electrical outlet.
Adjust volume
Set volume to the nine o’clock position to test;
adjust thereafter as needed.
Turning on your system
Press the POWER ON/OFF button on the remote
control or control console to turn on your Z906.
Testing your system
To test whether you have correctly set up your
speakers, press and hold the INPUT button on
the remote control or control console for 5
seconds to put your system into test mode.
In test mode, the system cycles through each
speaker, playing an audible test signal. The test
signal comes from only one speaker at a time,
in 5-second intervals, in the following order:
left front, center, right front, right rear, left rear,
and subwoofer.
As a channel is tested, its corresponding LED
lights up on the front panel of the control
console. The test signal cycles through each
speaker one time and stops. To re-enter test
mode, press and hold the INPUT button on the
remote or control console for 5 seconds.
INPUTS
CONSOLE
2
3
4 5
1
INPUTS
CONSOLE
1
3
4 5
2

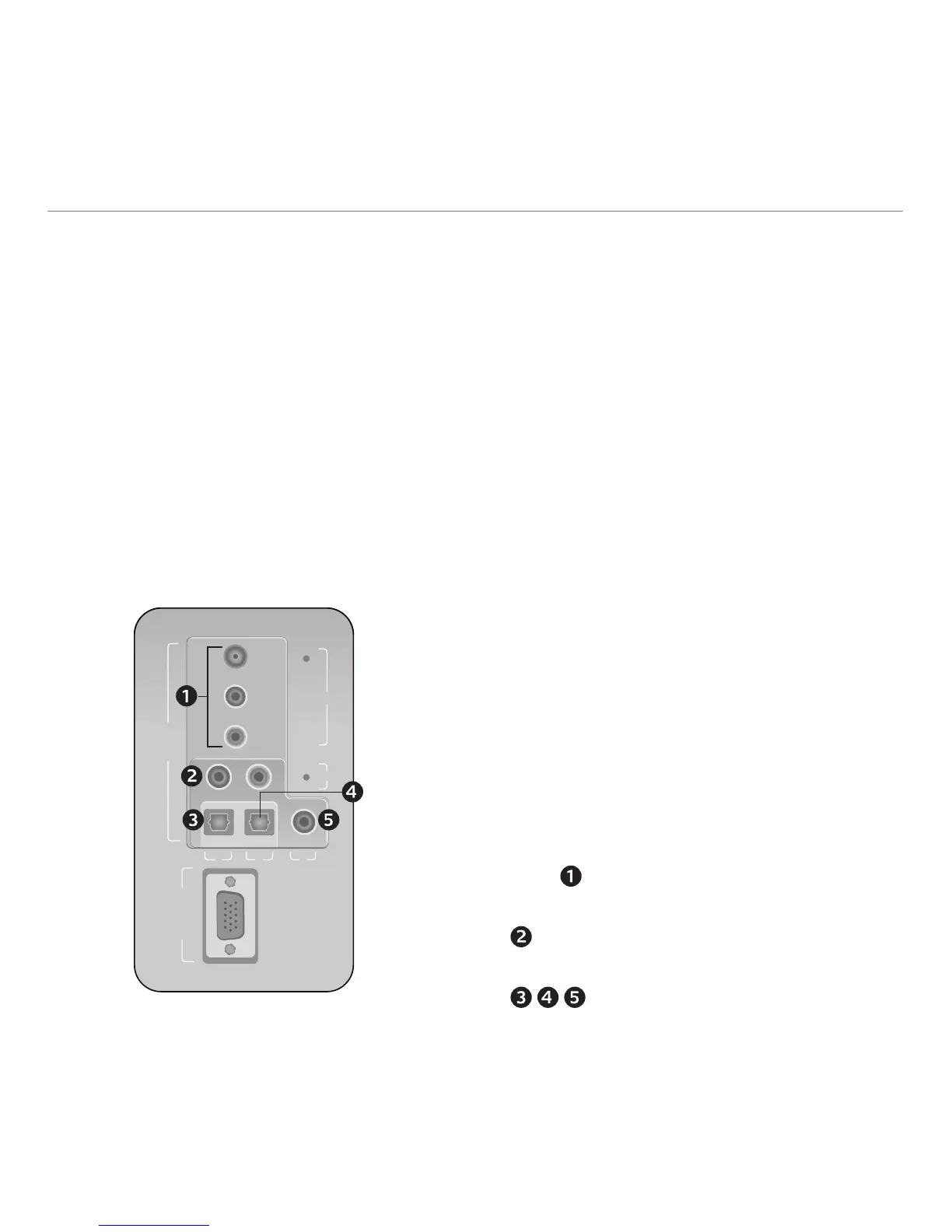

Subwoofer back panel
Connect the audio source cable
Turn off speakers
Connect your audio source (e.g., TV, DVD,
computer) to the appropriate input jack on your
subwoofer.
• For computer sound cards, use the 6-channel
input
(cable included).
• For stereo devices, use the Stereo RCA input
(cable not included).
• For digital devices, use the digital inputs
(cable not included).

Logitech Z906 Specifications

General

Satellite speaker type	-
Satellite speaker weight	890 g
Number of satellite speakers	4
Satellite speakers RMS power	67 W
Satellite speakers wall mountable	Yes
Satellite speaker dimensions (WxDxH)	100.3 x 93.5 x 166.3 mm
Subwoofer weight	9000 g
Subwoofer dimensions (WxDxH)	281 x 319 x 293 mm
Certification	THX
Product color	Black
RMS rated power	500 W
Recommended usage	Universal
Power cable length	1.8 m
Remote control type	IR
Audio output channels	5.1 channels
Peak Music Power Output (PMPO)	1000 W
Center speaker dimensions (WxDxH)	166.3 x 93.5 x 100.3 mm
Cables included	Audio Direct
Power source	AC
Power plug type	Type C
Bluetooth	No
Connectivity technology	Wired
Digital audio coaxial in	1
Digital audio optical in	2
Battery type	AAA
Remote control weight	67 g
Control console weight	500 g
Number of batteries included	3 pc(s)
Number of batteries supported	3
Remote control dimensions (W x H x D)	43 x 18.9 x 111 mm
Master (outer) case width	405 mm
Master (outer) case length	461 mm
Master (outer) case weight	18350 g
Harmonized System (HS) code	85182200
Package type	Box
Package depth	435 mm
Package width	428 mm
Package height	383 mm
Package weight	16619.5 g
Battery technology	Alkaline
