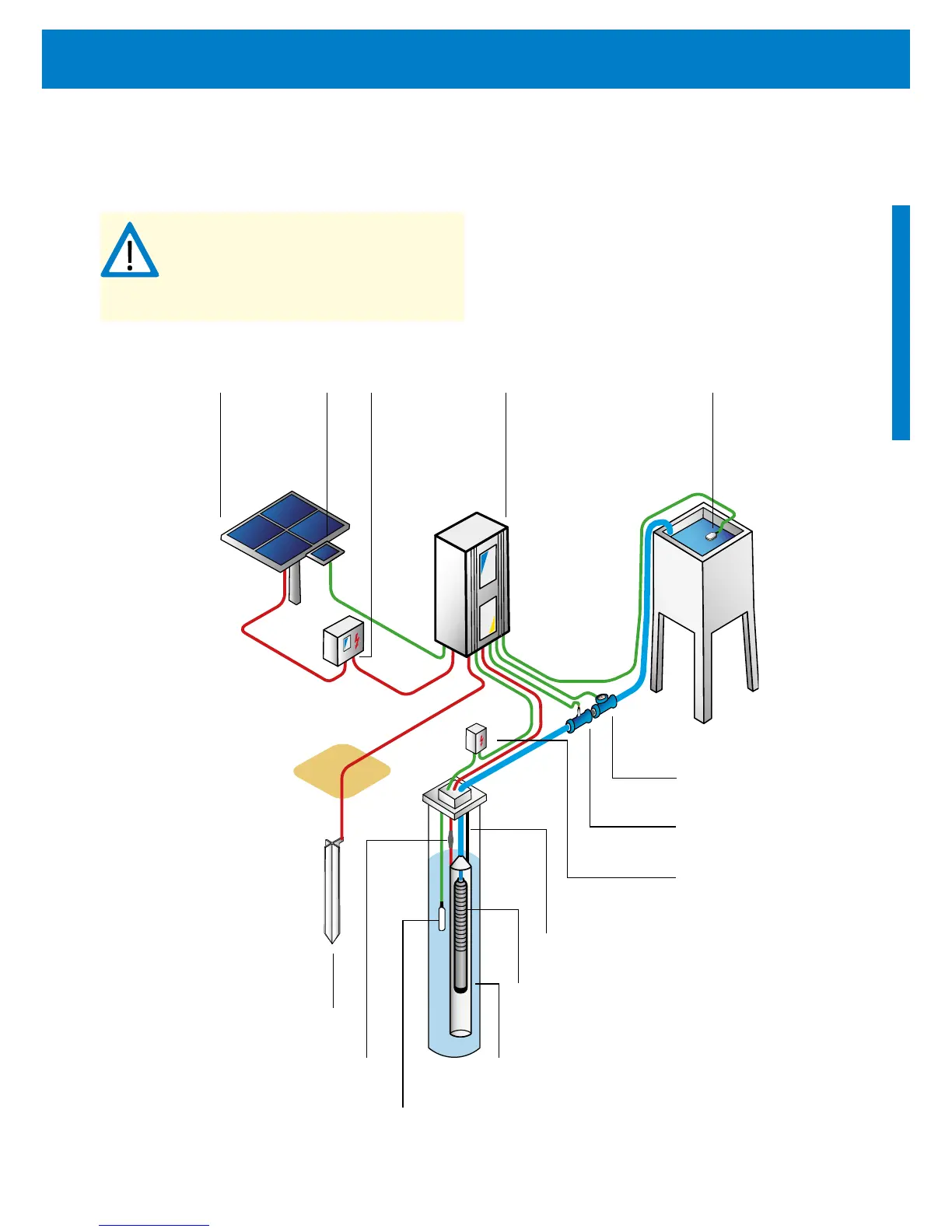

6.2 System Layout:
Submersible Pumps
CA
UTION -
This graphic is an exemplary
pump system layout diagram and for ease
of understanding only.
For system
installation and wiring read and follow the
detailed instructions given in this manual
.
PV generator
PV module
for SunSwitch
PV disconnect
PS controller
float switch
water meter
pressure sensor
surge protector
safety rope
stilling tube
submersible pump
grounding rod
splicing kit
well probe
12
Pump System Sizing & Layout Diagr
ams
Pump System Sizing & Layout Diagr
ams
13
14
16
Table of Contents
Default Chapter
6
Table of Contents
6
1 Declaration of Conformity
8
2 Receipt, Storage and Handling
8
3 Product Specification
9
General
9
Features
9
Naming
10
4 Operating Conditions
11
5 Safety Instructions
12
6 Pump System Sizing & Layout Diagrams
14
Pump System Sizing
14
System Layout: Submersible Pumps
15
System Layout: Surface Pumps
16
System Layout: Surface Boost Pumps
17
7 Controller Installation
18
General
18
Controller Types
20
Controller Elements
21
Technical Data of the Controller
21
Controller Placement
22
Mounting, Space and Ventilation Requirements
22
Wiring the Controller
24
Controllers Without Pre-Wired Plugs
24
Terminal Descriptions
24
Pump Wiring
29
Pump Accessories Wiring
30
Input Wiring for Solar-Direct Systems
31
Input Wiring for Battery-Based Systems
32
Grounding
33
Controllers with Pre-Wired Plugs
34
Jumper Settings (PS150 Only)
37
8 Pump Installation
38
General Instructions
38
Pipe Sizing
38
Cable Splicing
39
Pump System Type
39
Submersible Pumps
40
Wiring the Pump
40
Installation and Handling
42
Installation Depth
43
Removal
43
Additional Features
44
Safety Rope
44
Plastic Pipes
44
Stilling Tube
44
CS-F Surface Pumps
45
Placement and Foundation
45
Pump Motor Wiring
46
Installation and Handling
47
Suction Head
48
Initial Start-Up
49
Filling Pump with Water
49
Rotary Direction
50
Final Check-Up
50
Boost Surface Pumps
51
Placement and Foundation
51
Pump Motor Wiring
51
Installation Position
52
Filtering
53
Plumbing Design
54
Freeze Protection
55
9 Pump Accessories Installation
56
Well Probe
56
Float Switch (Full Tank Shut-Off)
58
Sunswitch
59
Water Meter Installation
60
Pressure Sensor Installation
60
Level Sensor Installation
60
Sacrificial Anode
60
Surge Protector
61
PV Disconnect with Lightning Surge Protection
61
10 Operating the Pump
62
LED Status
63
Starting the Pump
65
Time Delays
65
Parameter Setting (with Datamodule Only)
66
11 Lorentz Connected
67
Datamodule
67
Pumpscanner
67
PS Communicator & Pumpmanager
68
12 Troubleshooting
69
Pump Does Not Run
69
Pump Attempts a Restart Every 120 Seconds
69
Pump Overload (Pump on LED Is Red)
70
