Lumex LF1600 User Manual

LF1600-INS-LAB-RevE15 • LF1600 Stand Assist 7

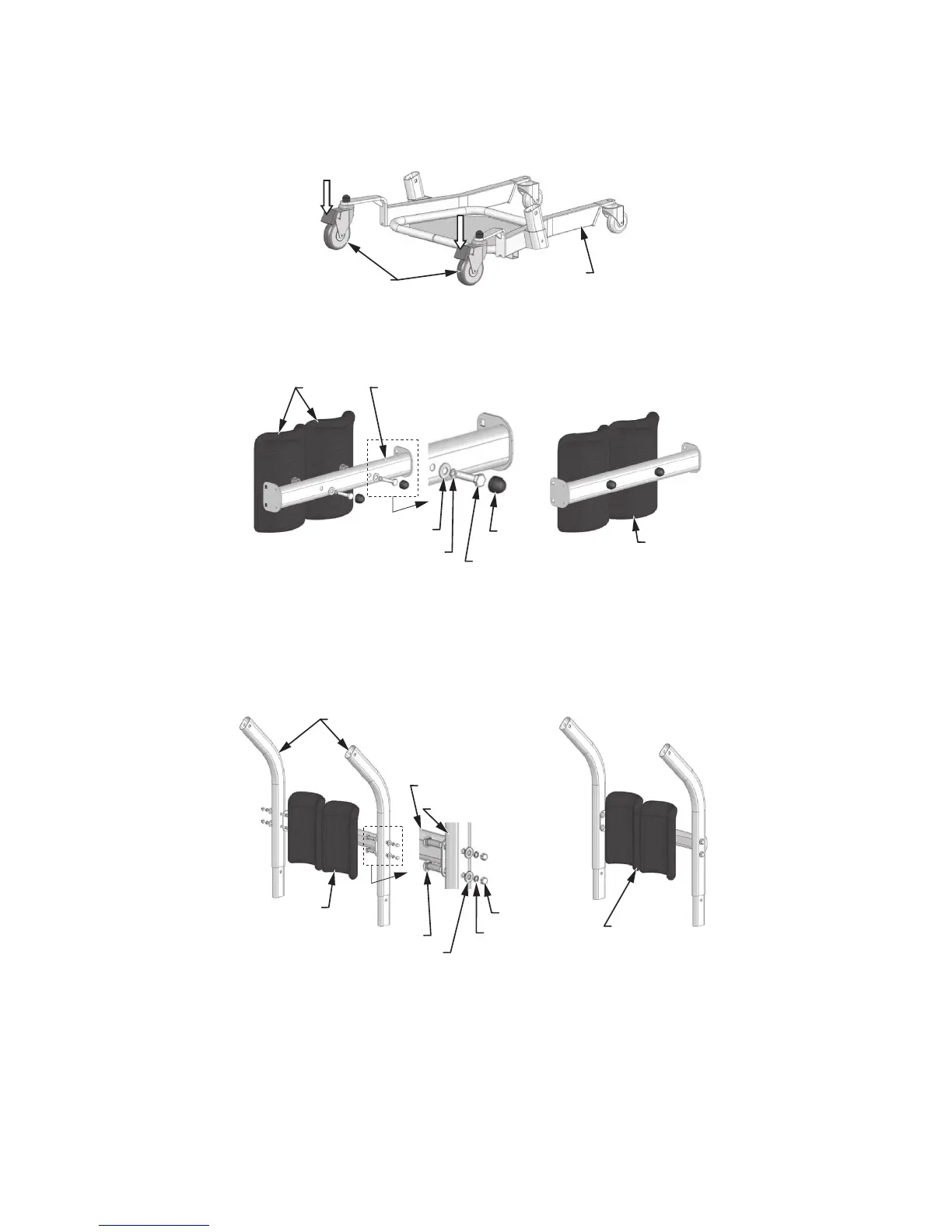

5 ASSEMBLY INSTRUCTIONS
Tools required: provided wrench, provided hex key
back casters
base assembly
1. Place the base assembly on the oor and lock the back casters for ease of
assembly, as shown above.
flat washer
lock washer
hex bolt
plastic
cap
kneepad
kneepad
support unit
kneepad
assembly
2. Insert the kneepads into the kneepad support unit. Install the two hex bolts
through lock washers, at washers, and kneepad support unit into nuts as shown
above. Tighten securely with the provided wrench. Install the two plastic caps on
the hex bolts. The nished assembly is shown at right above.
carriage bolt
kneepad assembly
kneepad side
support assembly
side support arm
flat washer
lock washer
acorn nut
kneepad
assembly
side support arm
3. Attach the kneepad assembly to the two side support arms. Face the square holes
on the side support arms inward; t the square shoulder of each carriage bolt
in the square hole, installing each carriage bolt through the kneepad assembly
bracket and side support arm from the inside as shown above. Install the at
washer, lock washer, and acorn nut on the end of each carriage bolt as shown
above. Do not tighten the nuts; some play in this assembly will be needed to
assemble the entire unit. The nished assembly is shown at right above.
