Switch with Occupancy / Vacancy Sensor
Wiring Diagrams (continued)
Wiring Diagram 4 - without Neutral
Note: Connect green-sleeved wire to ground only in retrofit and replacement applications.
1
A single standard mechanical 3-way switch or up to 9 companion switches may be connected to most occupancy sensor switches.
Standard mechanical 3-way switch cannot be combined with companion switch. Total blue terminal wire length may be up to 150ft (46m).
2
Only one occupancy sensor switch can be used per multi-location circuit.
3
Fan load applies to 120 V~ only (not for 277 V~).
4
Occupancy sensor switch can be installed in any location.
Continued on next page...

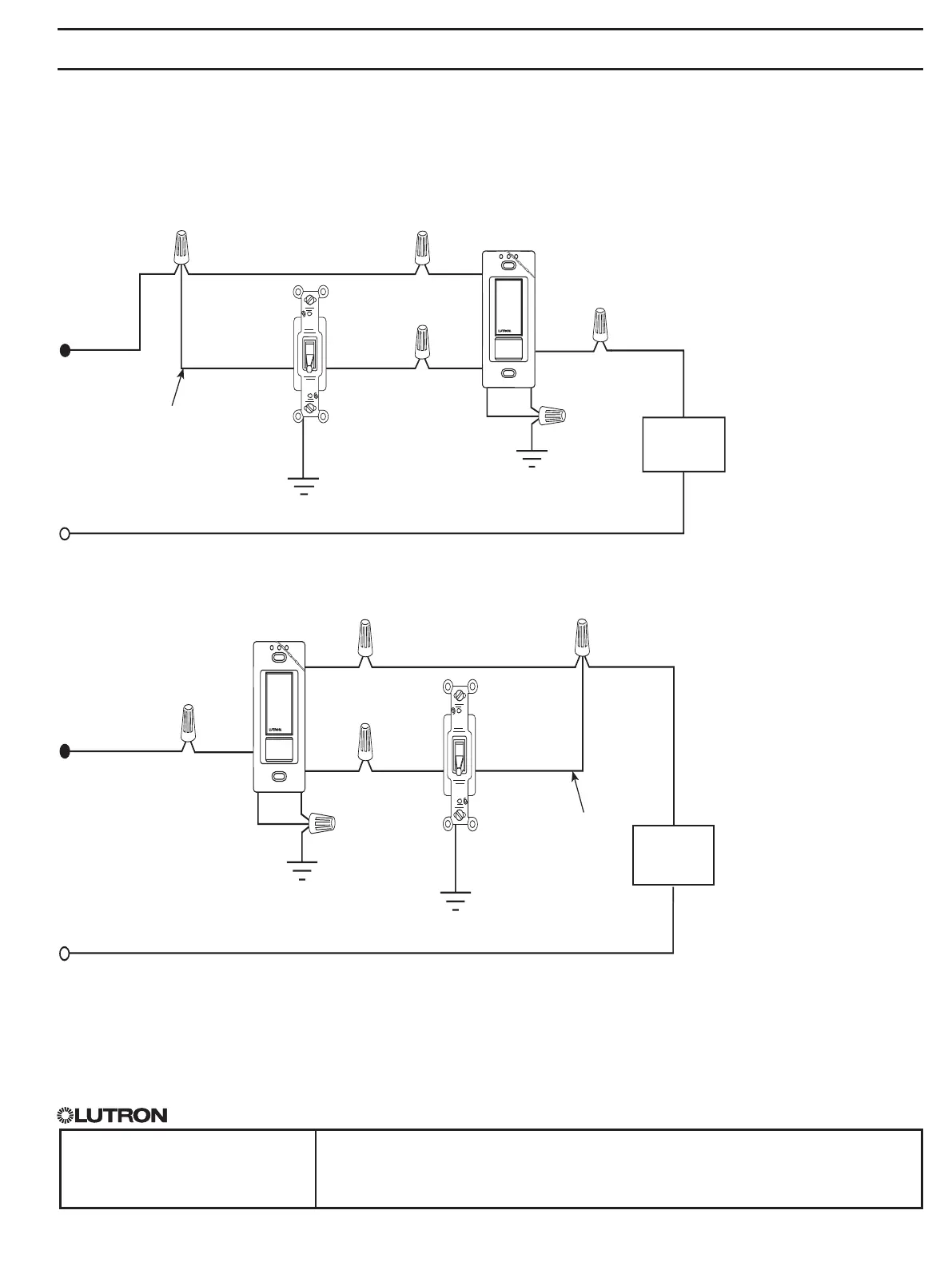

3-way Installation with Standard Mechanical Switch (277 V~)
1, 2, 3
-OPS6M2-DV, -VPS6M2-DV
Note: When neutral connection is available, remove green sleeve and connect
white wire to neutral.
Black
Blue
Green-sleeved wire
Ground
Occupancy
sensor switch
Green screw
Ground
277 V~
50 / 60 Hz
Hot / Live
Neutral
Load
Standard
mechanical switch
Black
Jumper wire
Bare
Different color screw
(Common)
OR
Black
Blue
Ground
Occupancy
sensor switch
Green-sleeved wire
Ground
277 V~
50 / 60 Hz
Hot / Live
Neutral
Load
Standard
mechanical switch
Black
Jumper wire
Bare
Different color screw
(Common)
Green screw
13
