11
OPERATION INSTRUCTIONS

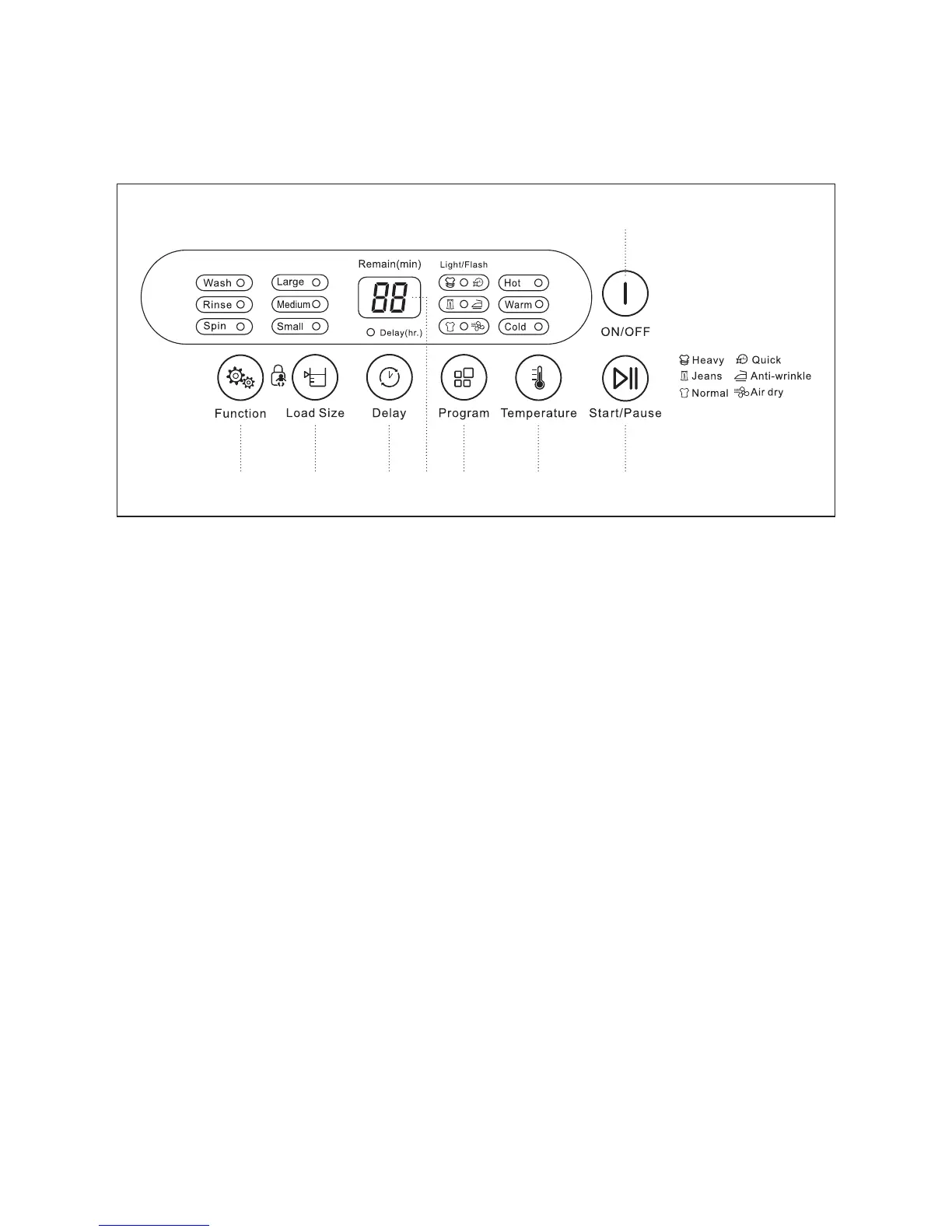

CONTROL PANEL
Figure 9
a. ON/OFF: Use to turn the power ON or OFF
b. Function: Use to set the function(s) of the desired wash cycle.
1. Can choose Wash, Rinse, Spin, or combinations of cycles.
2. Indicator lights show what function(s) are set.
3. During wash program, indicator blinks to show cycle.
c. Load Size: Use to set water level based on the size of the laundry load.
1. Indicator will light selected size of Large, Medium, or Small.
d. Delay: Use to set delayed start. The set time chosen will count down, and then start the washing machine.
1. Push repeatedly or hold down to increase the delay time.
2. Delay time increases 1 hour up to 24 hours, then 6 hours up to 48.
3. Delay indicator light flashes when delayed start time is set.
e. Display: Shows the time remaining while wash program is running, and displays the delayed start time while
setting.
f. Program: Use to select automatic wash program. Indicator will be lit or flashing to indicate selected program.
1. Heavy (Lit) – Quick (Flashing)
2. Jeans (Lit) – Anti-Wrinkle (Flashing)
3. Normal (Lit) – Air Dry (Flashing)
g. Temperature: Press to select desired water temperature of Hot, Warm, or Cold.
1. If only using a single hose, ALWAYS select “Cold” and adjust the temperature at the faucet.
h. Start/Pause: Press to start wash cycle after selecting wash program, or to pause and continue the wash cycle
during operation.
b c d fe g h
a
