Fuse No
Fuse Rating
Circuit
21 15A
Front Wiper
22 10A
Rear Wiper
23 5A
MBFM/FATC
24 5A
Audio Key IN
25
Spare
26 10A ORVM
27 15A
P/O Front
28 15A
P/O Rear
29
Spare
30 40A Power Windows
31
Spare
32 40A Blower Motor
33
Spare
34
Spare
35
Spare
36
Spare
37
Spare
38
Spare
Relay No
Circuit
39
Wiper HI/LO Relay
40
De-mister Relay
41
Fuel Lid Relay
42
Spare
43
Clutch Start Relay
44
Blower Relay
45
Spare
46
Spare
47
Spare
48
Spare

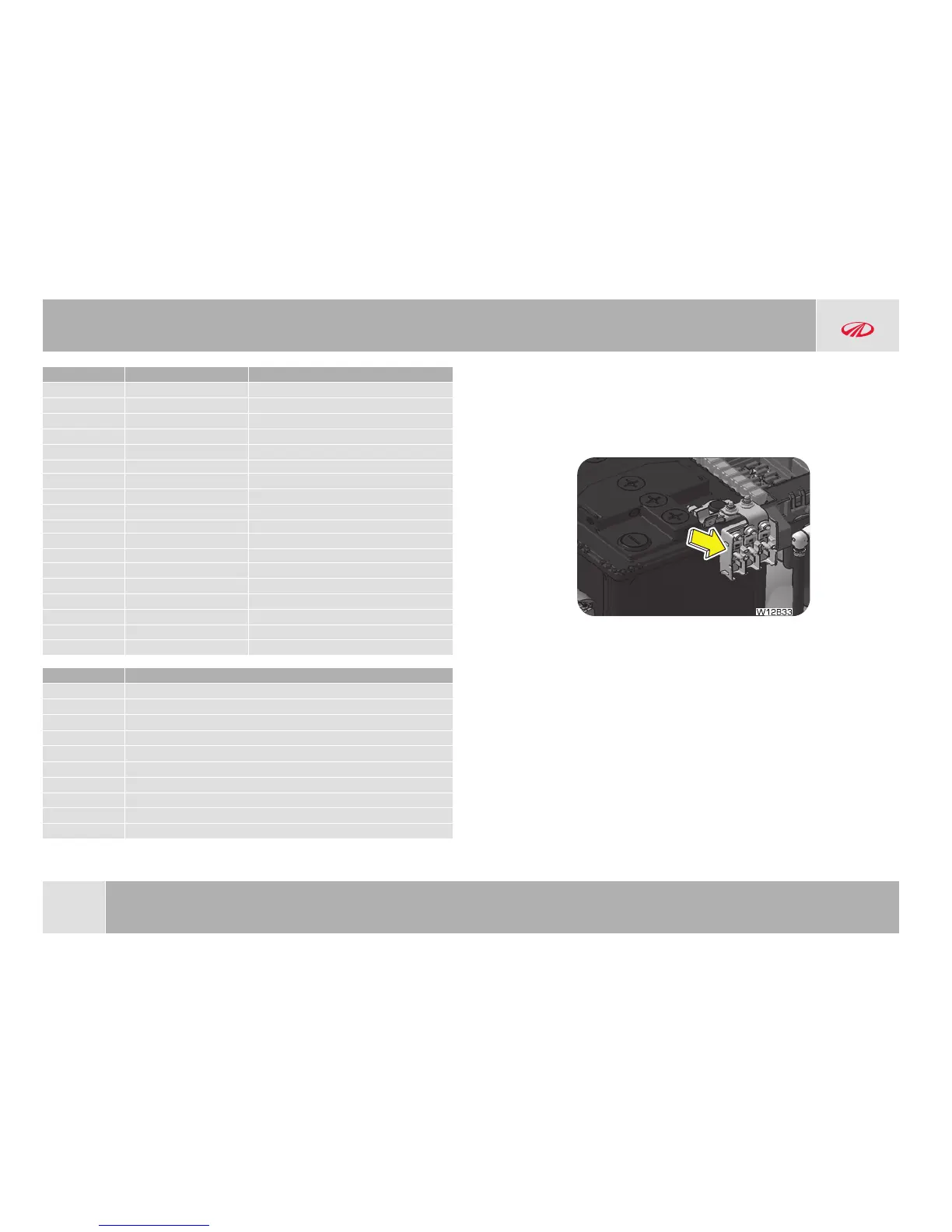

2.5.3 Battery Mounted Fuse Box
The battery mounted fuse box is connected to the positive terminal of the battery.
Functionality of battery mounted fuse box is to provide short circuit protection to
alternator, power supply to main engine compartment fuse box & electric cooling
fan.
W12B33
Battery mounted fuse box consist of following fuses:
• Main charging fuse – 125A
• Bus bar fuse - 80A
• Cooling fan fuse – 60A
2.6 Flat Tire
Reduce your speed gradually, keeping a straight line. Move cautiously off the road to
a safe place well away from traffic. Park on a level spot with firm ground. Stop the
engine and turn ON your hazard warning flashers.
Firmly apply the parking brake. Have everyone come out of the vehicle on the side
away from traffic.
