Mahindra 2615 User Manual

Form 1503-1067 Page 6 of 11

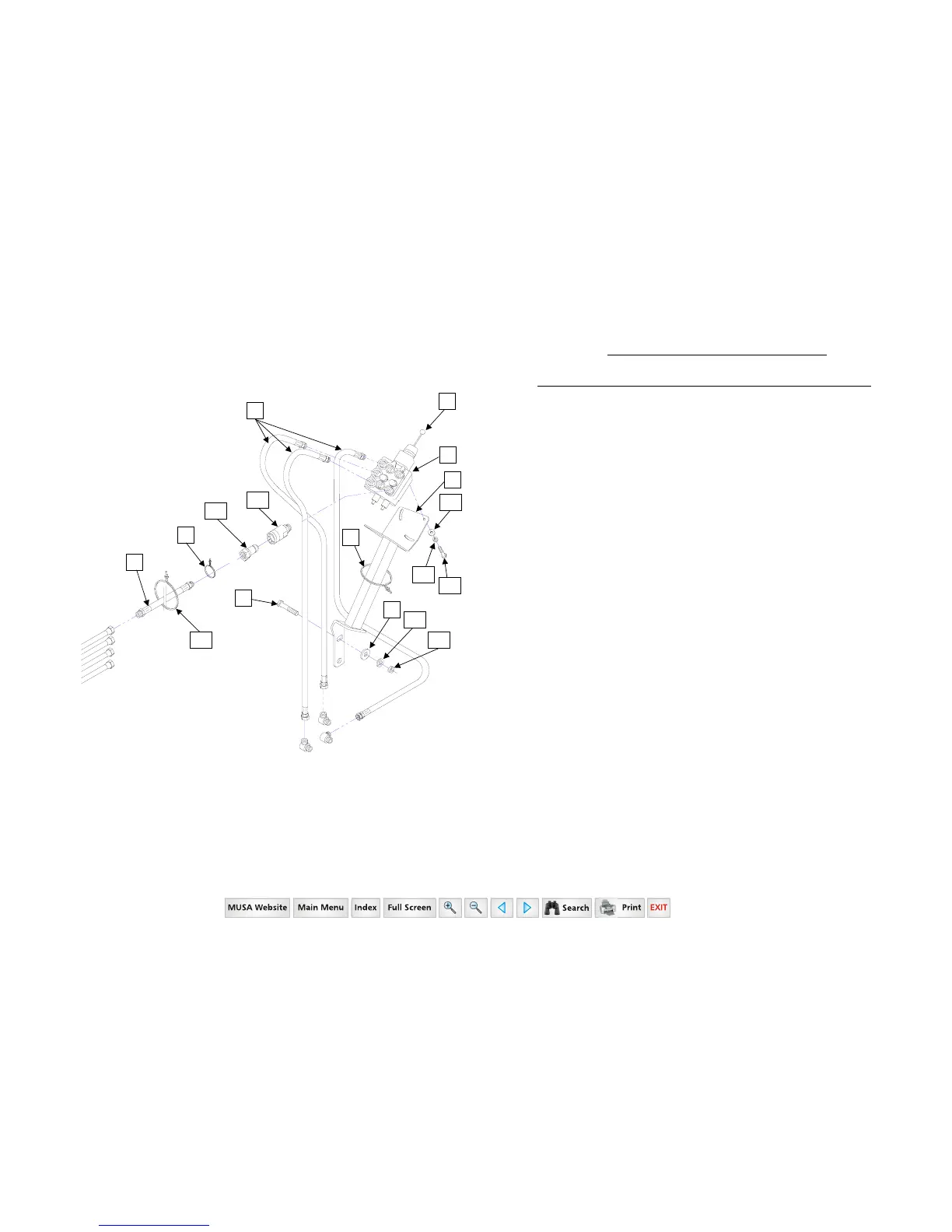

HYDRAULIC VALVE AND HARDWARE
5
3
1
4
7
8
2
16
10
15
6
15
11
12
14
13
9
Form 1503-1067 Page 7 of 11
HYDRAULIC VALVE AND HARDWARE
Reference Description Part No. Qty.
1 .................................... Hydraulic Control Valve w/ SLC ...............................0580-6091 ............. 1
2 .................................... Single Lever Control Kit ............................................1409-3076 ............. 1
3 .................................... Valve Stand Assembly ...............................................1204-2079 ............. 1
4 .................................... Hydraulic Hose Assembly, 1/4” x 40” ......................21003406040 ........ 4
5 .................................... Hydraulic Hose Assembly, 3/8” x 42” ......................22108506042 ........ 3
6 .................................... Plastic Tie Strap..........................................................0554-1013 ............. 4
7 .................................... Color Code Tie Strap, Blue........................................0554-2001 ............. 2
Red .........................................0554-2002 ............. 2
Yellow.....................................0554-2003 ............. 2
Green......................................0554-2004 ............. 2
8 .................................... Hex Head Cap Screw, 1/2” x 1 1/2”...........................0545-2106 ............. 2
9 .................................... Flat Washer, 1/2” ........................................................0543-2009 ............. 1
10 .................................. Lock Washer, 1/2” ......................................................0544-2012 ............. 2
11 .................................. Hex Head Nut, 1/2” .....................................................0555-2004 ............. 2
12 .................................. Hex Head Cap Screw, 5/16” x 3/4” ............................0545-2024 ............. 3
13 .................................. Lock Washer, 5/16” ....................................................0544-2009 .............3
14 .................................. Flat Washer, 5/16” ......................................................0543-2006 ............. 2
15 .................................. Quick Coupler, Female ..............................................0580-6067 ............. 4
16 .................................. Quick Coupler, Male ...................................................0580-6013 .............4
16 Series, Model - 2816
