33

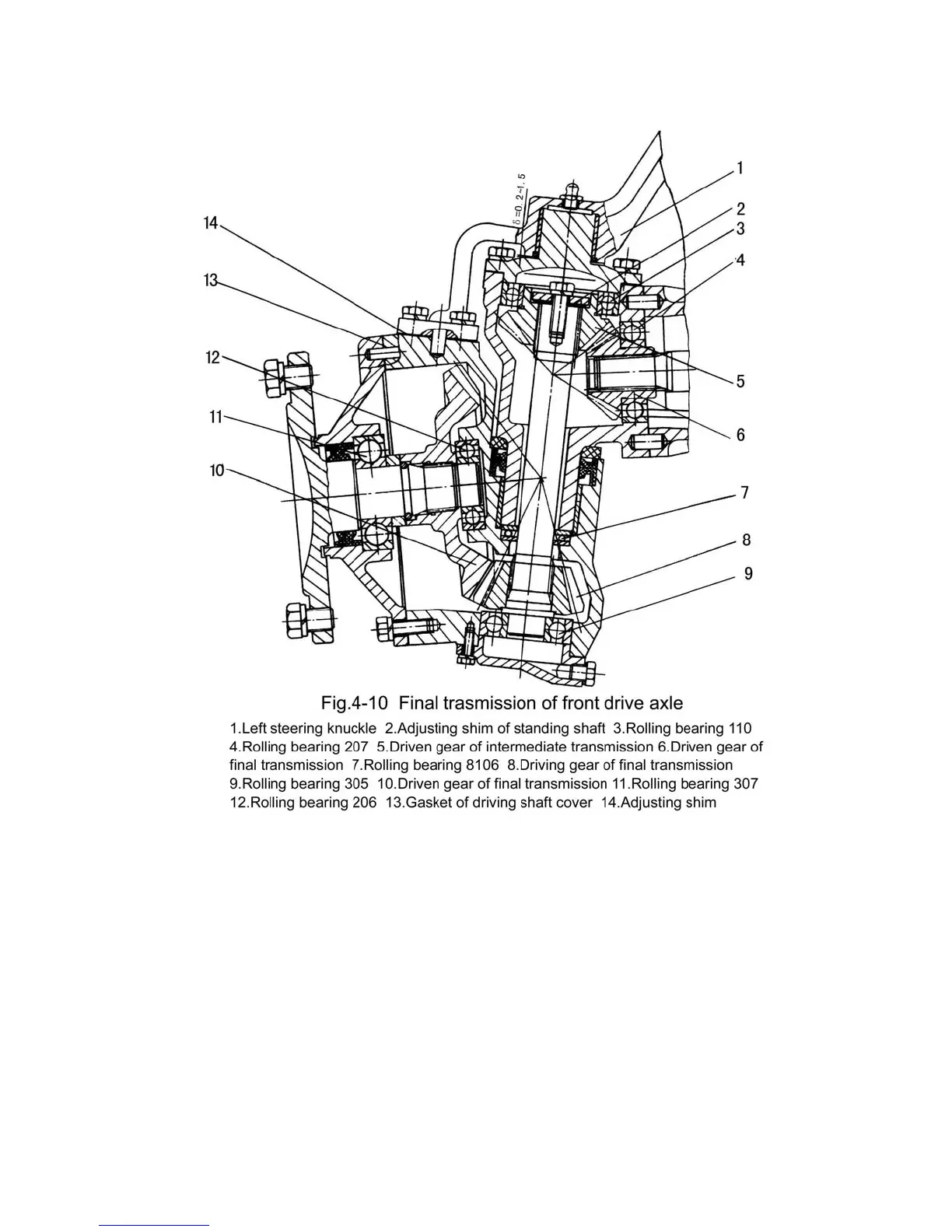

3) Adjustment of intermediate driven gear pairs (Fig.4-9)
During assembling, choose adjusting shim (2) of the standing shaft to keep the mesh
backlash among 0.2-0.4mm and ensure meshing contact traces.
7. Adjustment of wheel tread
1) Adjustment of front wheel tread
The front wheel treads of Agracat Series Tractors have the following two types:
adjustable wheel tread and non-adjustable wheel tread. The adjustable wheel tread is
adjusted in step through extension sleeve housing. The adjusting range is 970-1270mm. Every
step clearance is 100mm
.
