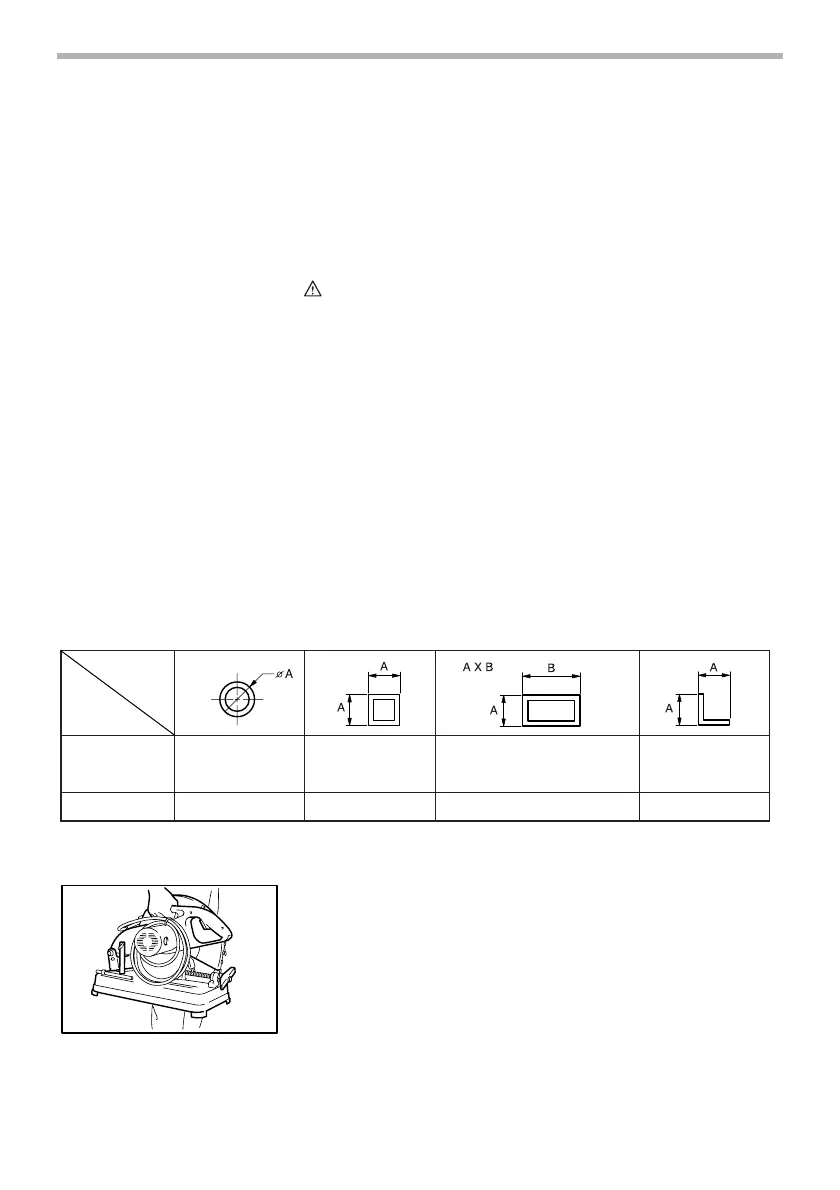

10
OPERATION
Hold the handle firmly. Switch on the tool and wait until the
wheel attains full speed before lowering gently into the cut.
When the wheel contacts the workpiece, gradually bear
down on the handle to perform the cut. When the cut is com-
pleted, switch off the tool and WAIT UNTIL THE WHEEL
HAS COME TO A COMPLETE STOP before returning the
handle to the fully elevated position.
CAUTION:
• Proper handle pressure during cutting and maximum
cutting efficiency can be determined by the amount of
sparks that is produced while cutting. Your pressure on
the handle should be adjusted to produce the maximum
amount of sparks. Do not force the cut by applying
excessive pressure on the handle. Reduced cutting
efficiency, premature wheel wear, as well as, possible
damage to the tool, cut-off wheel or workpiece may
result.
Cutting capacity
Max. cutting capacity varies depending upon the cutting
angle and workpiece shape. Applicable wheel diameter: 355
mm (14”)
Carrying tool
Fold down the tool head to the position where you can attach
the chain to the hook on the handle.
Workpiece
shape
Cutting
angle
90˚
115mm (4-1/2”) 119mm (4-11/16”)
115mm × 130 mm (4-1/2” × 5-1/8”)
102 mm × 194 mm (4” × 7-5/8”)
70 mm × 233 mm (2-3/4” × 9-1/8”)
137 mm (5-3/8”)
45˚
115mm (4-1/2”) 106 mm (4-3/16”)
115 mm × 103 mm (4-1/2” × 4-1/16”)
100 mm (3-15/16”)
003768
