INSTALLATION

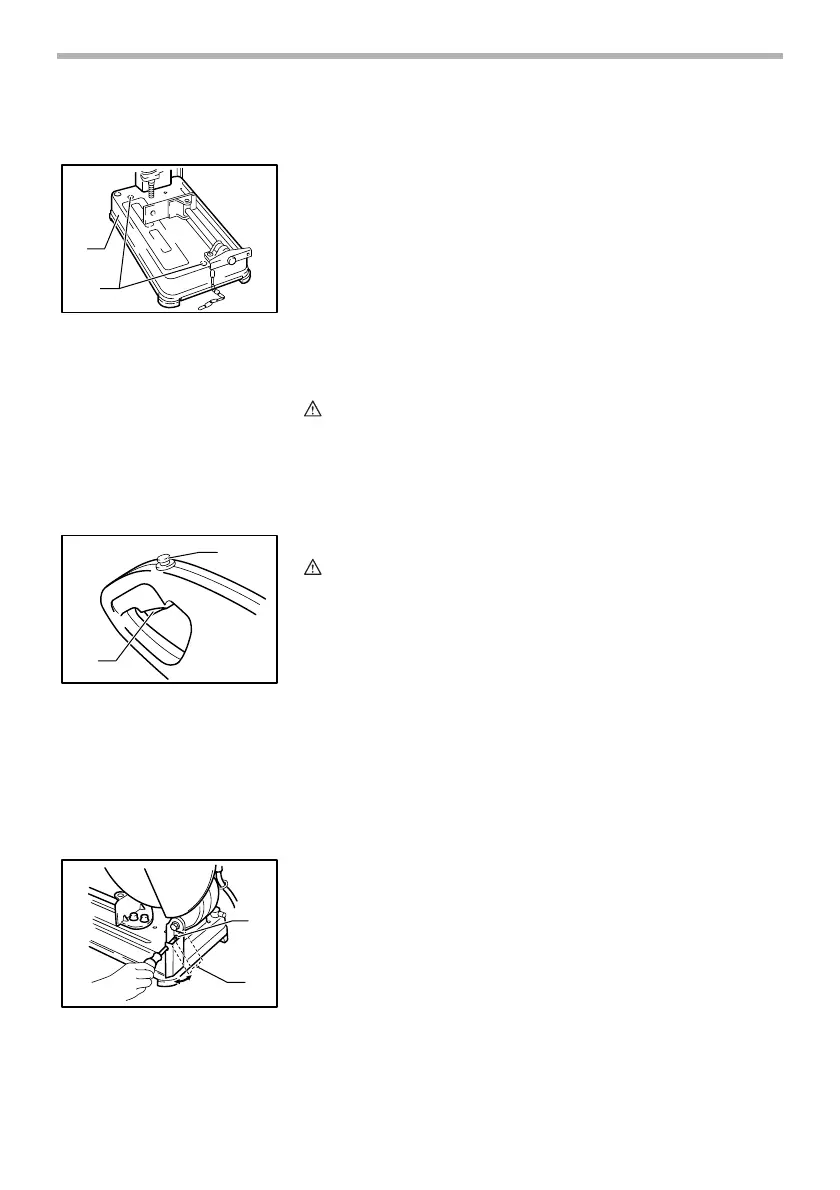

Securing cut-off
This tool should be bolted with two bolts to a level and stable
surface using the bolt holes provided in the tool’s base. This
will help prevent tipping and possible personal injury.
FUNCTIONAL
DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function on the
tool.
Switch action
CAUTION:
• Before plugging in the tool, always check to see that the
switch trigger actuates properly and returns to the “OFF”
position when released.
• When not using the tool, remove the lock-off button and
store it in a secure place. This prevents unauthorized
operation.
To prevent the switch trigger from being accidentally pulled, a
lock-off button is provided.
To start the tool, depress the lock-off button and pull the
switch trigger. Release the switch trigger to stop.
Spark guard
The spark guard is factory-installed with its lower edge con-
tacting the base. Operating the tool in this position will cause
many sparks to fly around. Loosen the screw and adjust the
spark guard to a position at which minimum sparks will fly
around.
1. Base
2. Bolt holes
1
2
003800
1. Lock-off button
2. Switch trigger
1
2
003754
1. Screw
2. Spark guard
1
2
003756
