13 ENGLISH
1

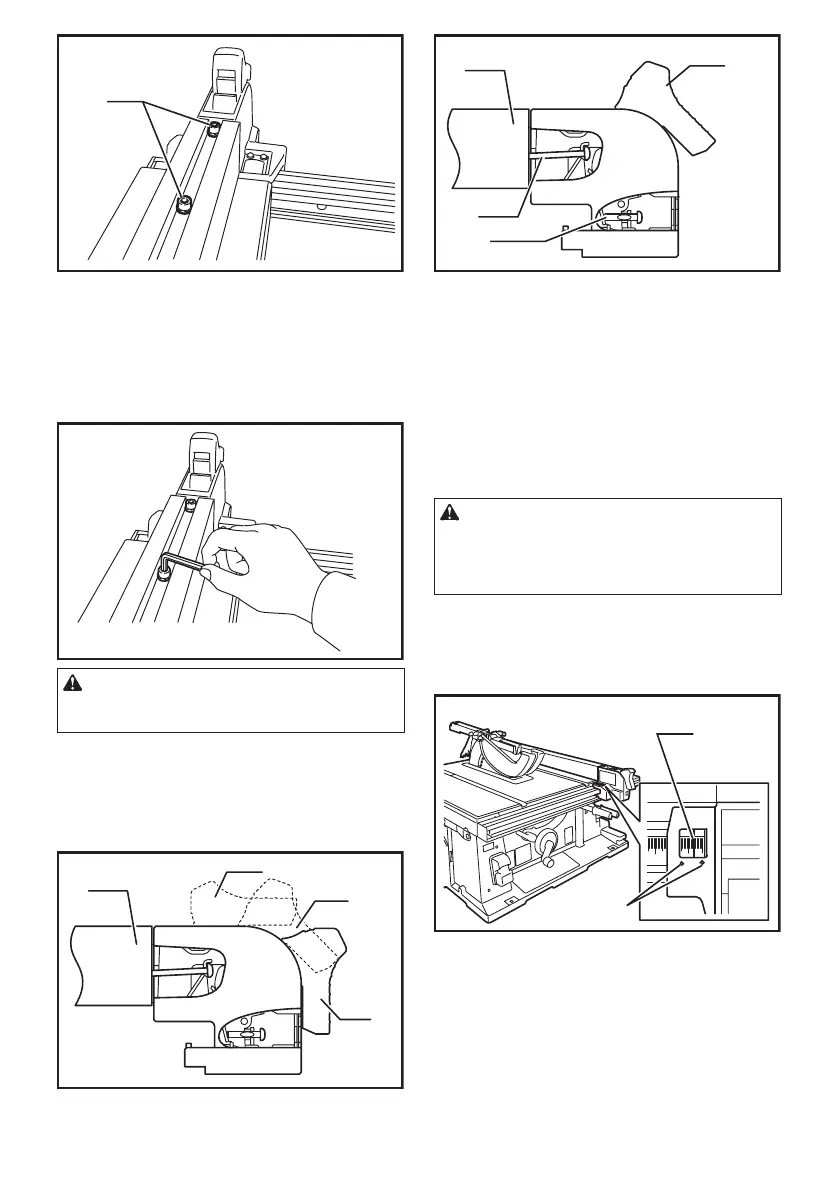

► 1. Hex bolts
1. Position the rip fence in the sliding position.
2. Loosen the two hex bolts on the rip fence with the
hex wrench provided.
3.
Adjust the rip fence until it becomes parallel with the blade.
4.
Pivot down the knob on the rip fence toward the operator.
5. Tighten the two hex bolts on the rip fence.
WARNING:
•
Be sure to adjust the rip fence so that it is parallel with
the blade, or a dangerous kickback condition may occur.
When the rip fence cannot be secured solidly, adjust it
according to the following procedure.
(1) Set the rip fence on the table and then
pivot the knob half way through its rotation.
Tighten the screw (A) until the rip fence is
immobilized. Then loosen a 1/4 to 1/2 turn.
1
2
3
4
► 1. Rip fence 2. Released position 3. Moving position
4. LOCK position
1
2
3
4
► 1. Rip fence 2. Moving position 3. Screw (B)
4. Screw (A)
(2) Tighten the screw (B) fully and then loosen
about 2 full revolutions.
(3) Lock the rip fence by fully pivoting the knob
on the fence holder (lock position).
(4) Make sure that the rip fence can be installed
and removed in the original position
(released position).
(5) Make sure that the rip fence can be slid
smoothly with no wobble when the knob is
rotated half way through its rotation.
CAUTION:
• Be careful not to tighten screws with more than
the tightening amount specied in the above
instructions. Failure to do so may damage the
fastened parts.
Bring the rip fence up ush against the side of the
blade. Make sure that the guideline on the fence holder
points to the 0 graduation. If the guideline does not
point to the 0 graduation, loosen the screw on the scale
plate and adjust the scale plate.
1
2
► 1. Guideline 2. Screws
