Makita 3600BR User Manual

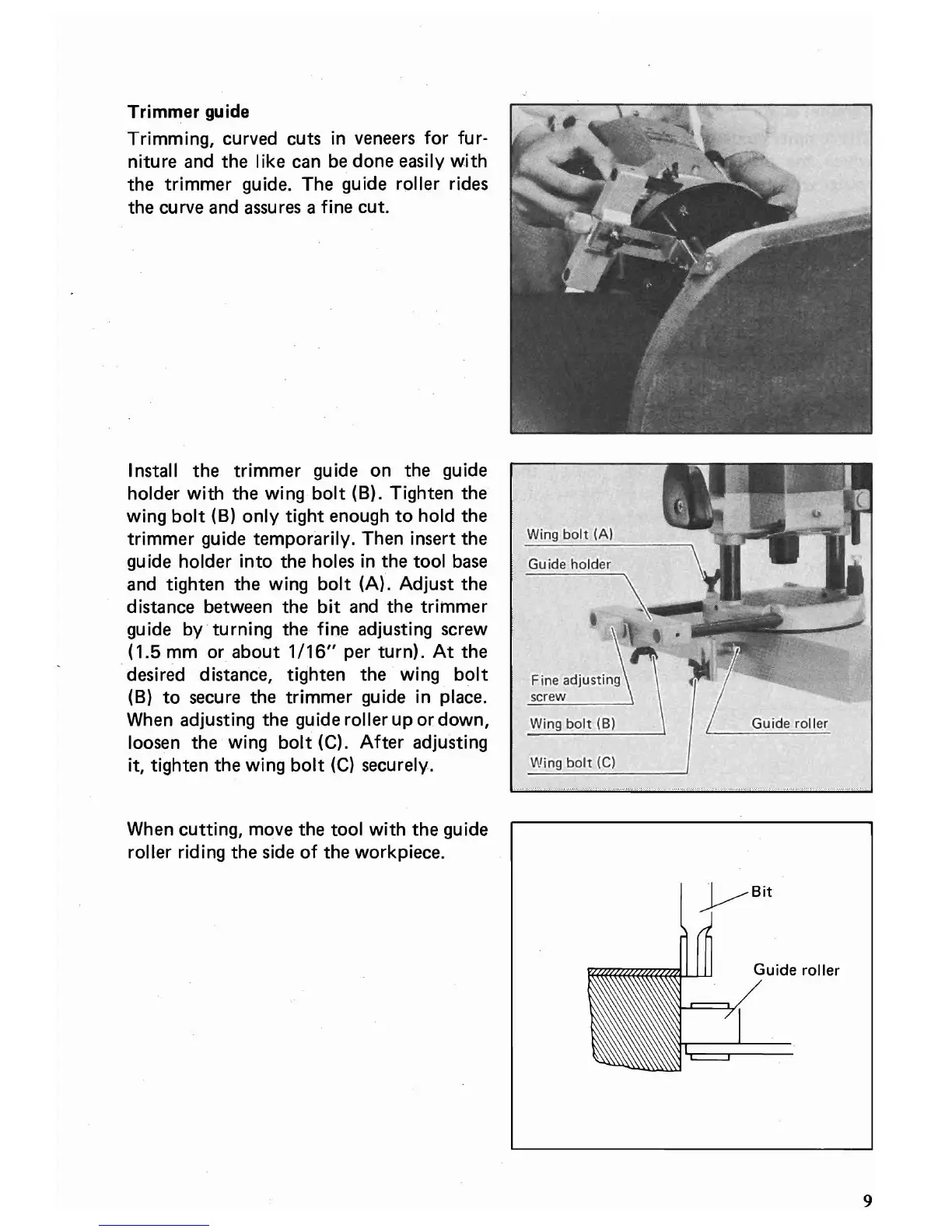

Trimmer guide
Trimming, curved cuts in
veneers for fur-
niture
and the like can be done easily with
the trimmer guide. The guide roller rides
the curve
and assures a fine cut.
Install the trimmer guide on the guide
holder
with the wing bolt (8). Tighten the
wing
bolt (8) only tight enough to hold the
trimmer guide temporarily. Then insert the
guide holder
into the holes in the tool base
and tighten the wing bolt (A). Adjust the
distance between the
bit and the trimmer
guide by turning the fine adjusting screw
(1.5 mm or about
1/16" per turn). At the
desired distance, tighten the wing
bolt
(8) to secure the trimmer guide in place.
When adjusting the guide roller up or down,
loosen the wing
bolt (C). After adjusting
it, tighten the wing
bolt (C) securely.
When cutting, move the tool with the guide
roller riding the
side of the workpiece.
Wing bolt (A)
Gu ide holder
,
Wing bolt (B)
Wing
bolt (el
Guide roller
Guide roller
9
