Makita 6922NB User Manual

4
WARNING:
DO NOT let comfort or familiarity with product
(gained from repeated use) replace strict adherence
to shear wrench safety rules for the subject product.
MISUSE or failure to follow the safety rules stated in
this instruction manual may cause serious personal
injury.
FUNCTIONAL DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function on
the tool.

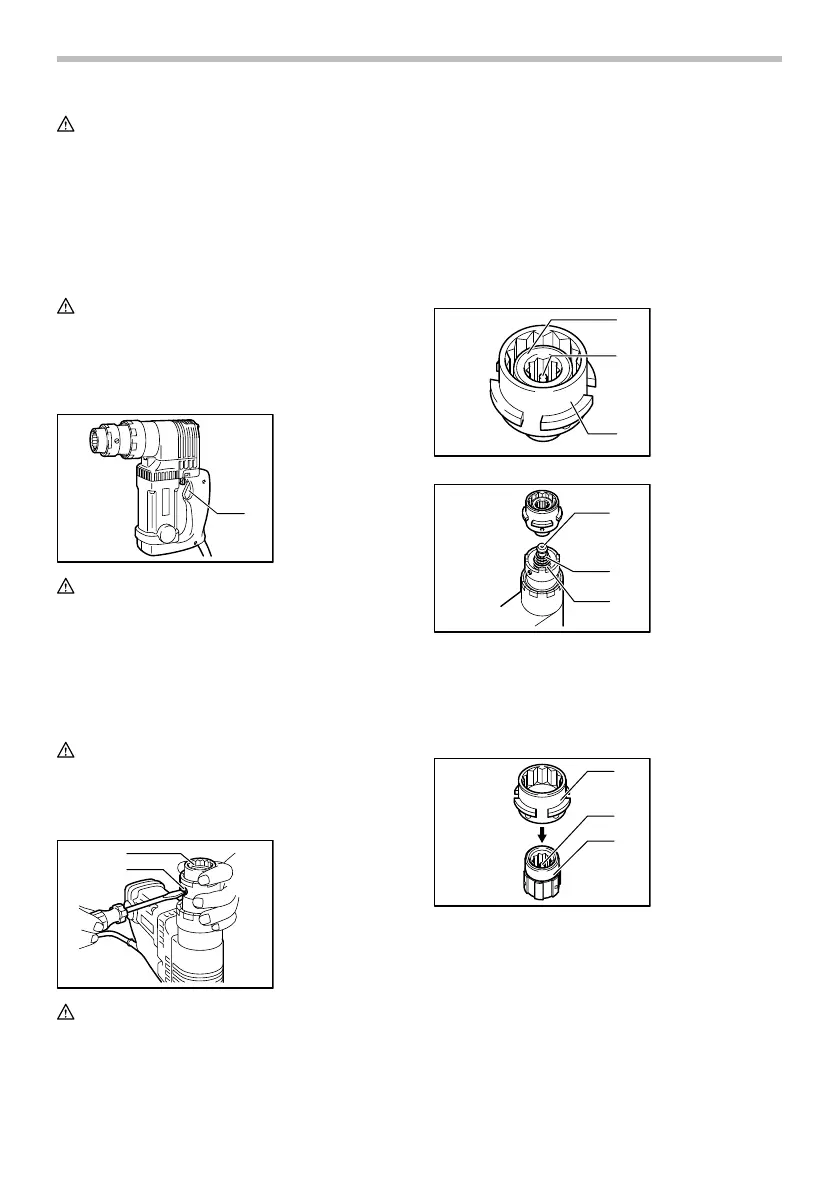

Switch action
1
004983
CAUTION:
• Before plugging in the tool, always check to see
that the switch trigger actuates properly and returns
to the "OFF" position when released.
To start the tool, simply pull the switch trigger. Release
the switch trigger to stop.
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and
unplugged before carrying out any work on the tool.
Removing the outer and inner sleeves
1
2
004984
CAUTION:
• Be careful not to allow foreign matter to enter the
insides of the tool when removing or installing the
outer and inner sleeves.
If you need, for your work, different sizes of outer sleeve
and inner sleeve from those installed on your tool,
replace the sleeves as follows.
Loosen the two screws while holding the outer sleeve.
The outer and inner sleeves will be pushed up by the
springs built into the tool.
Press the pin down to remove the inner sleeve from the
outer sleeve. Be careful not to drop the inner sleeve
when removing it. Do not remove the inner sleeve spring,
tip rod and tip rod spring from the tool.
1
2
3
004985
1
2
3
004986
Installing the outer and inner sleeves
Hold the inner sleeve with the pin facing upward. Place
the outer sleeve over the inner sleeve. Press the pin to
allow inserting the inner sleeve, then release the pin to
secure the inner sleeve.
1
2
3
004987
Insert the outer and inner sleeves into the tool while
rotating the inner sleeve alternately clockwise and
counterclockwise until there is no gap between the outer
sleeve and the tool. See the figure. Then tighten the two
screws securely.
1. Outer sleeve
2. Pin
3. Inner sleeve
1. Tip rod
2. Tip rod spring
3. Inner sleeve
spring
1. Inner sleeve
2. Pin
3. Outer sleeve
1. Outer sleeve
2. Screw
1. Switch trigger

Makita 6922NB Specifications

General

Brand	Makita
Model	6922NB
Category	Power Tool
Language	English

Summary

SPECIFICATIONS

Symbols

DOUBLE INSULATION

Explains the double insulation safety symbol and its meaning for user safety.

Intended use

Describes the specific application and purpose for which the shear wrench is designed.

Power supply

Details the required power source specifications and suitability for AC supply.

General Power Tool Safety Warnings

Work area safety

Provides guidelines for maintaining a safe and clean work environment to prevent accidents.

Electrical safety

Outlines critical precautions to prevent electric shock and ensure safe operation.

Personal safety

Emphasizes user alertness, proper protective equipment, and safe handling practices.

Power tool use and care

Offers advice on operating the tool correctly and maintaining it for safe use.

Service

Recommends professional servicing and using identical replacement parts for safety.

SHEAR WRENCH SAFETY RULES

FUNCTIONAL DESCRIPTION

Switch action

Explains how to operate the switch trigger to start and stop the tool.

ASSEMBLY

Removing the outer and inner sleeves

Details the procedure for detaching the outer and inner sleeves from the tool.

Installing the outer and inner sleeves

Guides on how to correctly attach the outer and inner sleeves to the tool.

OPERATION

Bolt installation

Step-by-step instructions for fitting the tool onto a bolt and tightening it.

MAINTENANCE

Replacing carbon brushes

Instructions for checking and replacing worn carbon brushes to maintain tool performance.

OPTIONAL ACCESSORIES
