P 2 / 8
Repair
[2] LUBRICATION
Apply Makita grease N. No.2 to the following portions designated with the black triangle to protect
parts and product from unusual abrasion.
[1] NECESSARY REPAIRING TOOLS
CAUTION: Remove the battery from the machine for safety before repair/ maintenance !

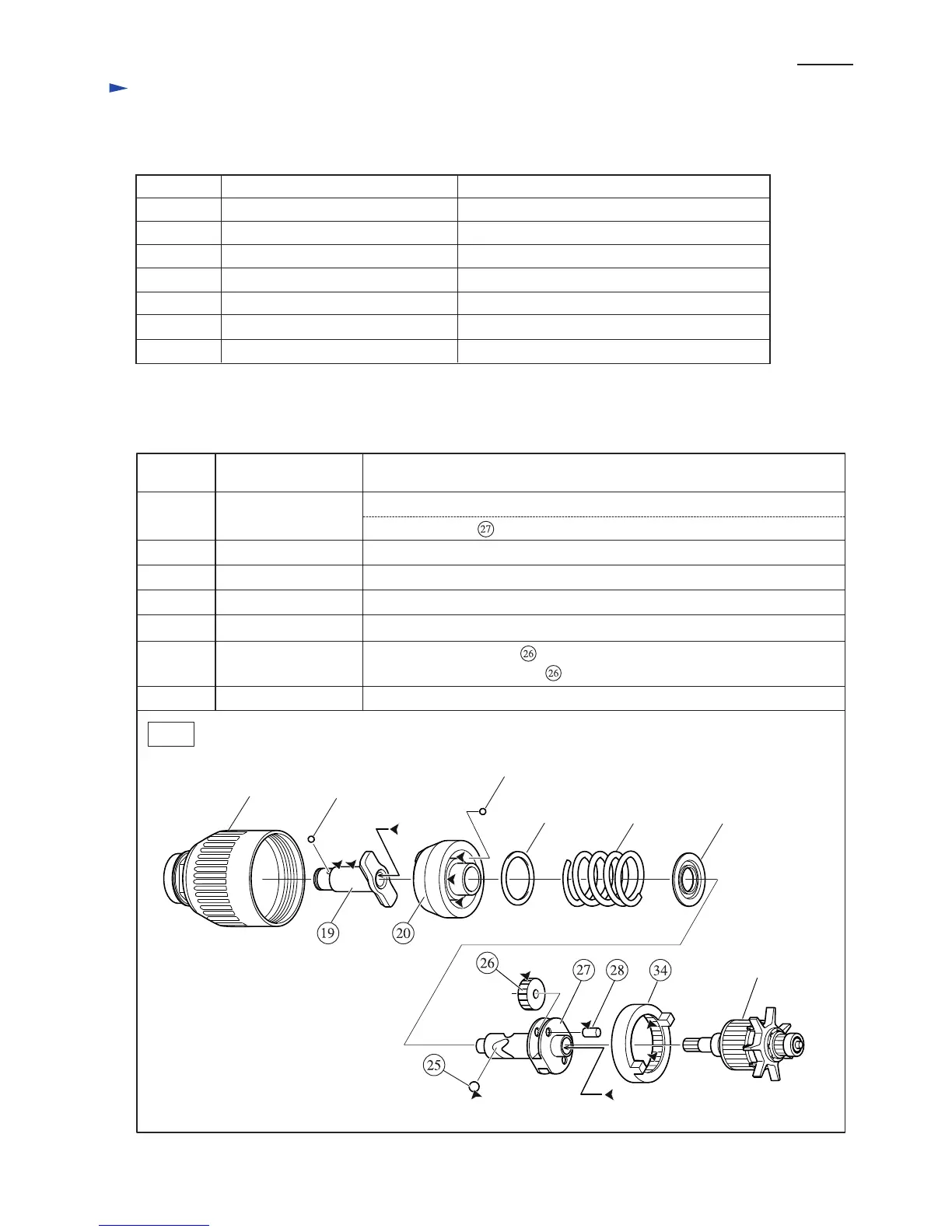

Fig. 1
Hammer case comp. Steel ball 3.5
19 Anvil M
20 Hammer Groove for twenty four 3.5 Steel balls
25 Steel ball 5.6 (2pcs) Whole surface
26 Spur gear 22 (2pcs) Teeth portion
Teeth portion
27 Spindle Insertion hole for Armature (Put 2g in the hole.)
28 Pin 5 (2pcs)
Surface that that contacts Spur Gear 22
(This pin is the gear shaft for .)
34 Internal gear 51
Surface that contacts Hammer case complete
Insertion hole for Spindle
Flat washer 24 Cup washer 14
Armature
Compression
spring 25
Code No. Description Use for
1R045 Gear extractor Disassembling the Hammer mechanism
1R288 Screwdriver magnetizer Removing Steel balls
1R291 Retaining ring S and R pliers Disassembling the Bit holder section
1R346 Center attachment Modular use with No.1R045
134847-1 Socket 30-78 Modular use with No.1R223
1R223 Torque wrench shaft 20-90 N.m Removing Hammer case complete
1R224 Ratchet head 12.7 Modular use with No.1R223
Item No. Description Portion to lubricate
Steel ball 3.5 (24pcs)
To Next Page
