P 8 / 8

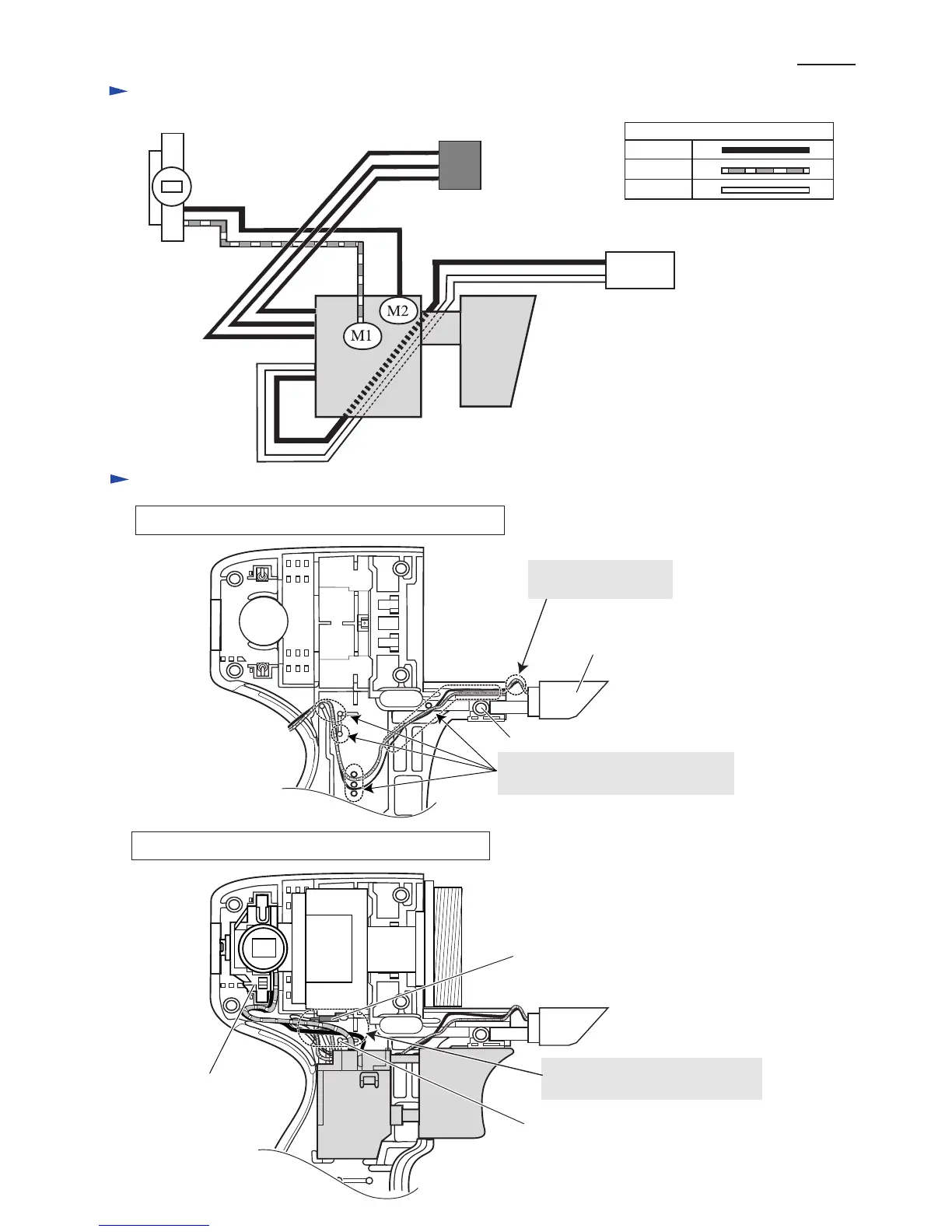

Circuit diagram
Wiring diagram
Color index of lead wires' sheath
Black
Red
White
FET
(Field Effect Transistor)
Endbell
LED circuit section
of Switch
Switch
Endbell complete
Motor
Switch
1) Before Installation of Internal Electric Parts
FET
Rib
2) After Installation of Internal Electric Parts
LED circuit section
of Switch
Put the lead wires (black, red) of LED
deep in these lead wire holders.
Boss
Place the slack of LED
lead wires here.
Route the Endbell lead wire (black)
between FET and the rib.
