7
3. Charge the battery cartridge with room
temperature at 10 ﾟ C - 40 ﾟ C (50 ﾟ F - 104 ﾟ F).
Let a hot battery cartridge cool down before
charging it.
4. Charge the Nickel Metal Hydride battery
cartridge when you do not use it for more than
six months.
FUNCTIONAL DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and the
battery cartridge is removed before adjusting or
checking function on the tool.

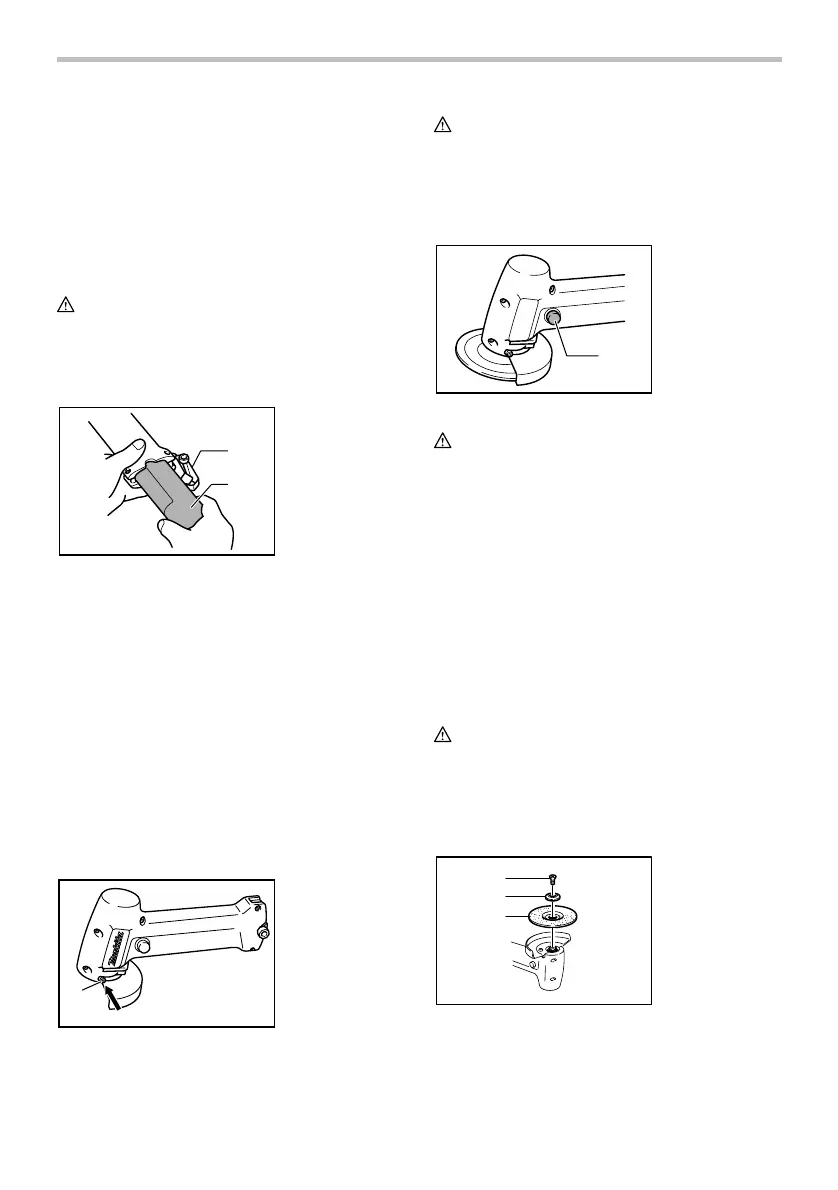

Installing or removing battery cartridge
1
2
001018
• Always switch off the tool before insertion or
removal of the battery cartridge.
• To remove the battery cartridge, pull out the set
plate on the tool and grasp both sides of the
cartridge while withdrawing it from the tool.
• To insert the battery cartridge, align the tongue on
the battery cartridge with the groove in the housing
and slip it into place. Snap the set plate back into
place. Be sure to close the set plate fully before
using the tool to prevent the battery cartridge from
accidentally falling out of the tool.
• Do not use force when inserting the battery
cartridge. If the cartridge does not slide in easily, it
is not being inserted correctly.
Shaft lock
1
001030
CAUTION:
• Never actuate the shaft lock when the spindle is
moving. The tool may be damaged.
Press the shaft lock to prevent spindle rotation when
installing or removing accessories.
Switch action
1
001044
CAUTION:
• Before inserting the battery cartridge into the tool,
always check to see that the switch button
actuates properly.
• Switch can be locked in "ON" position for ease of
operator comfort during extended use. Apply
caution when locking tool in "ON" position and
maintain firm grasp on tool.
To start the tool, simply press the switch button. Release
the switch button to stop. For continuous operation,
press the switch button fully, then release it. To stop the
tool from the locked position, press the switch button
fully again, then release it.
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and the
battery cartridge is removed before carrying out
any work on the tool.
Installing or removing depressed center
wheel
1
2
3
005231
1. Screw
2. Outer flange
3. Depressed
center wheel
1. Switch button
1. Shaft lock
1. Set plate
2. Battery
cartridge
