11 ENGLISH

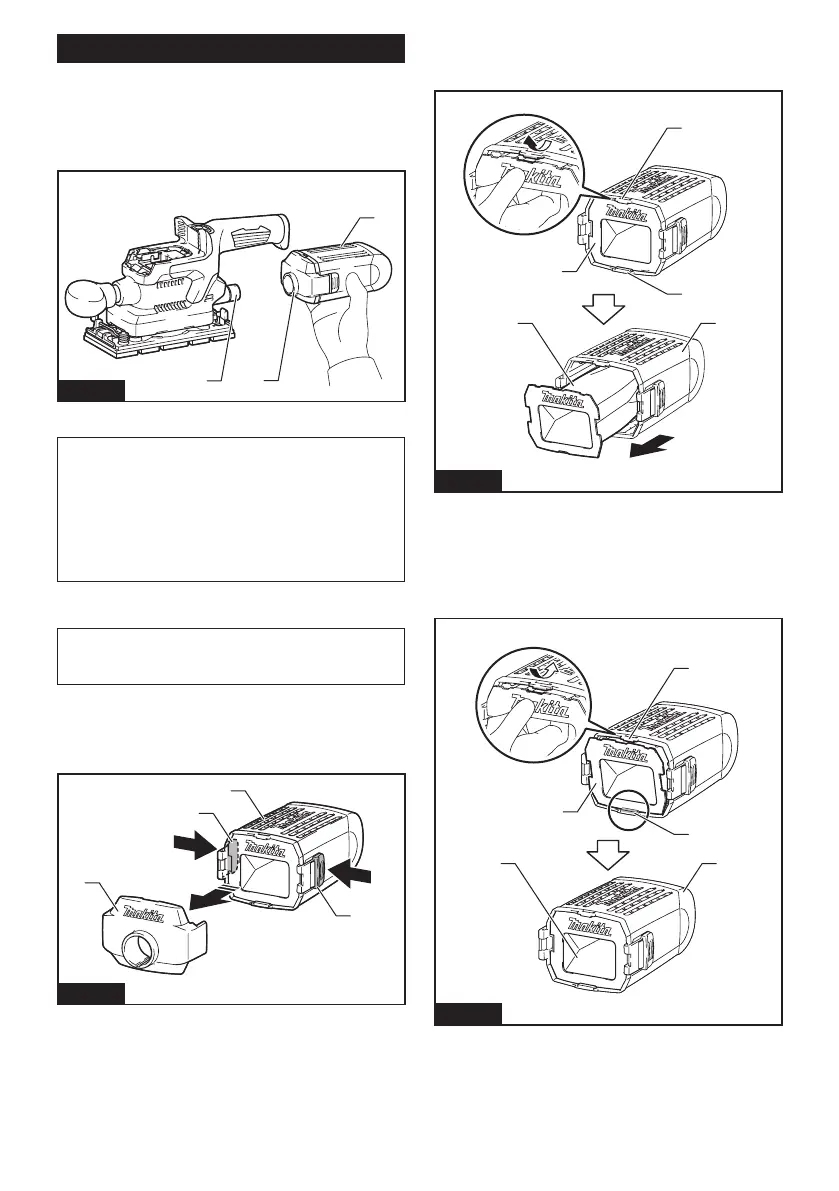

Installing and removing dust box
Optional accessory
Attach the dust box over the tapered dust spout at the
back end of the motor housing. Put the dust nozzle onto
the dust spout as far as it will go to avoid it from coming
o during operation.
1
2
3
Fig.15
► 1. Dust spout 2. Dust nozzle 3. Dust box
NOTE: To ensure optimal dust collecting, empty the
dust box when it becomes lled to approximately half
of its capacity.
1. Remove the dust box from the tool.
2. Detach the dust nozzle from the box while
pressing and holding the locking latches on both
sides of the box.
3. Gently shake or tap the dust box to empty.
Replacing lter
NOTICE: Be aware to align the logos on all the
dust box, lter and dust nozzle in a consistent
orientation when reassembling components.
1. Remove the dust box from the tool.
2. Detach the dust nozzle from the box while press-
ing and holding the locking latches on both sides of the
box.
1
2
3
3
Fig.16
► 1. Dust nozzle 2. Dust box 3. Locking latch
3. Hold the inner top edge of the cardboard opening,
and pull it o downwards to disengage the outer top
edge of the cardboard opening from the upper hooking
tab on the lip of the dust box.
4. Take the lter out of the dust box while pulling the
outer bottom edge of the cardboard opening free from
the lower hooking tab.
1
5
2
3
4
Fig.17
► 1. Filter 2. Cardboard opening 3. Upper hooking tab
4. Lower hooking tab 5. Dust box
5. Replace a lter by engaging the bottom edge of
the cardboard opening in the lower hooking tab and
push the top edge inwards until it clips into the upper
hooking tab .
1
5
2
3
4
Fig.18
► 1. Filter 2. Cardboard opening 3. Upper hooking tab
4. Lower hooking tab 5. Dust box
