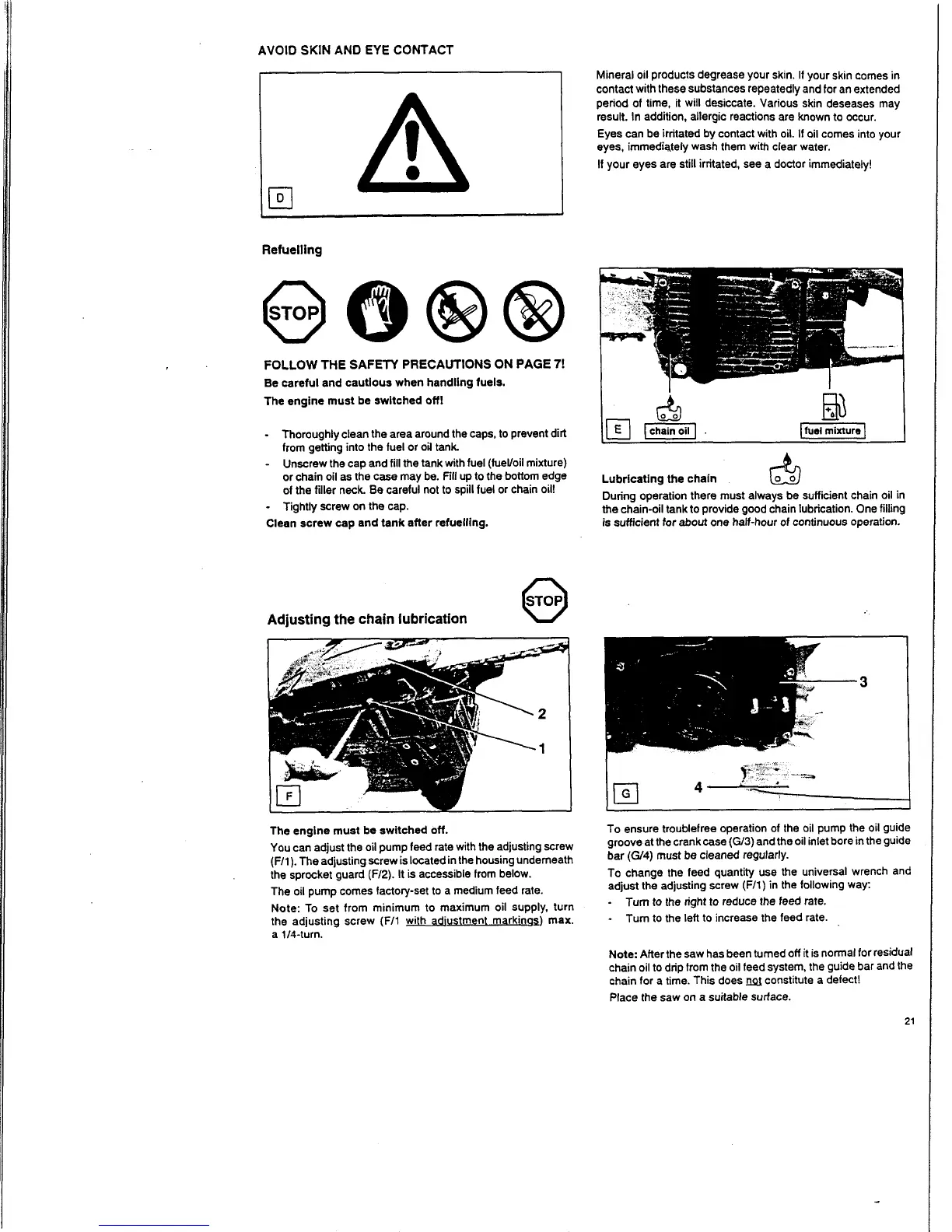

AVOID
SKIN
AND
EYE
CONTACT
Refuelling
FOLLOW
THE
SAFETY
PRECAUTIONS ON PAGE
7!
Be careful and cautious when handling fuels.
The engine must be switched
off1
-
Thoroughly clean the area around the caps,
to
prevent dirt
from getting into the fuel or
08
tank.
Unscrew the cap and
fill
the tank with fuel (fueVoil mixture)
or chain oil as the case may be. Fill up to the bottom edge
of the filler neck. Be careful not
to
spill fuel or chain oil!
Tightly screw on the cap.
-
-
Clean screw cap and tank after refuelling.
Mineral oil products degrease your skin.
If
your skin comes in
contact
with
these substances repeatedly and for an extended
period of time, it
will
desiccate. Various skin deseases may
result.
In
addition, allergic reactions are known
to
occur.
Eyes can be irritated by contact with oil.
If
oil comes into your
eyes, immediately wash them with clear water.
If
your eyes are still irritated, see a doctor immediately!
Lubricating the chain
During operation there must always be sufficient chain oil in
the chain-oil tank
to
provide good chain lubrication. One filling
is sufficient for
about
one half-hour
of
continuous operation.
Adjusting the chain lubrication
W
The engine must be switched
off.
You can adjust the oil pump feed rate with the adjusting screw
(F/l). The adjusting screw is located in the housing underneath
the sprocket guard (F/2). It is accessible from below.
The oil pump comes factory-set
to
a medium feed rate.
Note: To set from minimum
to
maximum oil supply, turn
the adjusting screw
(FI1
with adjustment markings) max.
a l/4-turn.
To ensure troublefree operation of the oil pump the oil guide
groove at the crankcase
(W3)
and the oil inlet bore in the guide
bar
(W4)
must be cleaned regularly.
To change the feed quantity use the universal wrench and
adjust the adjusting screw (F/1) in the following way:
-
-
Turn
to
the right
to
reduce the feed rate.
Tum
to
the left
to
increase the feed rate.
Note: After the saw has been turned
off
it
is normal for residual
chain oil
to
drip from the oil feed system, the guide bar and the
chain for a time. This does
Place the saw on a suitable surface.
constitute a defect!
21
