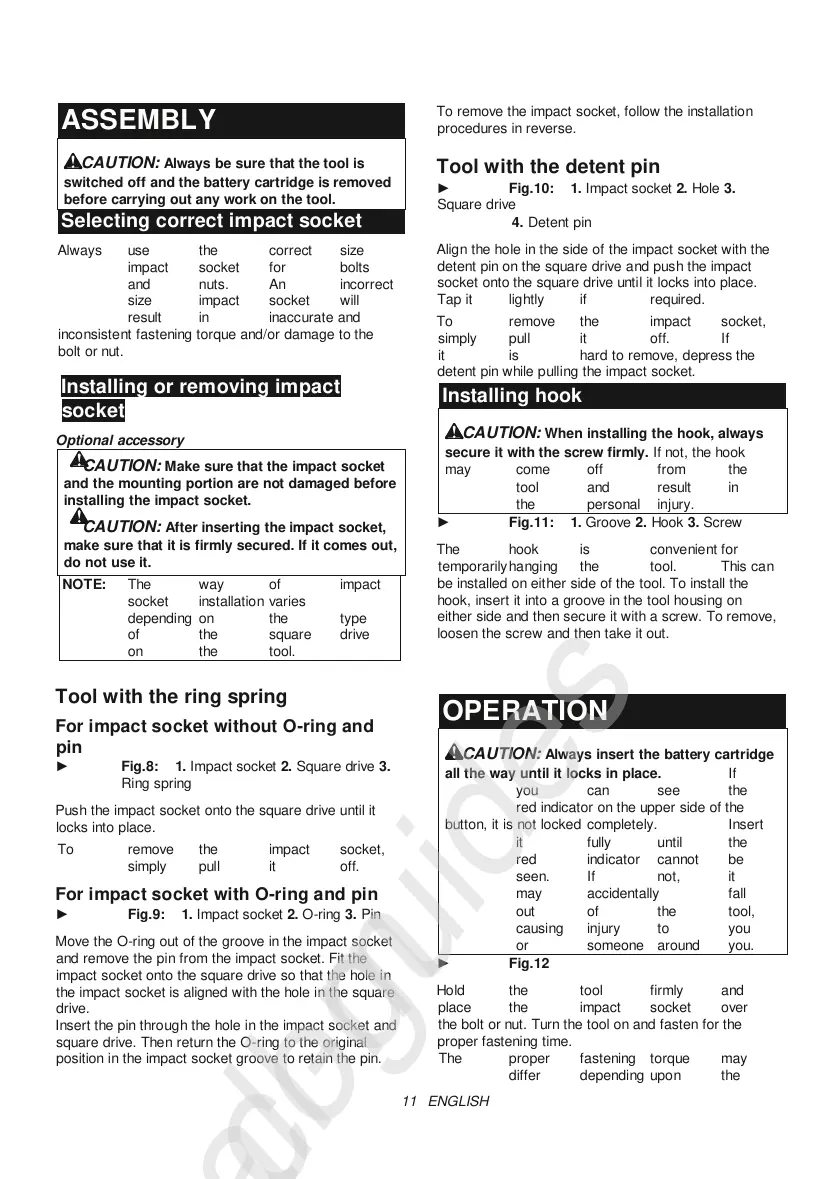

CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before carrying out any work on the tool.
Selecting correct impact socket
Always use the correct size
impact socket for bolts
and nuts. An incorrect
size impact socket will
result in inaccurate and
inconsistent fastening torque and/or damage to the
bolt or nut.
Installing or removing impact
socket
Optional accessory
CAUTION: Make sure that the impact socket
and the mounting portion are not damaged before
installing the impact socket.
CAUTION: After inserting the impact socket,
make sure that it is firmly secured. If it comes out,
do not use it.
NOTE: The way of impact
socket installation varies
depending on the type
of the square drive
on the tool.
Tool with the ring spring
For impact socket without O-ring and
pin
► Fig.8: 1. Impact socket 2. Square drive 3.
Ring spring
Push the impact socket onto the square drive until it
locks into place.
To remove the impact socket,
simply pull it off.
For impact socket with O-ring and pin
► Fig.9: 1. Impact socket 2. O-ring 3. Pin
Move the O-ring out of the groove in the impact socket
and remove the pin from the impact socket. Fit the
impact socket onto the square drive so that the hole in
the impact socket is aligned with the hole in the square
drive.
Insert the pin through the hole in the impact socket and
square drive. Then return the O-ring to the original
position in the impact socket groove to retain the pin.
To remove the impact socket, follow the installation
procedures in reverse.
Tool with the detent pin
► Fig.10: 1. Impact socket 2. Hole 3.
Square drive
4. Detent pin
Align the hole in the side of the impact socket with the
detent pin on the square drive and push the impact
socket onto the square drive until it locks into place.
Tap it lightly if required.
To remove the impact socket,
simply pull it off. If
it is hard to remove, depress the
detent pin while pulling the impact socket.
Installing hook
CAUTION: When installing the hook, always
secure it with the screw firmly. If not, the hook
may come off from the
tool and result in
the personal injury.
► Fig.11: 1. Groove 2. Hook 3. Screw
The hook is convenient for
temporarily hanging the tool. This can
be installed on either side of the tool. To install the
hook, insert it into a groove in the tool housing on
either side and then secure it with a screw. To remove,
loosen the screw and then take it out.
OPERATION
CAUTION: Always insert the battery cartridge
all the way until it locks in place. If
you can see the
red indicator on the upper side of the
button, it is not locked completely. Insert
it fully until the
red indicator cannot be
seen. If not, it
may accidentally fall
out of the tool,
causing injury to you
or someone around you.
► Fig.12
Hold the tool firmly and
place the impact socket over
the bolt or nut. Turn the tool on and fasten for the
proper fastening time.
The proper fastening torque may
differ depending upon the
