10 ENGLISH
1
3
2

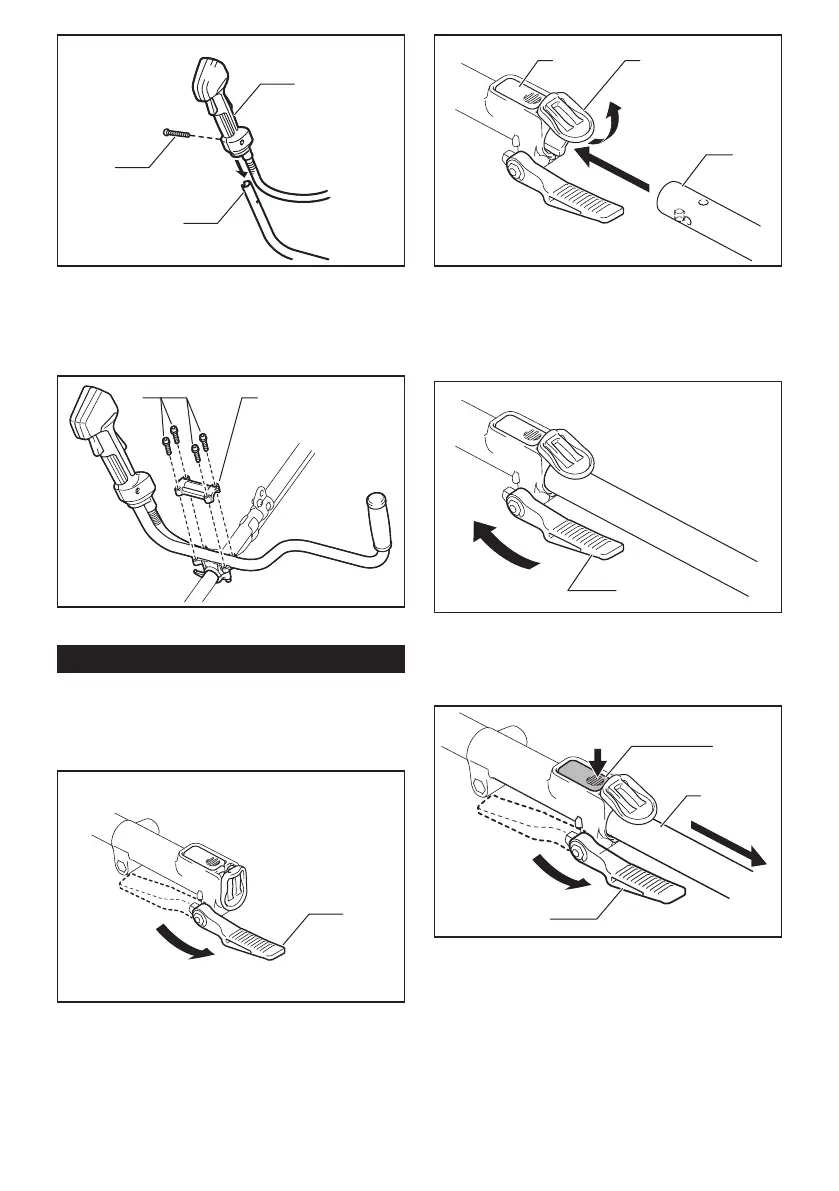

►1. Grip 2.Screw3. Handle
2. Place handle between handle clamp and handle
holder.Adjustthehandletoananglethatprovidesa
comfortable working position and then secure with hex
socket head bolts.
1
2
►1. Hex socket head bolt 2. Handle clamp
Mounting the attachment pipe
For DUR188U and DUR188L only
Mounttheattachmentpipetothepowerunit.
1. Turn the lever to the direction of the arrow shown
inthegure.
1
►1. Lever
2. Pullupthejointcoverandinserttheattachment
pipe while aligning the protrusion on the pipe (cutting
toolside)withtheconcaveportionofthejointpart.
2
1
3
►1. Lock lever 2. Joint cover 3. Pipe
Makesurethatthesurfaceofthelockleverisparallel
to the pipe.
3. Turn the lever to the direction of the arrow shown
inthegure.
1
►1. Lever
To remove the pipe, turn the lever to the direction of the
arrowshowninthegureandpullthepipeoutwhile
pressing down the lock lever.
1
2
3
►1. Lever 2. Lock lever 3. Pipe

Makita DUR188L Specifications

General

Brand	Makita
Model	DUR188L
Category	Trimmer
Language	English
