17 ENGLISH
1
2
3
4
5
6

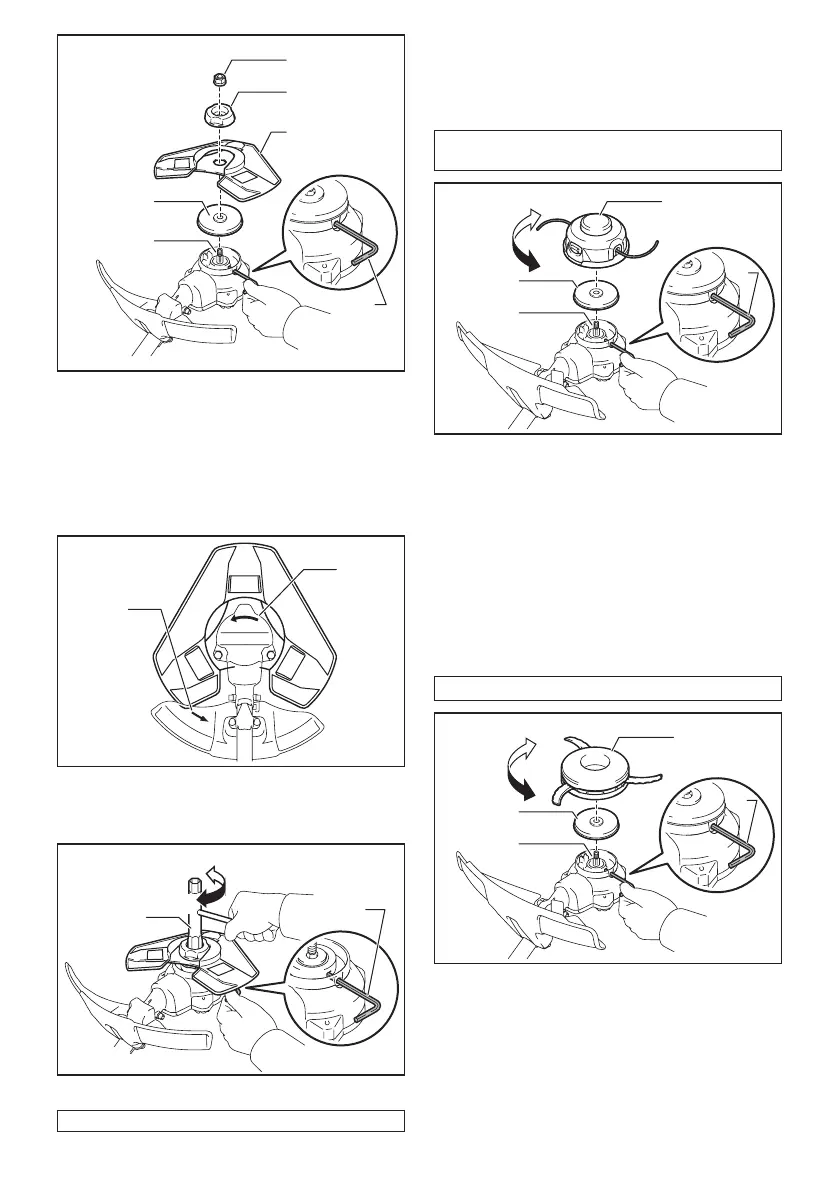

►1. Nut 2. Clamp washer 3. Cutter blade 4. Receive
washer 5. Spindle 6. Hex wrench
1. Insert the hex wrench through the hole in the tool
head to lock the shaft. Rotate the shaft until the hex
wrench is fully inserted.
2. Mount the cutter blade onto the receive washer so
that the arrows on the blade and protector are pointing
in the same direction.
1
1
►1. Arrow
3. Put the clamp washer onto the cutter blade and
then tighten the nut securely by the box wrench.
2
1
3
4
►1. Hex wrench 2. Box wrench 3. Tighten 4. Loosen
NOTE: Tightening torque : 16 - 23 N•m
4. Remove the hex wrench from the tool head.
To remove the cutter blade, follow the installation proce-
dures in reverse.
Nylon cutting head
NOTICE: Be sure to use genuine Makita nylon
cutting head.
1
2
3
4
6
5
►1. Nylon cutting head 2. Receive washer 3. Spindle
4. Hex wrench 5. Tighten 6. Loosen
1. Insert the hex wrench through the hole in the tool
head to lock the shaft. Rotate the shaft until the hex
wrench is fully inserted.
2. Place the nylon cutting head onto the spindle and
tighten it securely by hand.
3. Remove the hex wrench from the tool head.
To remove the nylon cutting head, follow the installation
procedures in reverse.
Plastic blade
NOTICE:
Be sure to use genuine Makita plastic blade.
1
2
3
4
6
5
►1. Plastic blade 2. Receive washer 3. Spindle
4. Hex wrench 5. Tighten 6. Loosen
1. Insert the hex wrench through the hole in the tool
head to lock the shaft. Rotate the shaft until the hex
wrench is fully inserted.
2. Place the plastic blade onto the spindle and
tighten it securely by hand.
3. Remove the hex wrench from the tool head.
