Makita EK7300 Operator's And Safety Manual

15

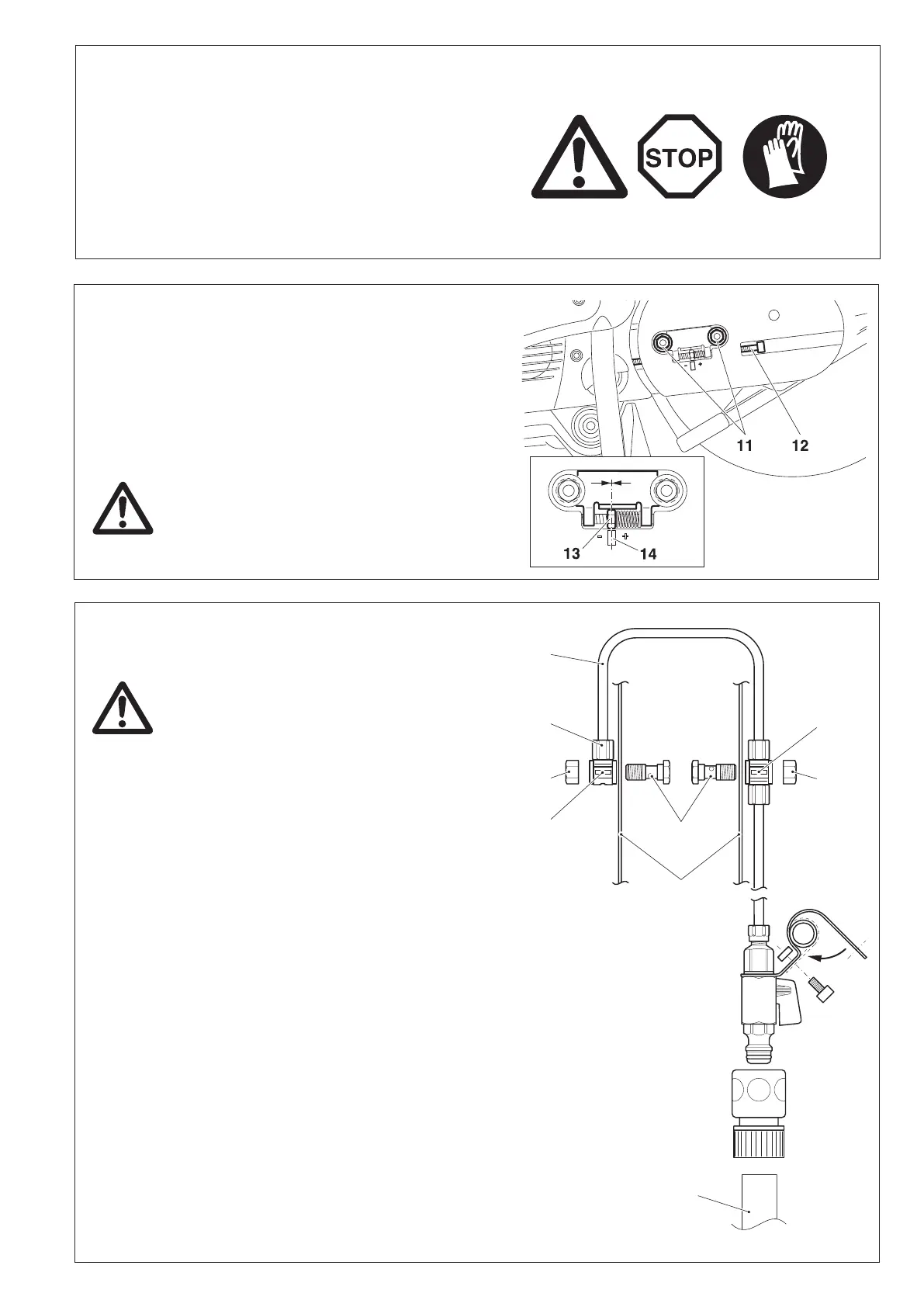

NOTE: The two fastening nuts (11) must be loosened before
tightening the V-belt or checking the tension.
To increase the belt tension, turn the tightening screw (12) to
the right (clockwise) with the combination wrench included with
the Power Cut.
The belt tension is correctly adjusted when the nut (13) is cen-
tred on the mark (14).
IMPORTANT:
After tightening/inspection, make certain to tighten
the fastening nuts (11) (30 ± 2 Nm).
Tightening the V-belt /
Checking V-belt tension
IMPORTANT:
Exact V-belt tension is essential for maximum cutting per
-
formance with minimum fuel consumption. Improper V-belt
tension will result in premature wear to the V-belt and V-belt
wheel or damage to the clutch bearing.
If the Power Cut is new or the V-belt has been replaced,
retighten the V-belt after the rst hour of operation!
15
16
18 *
17
19
21
21
17
20
Installing the pressure water system
Not in the general scope of delivery. Country-specic!
CAUTION: Before doing any work on the Power
Cut, always switch off the engine and disconnect
the spark plug cap!
NOTE: When using a protective hood for a maximum disk diam-
eter of 300 mm (12"), always shorten hose (15) to 180 mm (7").
To do this unscrew sleeve (16) and carefully pull tube (15) off
coupling (17) and cut to 180 mm. Then push the tube end back
over the coupling and tighten the sleeve all the way.
- Install the water connection as shown in gure. Push clamp
(22) around the front grip (23) and fasten with the bolt and
square nut.
- Pull the quick-release coupling (
24) from the water connection
and connect it to the 1/2" supply line (18).
- Remove the cutting disk (see operator’s manual).
- Tube routing with the cutting assembly in the middle position,
see gure.
- Tube routing with the cutting assembly in the outside position,
see gure.
- Insert the nozzles (
19) through the protective hood (20) from
the inside and put on couplings (17). Screw on and tighten
the coupling caps (21).
IMPORTANT:
To avoid bending the tubes, be sure to position the couplings (17)
in accordance with gures as appropriate.
- Install the cutting disc (see operator’s manual).
- Connect the quick-release coupling (
24) to the supply tube.
NOTE:
The water ow rate can be precisely adjusted with valve (25).
