6
26. Do not use separate reducing bushings or
adaptors to adapt large hole abrasive wheels.
27. Use only flanges specified for this tool.
28. For tools intended to be fitted with threaded
hole wheel, ensure that the thread in the wheel
is long enough to accept the spindle length.
29. Check that the workpiece is properly
supported.
30. Pay attention that the wheel continues to
rotate after the tool is switched off.
31. If working place is extremely hot and humid, or
badly polluted by conductive dust, use a
short-circuit breaker (30 mA) to assure
operator safety.
32. Do not use the tool on any materials
containing asbestos.
33. When use cut-off wheel, always work with the
dust collecting wheel guard required by
domestic regulation.
34. Cutting discs must not be subjected to any
lateral pressure.
35. Do not use cloth work gloves during operation.
Fibers from cloth gloves may enter the tool, which
causes tool breakage.
SAVE THESE INSTRUCTIONS.
WARNING:
DO NOT let comfort or familiarity with product
(gained from repeated use) replace strict adherence
to safety rules for the subject product. MISUSE or
failure to follow the safety rules stated in this
instruction manual may cause serious personal
injury.
USD292-3

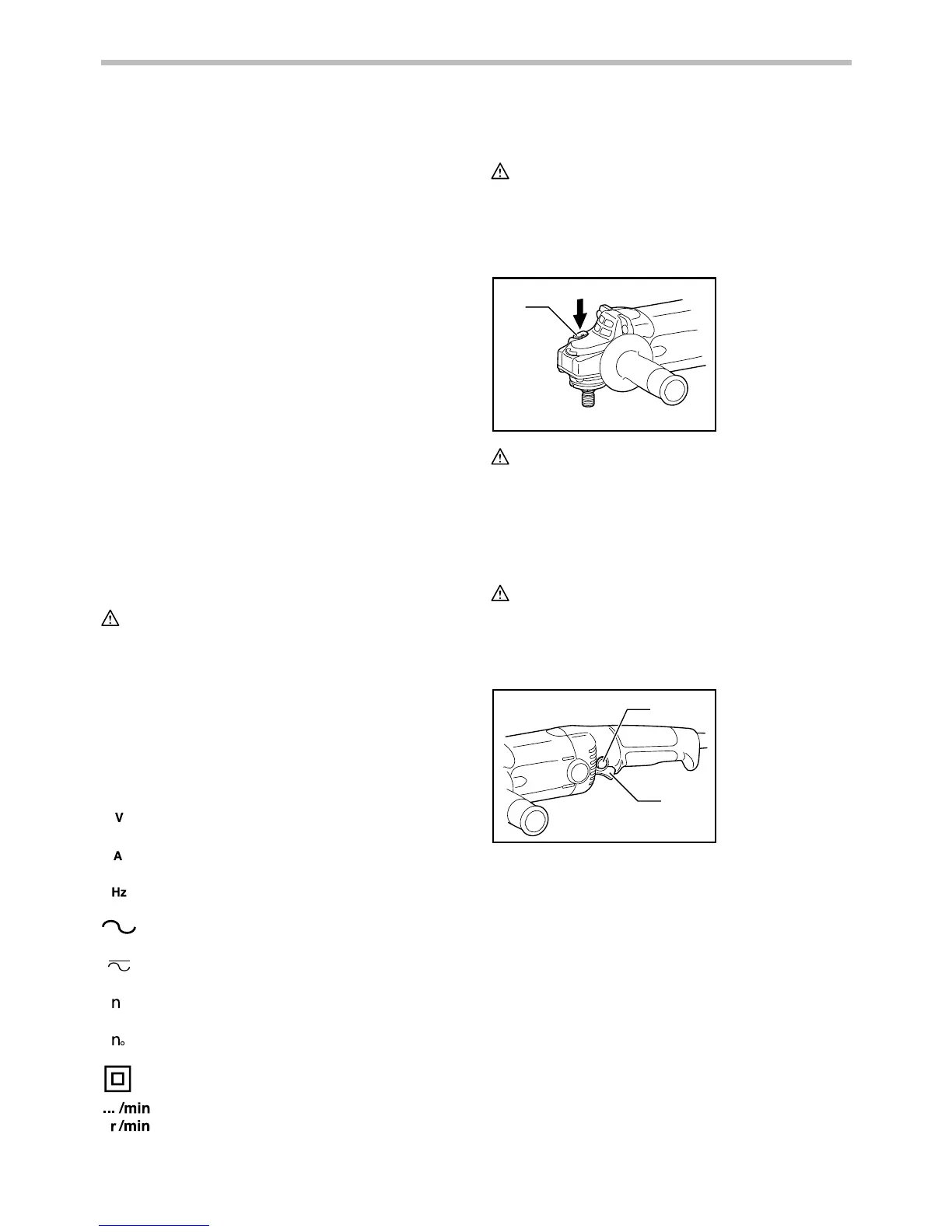

Symbols
The followings show the symbols used for tool.
･ volts
･ amperes
･ hertz
･ alternating current
･ alternating or direct current
･ rated speed
･ no load speed
･ Class II Construction
･ revolutions or reciprocation per minute
FUNCTIONAL DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function on
the tool.
Shaft lock
1
007991
CAUTION:
• Never actuate the shaft lock when the spindle is
moving. The tool may be damaged.
Press the shaft lock to prevent spindle rotation when
installing or removing accessories.
Switch action
CAUTION:
• Before plugging in the tool, always check to see
that the switch trigger actuates properly and
returns to the "OFF" position when released.
For tool with type A switch trigger
1
2
007992
For tool without lock button and lock-off button
To start the tool, simply pull the switch trigger. Release
the switch trigger to stop.
For tool with lock button
To start the tool, simply pull the switch trigger. Release
the switch trigger to stop.
For continuous operation, pull the switch trigger and
then push in the lock button.
To stop the tool from the locked position, pull the switch
trigger fully, then release it.
For tool with lock-off button
To prevent the switch trigger from being accidentally
pulled, a lock-off button is provided.
To start the tool, depress the lock-off button and pull the
switch trigger. Release the switch trigger to stop.
1. Lock button /
Lock-off button
2. Switch trigger
(typeA)
1. Shaft lock
