8

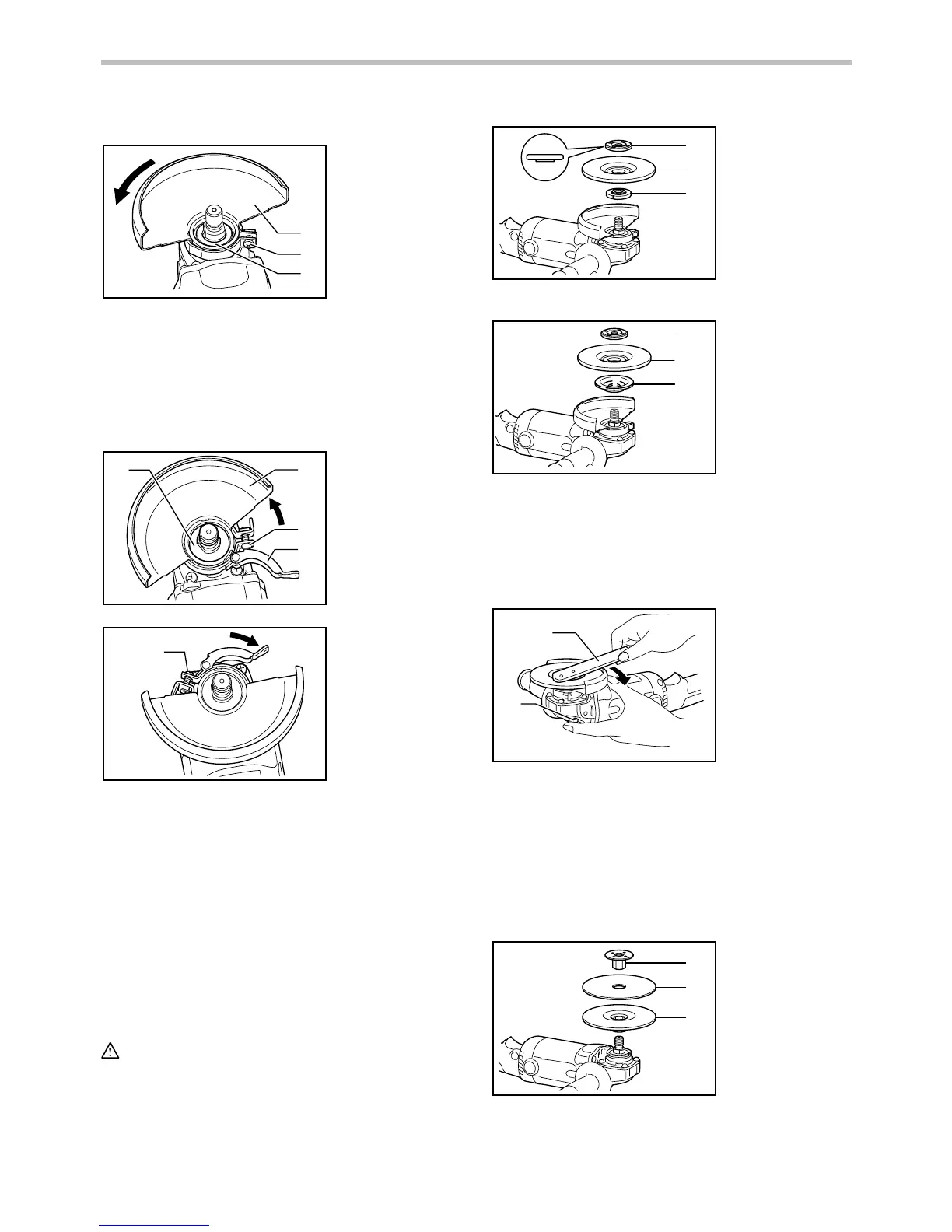

For tool with locking screw type wheel guard
1
2
3
007994
Mount the wheel guard with the protrusion on the wheel
guard band aligned with the notch on the bearing box.
Then rotate the wheel guard around 180 degrees
counterclockwise. Be sure to tighten the screw securely.
To remove wheel guard, follow the installation procedure
in reverse.
For tool with clamp lever type wheel guard
1
2
3
4
008343
1
008344
Loosen the lever on the wheel guard after loosening the
screw. Mount the wheel guard with the protrusion on the
wheel guard band aligned with the notch on the bearing
box. Then rotate the wheel guard around to the position
shown in the figure. Tighten the lever to fasten the wheel
guard. If the lever is too tight or too loose to fasten the
wheel guard, loosen or tighten the screw to adjust the
tightening of the wheel guard band.
To remove wheel guard, follow the installation procedure
in reverse.
Installing or removing depressed center
grinding wheel/Multi-disc (accessory)
WARNING:
• Always use supplied guard when depressed center
grinding wheel/Multi-disc is on tool. Wheel can
shatter during use and guard helps to reduce
chances of personal injury.
1
2
3
007995
For USA/Canada 6" Grinders
1
2
3
008053
Mount the inner flange onto the spindle. Fit the
wheel/disc on the inner flange and screw the lock nut
onto the spindle.
To tighten the lock nut, press the shaft lock firmly so that
the spindle cannot revolve, then use the lock nut wrench
and securely tighten clockwise.
1
2
007996
To remove the wheel, follow the installation procedure in
reverse.
Installing or removing abrasive disc
(optional accessory)
NOTE:
• Use sander accessories specified in this manual.
These must be purchased separately.
1
2
3
007997
1. Bearing box
2. Wheel guard
3. Screw
4. Lever
1. Screw
1. Lock nut
2. Abrasive disc
3. Rubber pad
1. Lock nut
wrench
2. Shaft lock
1. Lock nut
2. Depressed
center grinding
wheel/Multi-disc
3. Inner flange
1. Lock nut
2. Depressed
center grinding
wheel/Multi-disc
3. Inner flange
1. Wheel guard
2. Screw
3. Bearing box
