Makita HM1317C User Manual

7
For Model HM1307CB,HM1317CB only
1
2
002928

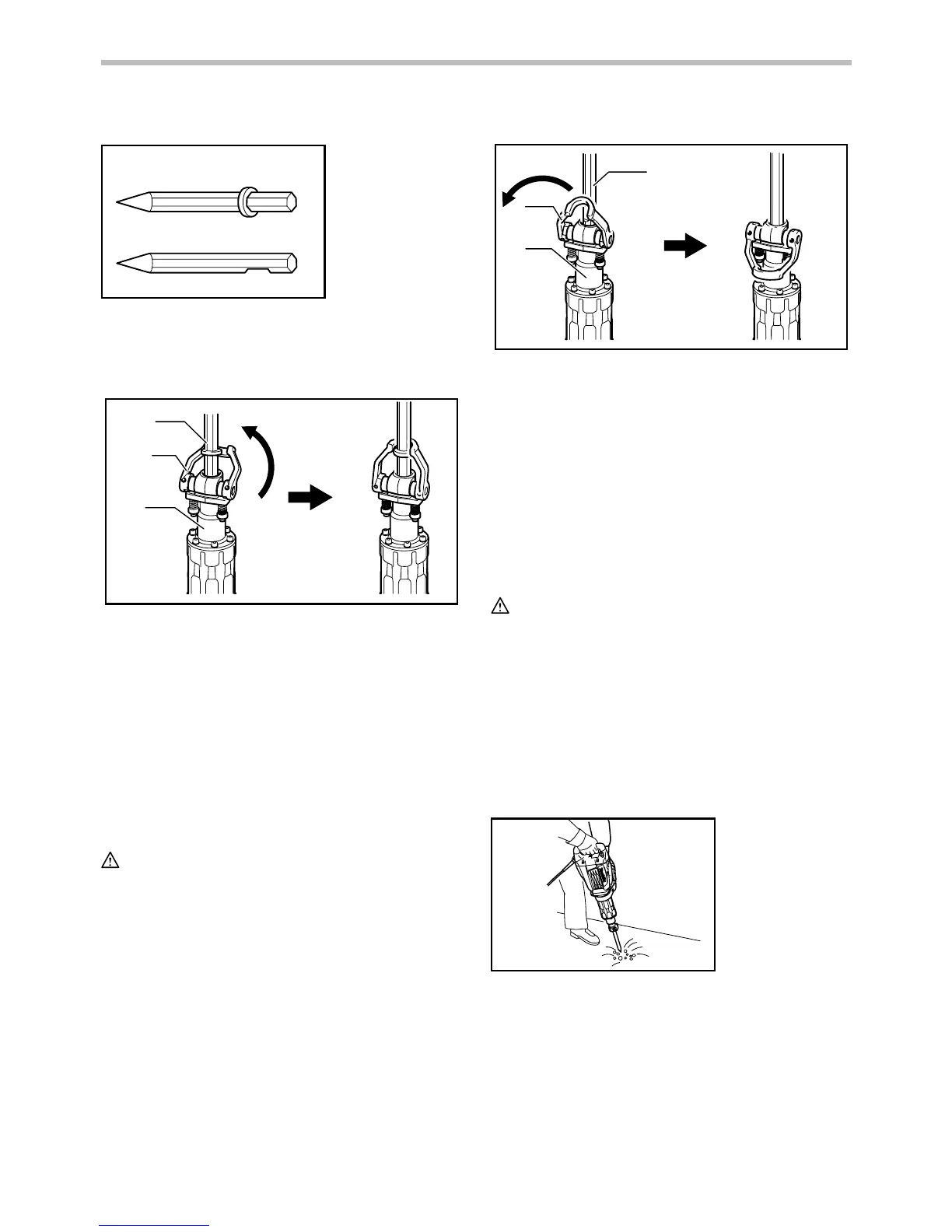

This tool accepts bits either with or without a collar on its
shank.
(1) For bits with a collar
1
2
3
4
5
010293
To install the bit, follow either procedure (1) or (2)
described below.
Pivot the tool retainer back and slightly downward.
Insert the bit into the tool holder as far as it will go.
To securely retain the bit, return the tool retainer to
its original position.
CAUTION:
• Always assure that the bit is securely retained by
attempting to pull the bit out of the tool holder after
completing the above procedure.
(2) For bits without a collar
1
2
3
4
5
010294
Pivot the tool retainer forward and slightly
downward. With the notched portion of the bit
facing the tool retainer shaft, insert the bit into the
tool holder as far as it will go. Then pivot the tool
retainer further downward toward the barrel to
securely retain the bit.
CAUTION:
• Always assure that the bit is securely retained by
attempting to pull the bit out of the tool holder after
completing the above procedure.
• The bit without a collar cannot be retained by the
method shown in Fig.(1).
To remove the bit, follow the installation procedure in
reverse.
OPERATION
Chipping/Scaling/Demolition
010288
Always use the side grip (auxiliary handle) and firmly
hold the tool by both side grip and switch handle during
operations. Turn the tool on and apply slight pressure on
the tool so that the tool will not bounce around,
uncontrolled. Pressing very hard on the tool will not
increase the efficiency.
1. Bit
2. Tool retainer
3. Tool holder
4. When the bit is inserted
5. When the bit is retained
1. Bit
2. Tool retainer
3. Tool holder
4. When the bit is inserted
5. When the bit is retained
1. Bit with collar
2. Bit without collar

Makita HM1317C Specifications

General

Input power	1510 W
Impact energy (max)	25 J
Vibration level (chiseling)	8.5 m/s²
Toolholder	30 mm
Impact rate	1450 bpm
Product color	Black, Blue

Weight and Dimensions

Depth	129 mm
Width	715 mm
Height	266 mm
Weight	17000 g
