Makita HM1317C User Manual

8

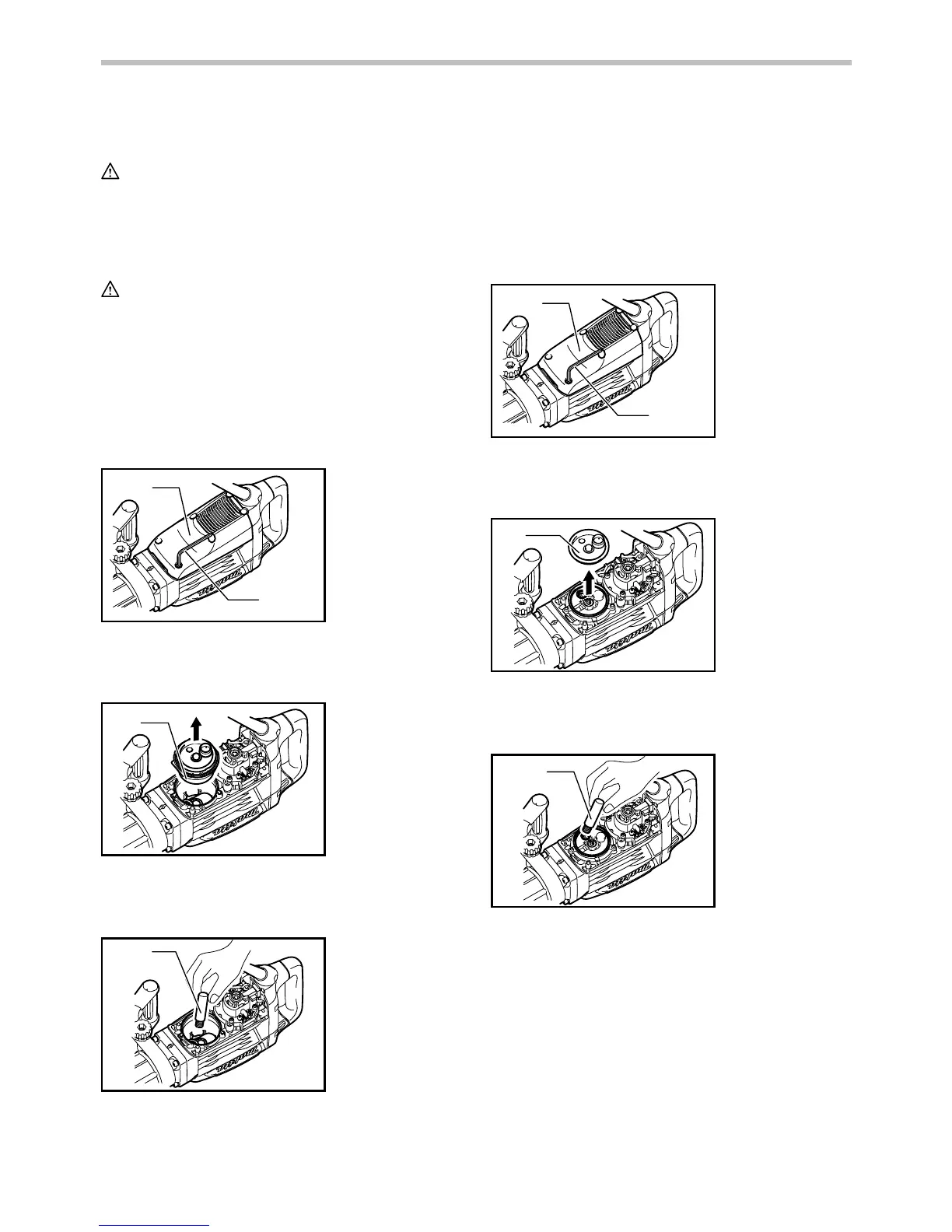

MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and
unplugged before attempting to perform inspection
or maintenance.
Lubrication
CAUTION:
• This servicing should be performed by Makita
Authorized or Factory Service Centers only.
This tool requires no hourly or daily lubrication because
it has a grease-packed lubrication system. However, it is
recommended to periodically replace the grease for
longer tool life.
First, switch off and unplug the tool.
For model HM1307C,HM1307CB only
1
2
010289
Remove the six screws using a hex wrench and remove
the rear cover.
1
010290
Pull out the crank cap in the direction of arrow and
remove it.
1
010291
Then replenish with fresh grease (60g). Use only Makita
genuine hammer grease (optional accessory). Filling
with more than the specified amount of grease (approx.
60 g; 2 oz) can cause faulty hammering action or tool
failure. Fill only with the specified amount of grease.
To reassemble the tool, follow the disassembling
procedure in reverse.
For model HM1317C,HM1317CB only
1
2
010289
Remove the six screws using a hex wrench and remove
the rear cover.
1
010295
Pull out the crank cap cover in the direction of arrow and
remove it.
1
010296
Then replenish with fresh grease (60g). Use only Makita
genuine hammer grease (optional accessory). Filling
with more than the specified amount of grease (approx.
60 g; 2 oz) can cause faulty hammering action or tool
failure. Fill only with the specified amount of grease.
To reassemble the tool, follow the disassembling
procedure in reverse.
1. Hammer grease
1. Crank cap cover
1. Rear cover
2. Hex wrench
1. Hammer grease
1. Crank cap
1. Rear cover
2. Hex wrench

Makita HM1317C Specifications

General

Input power	1510 W
Impact energy (max)	25 J
Vibration level (chiseling)	8.5 m/s²
Toolholder	30 mm
Impact rate	1450 bpm
Product color	Black, Blue

Weight and Dimensions

Depth	129 mm
Width	715 mm
Height	266 mm
Weight	17000 g
