Wipe out the old grease inside and replace with fresh
grease:
For model HR4003C, HR4013C: 30g
For model HR5202C, HR5212C: 60g
Use only Makita genuine hammer grease (optional
accessory). Filling with more than the specified amount
of grease can cause faulty hammering action or tool
failure. Fill only with the specified amount of grease.
Reinstall all removed parts.
1
014042
Attach the connector and reinstall the handle.
NOTE:
Note that the different lengths of screws are used.
NOTICE
• Do not tighten the crank cap excessively. It is
made of resin and is subject to breakage.
• Be careful not to damage the connector or lead
wires especially when wiping out the old grease or
installing the handle.
To maintain product SAFETY and RELIABILITY, repairs,
any other maintenance or adjustment should be
performed by Makita Authorized Service Centers,
always using Makita replacement parts.
OPTIONAL ACCESSORIES
CAUTION:
• These accessories or attachments are
recommended for use with your Makita tool
specified in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or
attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
• SDS-MAX Carbide-tipped bits
• SDS-MAX bull point
• SDS-MAX cold chisel
• SDS-MAX scaling chisel
• SDS-MAX clay spade
• Hammer grease
• Bit grease
• Side handle
• Side grip
• Depth gauge
• Blow-out bulb
• Safety goggles
• Carrying case
• Dust extractor attachment
NOTE:
• Some items in the list may be included in the tool
package as standard accessories. They may differ
from country to country.

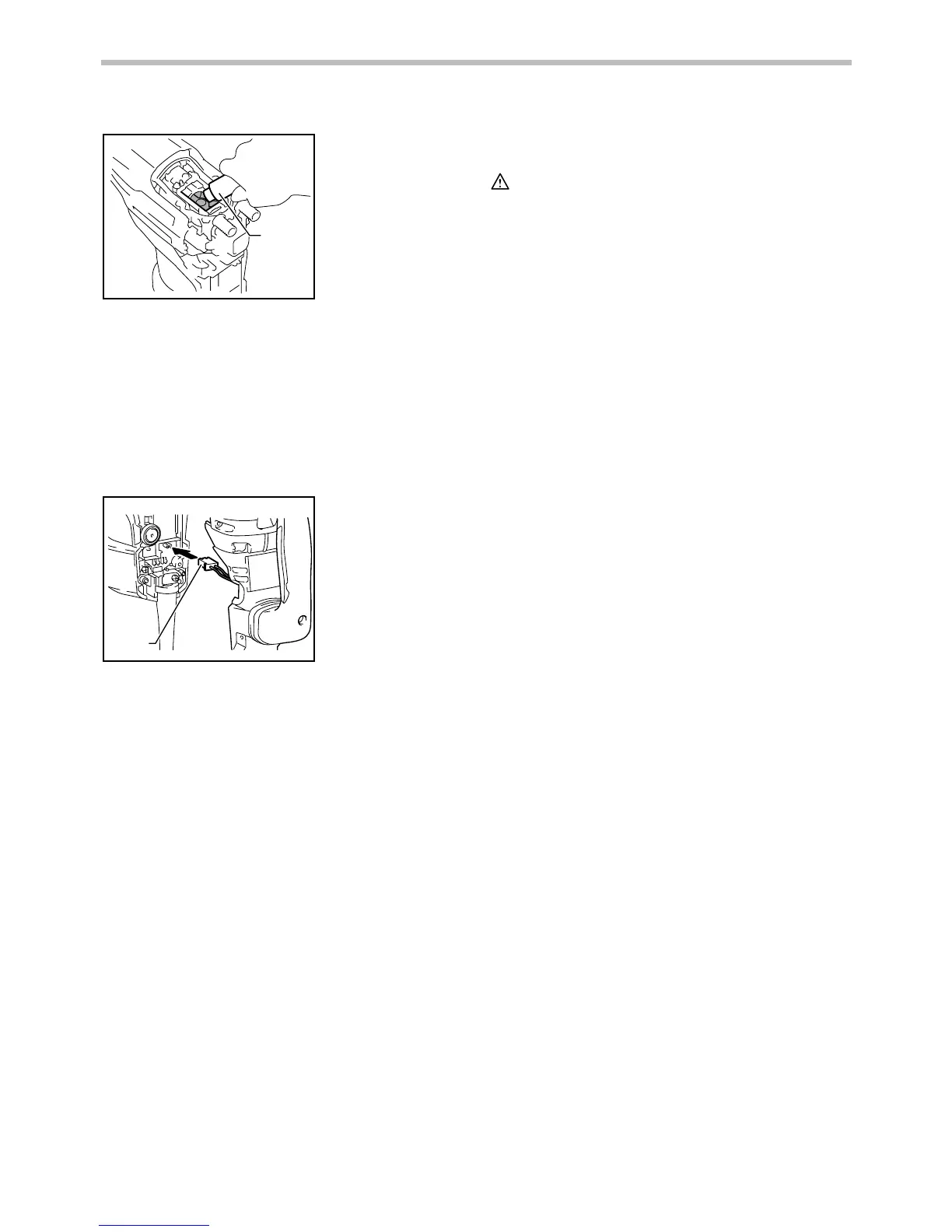

1. Connector
1. Hammer grease

Makita HR4003C Specifications

General

Type	Hammer drill
Product color	Black, Green
Idle speed (max)	500 RPM
Idle speed (1st gear)	250 RPM
Impact rate (low speed)	1450 bpm
Impact rate (high speed)	2900 bpm
Drilling diameter in wood (max)	- mm
Drilling diameter in concrete (max)	40 mm
Chuck type	SDS Max
Product design	Pistol grip drill
Hammer drilling	Yes
Input power	1100 W
Cable length	5 m
Power source	AC

Weight and Dimensions

Depth	106 mm
Width	479 mm
Height	263 mm
Weight	6200 g
