Makita HR4003C User Manual

5

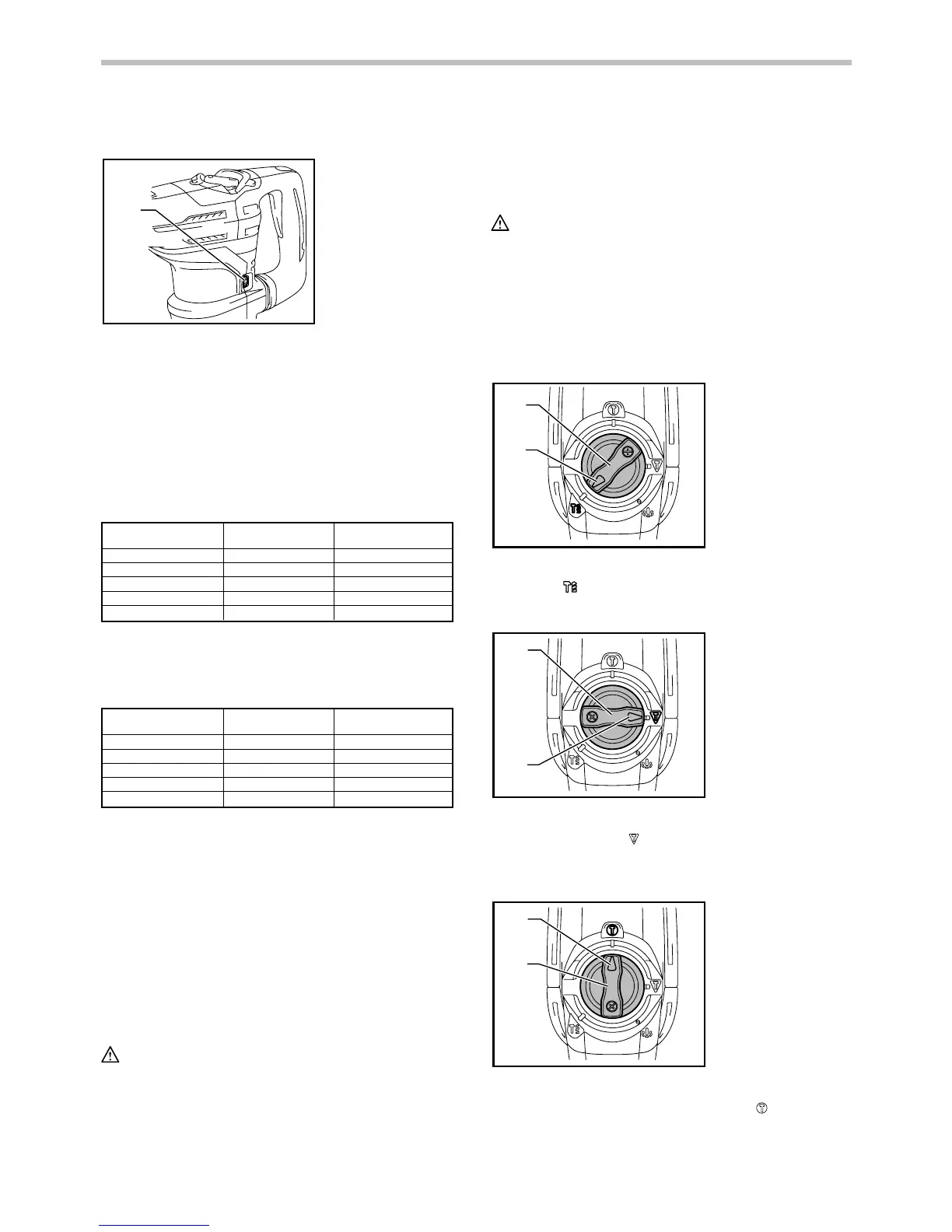

Speed change
1
014029
The revolutions and blows per minute can be adjusted
just by turning the adjusting dial. The dial is marked 1
(lowest speed) to 5 (full speed).
Refer to the table below for the relationship between the
number settings on the adjusting dial and the
revolutions/blows per minute.
For Model HR4003C, HR4013C
Number on
adjusting dial
Revolutions per
minute
Blows per minute
5 500 2,900
4 470 2,700
3 380 2,150
2 290 1,650
1 250 1,450
014134
For Model HR5202C, HR5212C
Number on
adjusting dial
Revolutions per
minute
Blows per minute
5 310 2,250
4 290 2,100
3 230 1,700
2 180 1,300
1 150 1,100
014872
For model HR4013C, HR5212C only
NOTE:
• Blows at no load per minute becomes smaller than
those on load in order to reduce vibration under no
load, but this does not show trouble. Once
operation starts with a bit against concrete, blows
per minute increase and get to the numbers as
shown in the table. When temperature is low and
there is less fluidity in grease, the tool may not
have this function even with the motor rotating.
CAUTION:
• If the tool is operated continuously at low speeds
for a long time, the motor may get overloaded,
resulting in tool malfunction.
• The speed adjusting dial can be turned only as far
as 5 and back to 1. Do not force it past 5 or 1, or
the speed adjusting function may no longer work.
Selecting the action mode
CAUTION:
• Do not rotate the change lever when the tool is
running. The tool will be damaged.
• To avoid rapid wear on the mode change
mechanism, be sure that the change lever is
always positively located in one of the action mode
positions.
Hammer drilling mode
1
2
014022
For drilling in concrete, masonry, etc., rotate the change
lever to the
symbol. Use a tungsten-carbide tipped bit.
Hammering mode (Switch trigger mode)
1
2
014024
For chipping, scaling or demolition operations, rotate the
change lever to the
symbol. Use a bull point, cold
chisel, scaling chisel, etc.
Hammering mode (Switch button mode)
2
1
014023
For continuous chipping, scaling or demolition
operations, rotate the change lever to the
symbol.
1. Change lever
2. Pointer
1. Change lever
2. Pointer
1. Change lever
2. Pointer
1. Adjusting dial

Makita HR4003C Specifications

General

Type	Hammer drill
Product color	Black, Green
Idle speed (max)	500 RPM
Idle speed (1st gear)	250 RPM
Impact rate (low speed)	1450 bpm
Impact rate (high speed)	2900 bpm
Drilling diameter in wood (max)	- mm
Drilling diameter in concrete (max)	40 mm
Chuck type	SDS Max
Product design	Pistol grip drill
Hammer drilling	Yes
Input power	1100 W
Cable length	5 m
Power source	AC

Weight and Dimensions

Depth	106 mm
Width	479 mm
Height	263 mm
Weight	6200 g
