Makita HS6601 User Manual

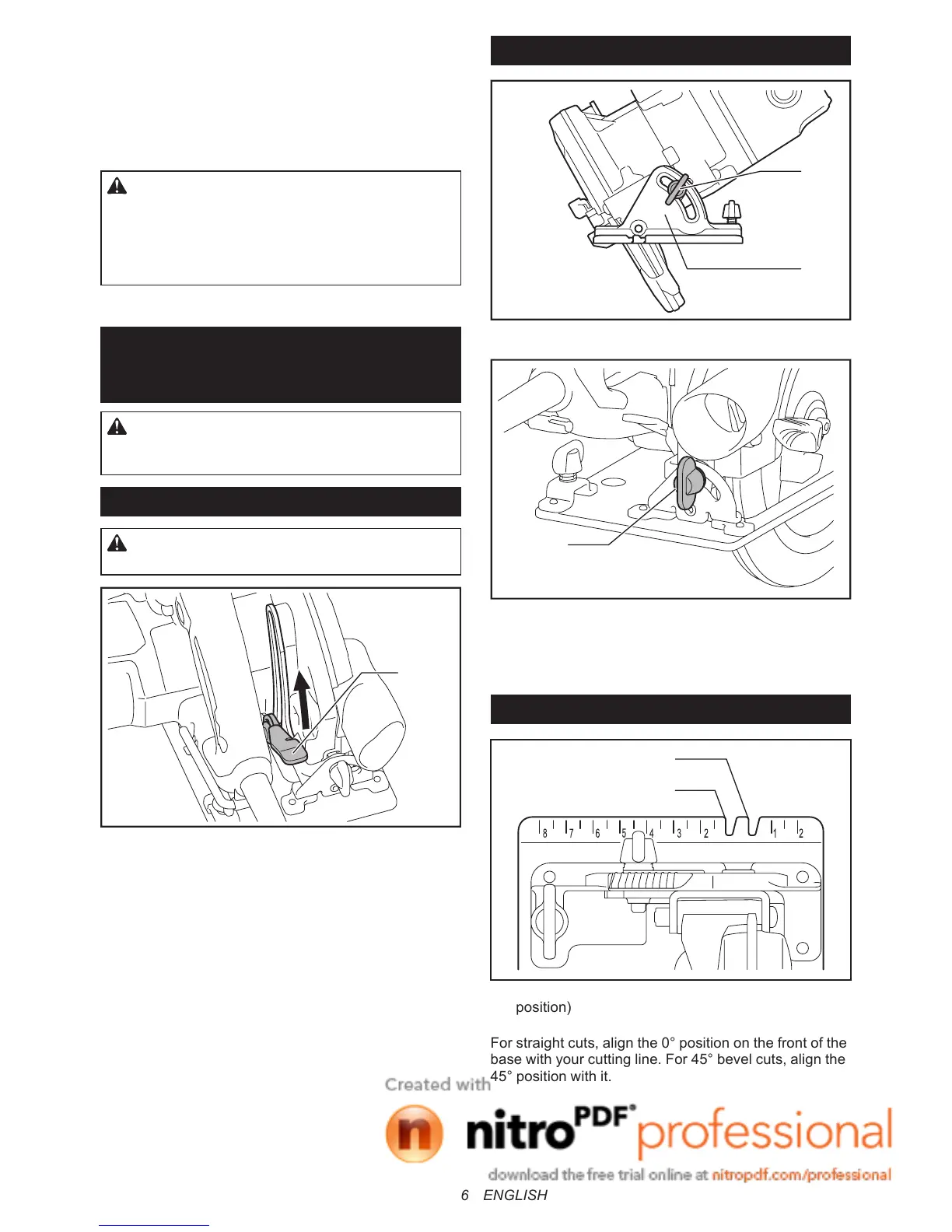

6 ENGLISH
increases potential for kickback. Keep blade clean
byrstremovingitfromtool,thencleaningitwith
gum and pitch remover, hot water or kerosene.
Never use gasoline.
12. Wear a dust mask and hearing protection when
use the tool.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product. MISUSE or failure to follow the safety
rules stated in this instruction manual may cause
serious personal injury.
FUNCTIONAL
DESCRIPTION
CAUTION: Always be sure that the tool is
switched off and unplugged before adjusting or
checking function on the tool.
Adjusting depth of cut
CAUTION: After adjusting the depth of cut,
always tighten the lever securely.
1
►1. Lever
Loosen the lever on the depth guide and move the base
up or down. At the desired depth of cut, secure the base
by tightening the lever.
For cleaner, safer cuts, set cut depth so that no more
thanonebladetoothprojectsbelowworkpiece.Using
proper cut depth helps to reduce potential for danger-
ousKICKBACKSwhichcancausepersonalinjury.
Bevel cutting
1
2
►1. Clamping screw 2. Bevel scale plate
1
►1. Clamping screw
Loosen the clamping screws. Set for the desired angle
(0° - 45°) by tilting accordingly, then tighten the clamp-
ing screws securely.
Sighting
1
2
►1. Cutting line (0° position) 2. Cutting line (45°
position)
For straight cuts, align the 0° position on the front of the
base with your cutting line. For 45° bevel cuts, align the
45° position with it.

Makita HS6601 Specifications

General

Input power	1050 W
Power source	AC
Blade bore	20 mm
Blade diameter	165 mm
Idle speed (max)	5200 RPM
Sound power level	98 dB
Blade diameter (min)	160 mm
Cutting depth (45º)	37.5 mm
Cutting depth (90º)	54.5 mm
Sound pressure level	87 dB
Sound level uncertainty	3 dB
Uncertainty K	1.5 m/s²
Blade changing key	Yes
Vibration emission	2.5 m/s²
Product color	Black, Blue

Weight and Dimensions

Depth	296 mm
Width	232 mm
Height	243 mm
Weight	3600 g
