Makita HS6601 User Manual

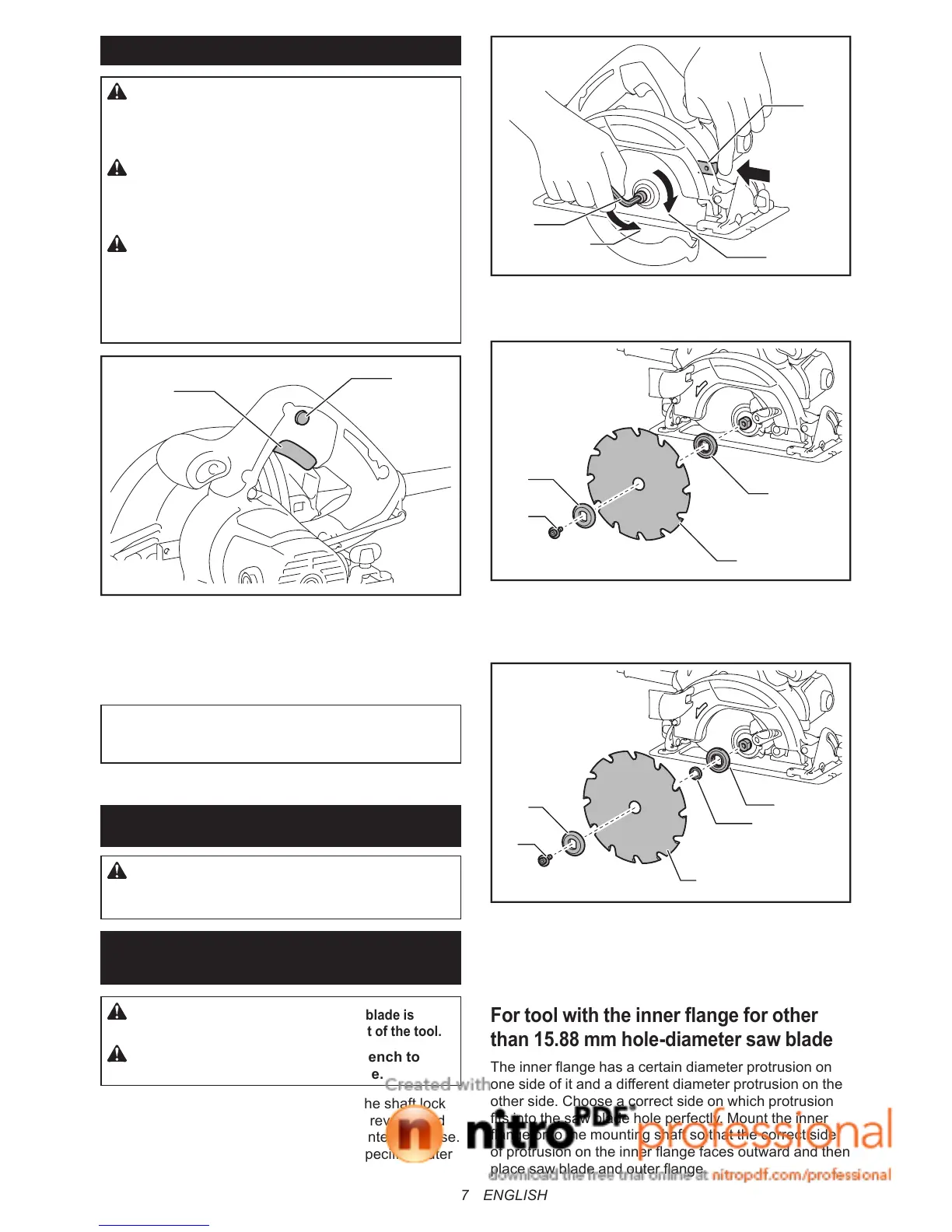

7 ENGLISH
Switch action
WARNING: Before plugging in the tool,
always check to see that the switch trigger actu-
ates properly and returns to the "OFF" position
when released.
WARNING: NEVER defeat the lock-off button
by taping down or some other means. A switch with
a negated lock-off button may result in unintentional
operationandseriouspersonalinjury.
WARNING: NEVER use the tool if it runs when
you simply pull the switch trigger without press-
ing the lock-off button. A switch in need of repair
may result in unintentional operation and serious
personalinjury.ReturntooltoaMakitaservicecenter
for proper repairs BEFORE further usage.
1
2
►1. Switch trigger 2. Lock-off button
To prevent the switch trigger from being accidentally
pulled, a lock-off button is provided. To start the tool,
depress the lock-off button and pull the switch trigger.
Release the switch trigger to stop.
NOTICE: Do not pull the switch trigger hard
without pressing in the lock-off button. This can
cause switch breakage.
ASSEMBLY
CAUTION: Always be sure that the tool is
switched off and unplugged before carrying out
any work on the tool.
Removing or installing circular saw
blade
CAUTION: Be sure the circular saw blade is
installed with teeth pointing up at the front of the tool.
CAUTION: Use only the Makita wrench to
install or remove the circular saw blade.
To remove the circular saw blade, press the shaft lock
fully so that the circular saw blade cannot revolve and
use the wrench to loosen the hex bolt counterclockwise.
Thenremovethehexbolt,ring(countryspecic),outer
angeandcircularsawblade.
1
2
4
3
►1. Hex wrench 2. Shaft lock 3. Loosen 4. Tighten
For tool without the ring
1
2
3
4
►1. Hex bolt 2.Outerange3. Circular saw blade
4.Innerange
For tool with the ring
1
2
4
5
3
►1. Hex bolt 2.Outerange3. Circular saw blade
4. Ring 5.Innerange
To install the circular saw blade, follow the removal
procedure in reverse.
For tool with the inner ange for other
than 15.88 mm hole-diameter saw blade
Theinnerangehasacertaindiameterprotrusionon
one side of it and a different diameter protrusion on the
other side. Choose a correct side on which protrusion
tsintothesawbladeholeperfectly.Mounttheinner
angeontothemountingshaftsothatthecorrectside
ofprotrusionontheinnerangefacesoutwardandthen
placesawbladeandouterange.

Makita HS6601 Specifications

General

Input power	1050 W
Power source	AC
Blade bore	20 mm
Blade diameter	165 mm
Idle speed (max)	5200 RPM
Sound power level	98 dB
Blade diameter (min)	160 mm
Cutting depth (45º)	37.5 mm
Cutting depth (90º)	54.5 mm
Sound pressure level	87 dB
Sound level uncertainty	3 dB
Uncertainty K	1.5 m/s²
Blade changing key	Yes
Vibration emission	2.5 m/s²
Product color	Black, Blue

Weight and Dimensions

Depth	296 mm
Width	232 mm
Height	243 mm
Weight	3600 g
