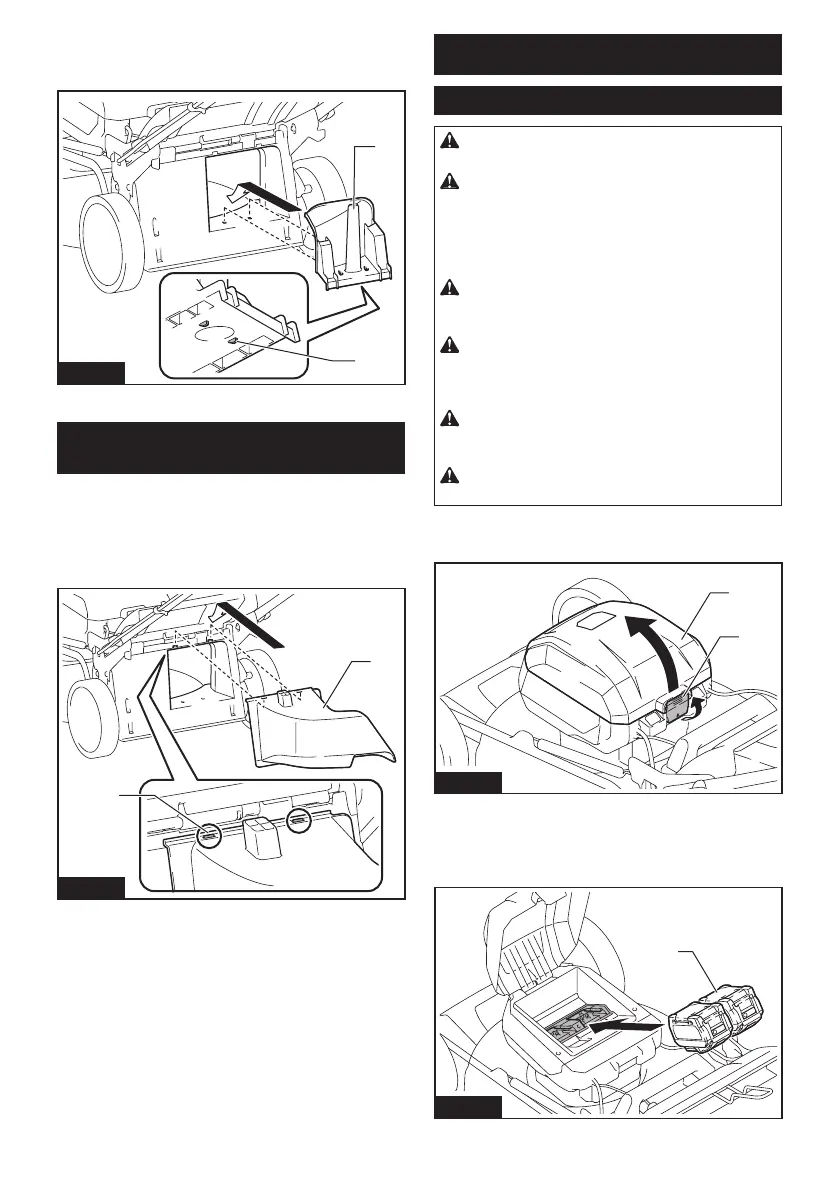

12 ENGLISH
2. Attach the mulching plug by pushing it as far as it
will go so that the protrusions on the mulching plug t
into the holes on the machine.
1
2
Fig.14
► 1. Mulching plug 2. Protrusion
Installing or removing the discharge
chute
To install the discharge chute, follow the steps below.
1. Open the rear cover, and then remove the grass
basket and mulching plug.
2. Hook the holes on the the discharge chute to the
protrusions on the mower body as shown in the gure.
1
2
Fig.15
► 1. Discharge chute 2. Protrusion
To remove the discharge chute, open the rear cover,
and then remove the discharge chute.
FUNCTIONAL DESCRIPTION
Installing or removing battery cartridge
CAUTION:
Always switch o the machine
before installing or removing of the battery cartridge.
CAUTION: Hold the machine and the battery
cartridge rmly when installing or removing bat-
tery cartridge. Failure to hold the machine and the
battery cartridge rmly may cause them to slip o
your hands and result in damage to the machine and
battery cartridge and a personal injury.
CAUTION: Make sure that you lock the battery
cover before use. Otherwise, mud, dirt, or water may
cause damage to the product or the battery cartridge.
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not,
it may accidentally fall out of the machine, causing
injury to you or someone around you.
CAUTION: Do not install the battery cartridge
forcibly. If the cartridge does not slide in easily, it is
not being inserted correctly.
CAUTION: Hold the battery cover rmly when
installing or removing the battery cartridge.
To install the battery cartridge;
1.
Pull up the locking lever, and then open the battery cover
.
2
1
Fig.16
► 1. Battery cover 2. Locking lever
2. Align the tongue on the battery cartridge with the
slot on the machine, and then slide the cartridge until it
locks in place with a little click.
1
Fig.17
► 1. Battery cartridge
