ENGLISH (Original instructions)
Contents
SPECIFICATIONS.......................................................................................................................................................2
ADDITIONAL SAFETY RULES FOR TOOL.................................................................................................................4
INSTALLATION............................................................................................................................................................6
FUNCTIONAL DESCRIPTION.....................................................................................................................................6
ASSEMBLY ...............................................................................................................................................................10
OPERATION..............................................................................................................................................................13
MAINTENANCE ........................................................................................................................................................17
OPTIONAL ACCESSORIES ......................................................................................................................................20

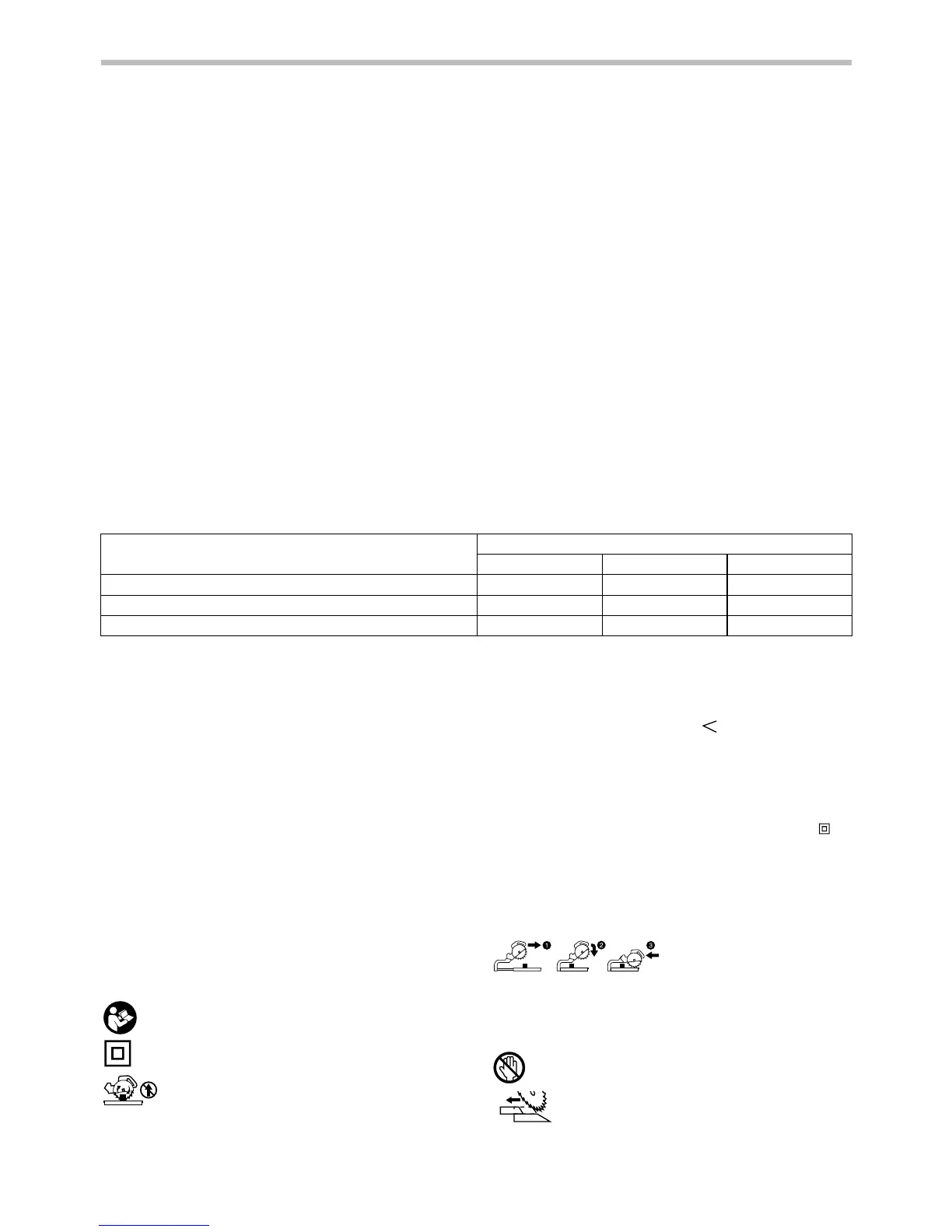

SPECIFICATIONS
Model LS0815F / LS0815FL / LS0815FL GBA
Blade diameter 216 mm
Blade thickness 1.5 - 2.5 mm
Hole diameter
- For all countries other than European countries 25.4 mm
- For European countries 30 mm
Max. Miter angle Left 50° Right 60°
Max. Bevel angle Left 48° Right 5°
Max. Cutting capacities (H x W) with 216 mm in diameter
Bevel angle
Miter angle
45° (left) 5° (right) 0°
0° 50 mm x 305 mm 60 mm x 305 mm 65 mm x 305 mm
45° 50 mm x 215 mm - 65 mm x 215 mm
60° (right) - - 65 mm x 150 mm
Rated voltage LS0815F / LS0815FL ･･･ 220 - 240 V, 50-60 Hz
LS0815FL GBA ･･･ 110 V, 50 Hz
Rated input 1,400 w, S6 40% 5 min
No load speed (min
-1
) 5,000
Laser Type (LS0815FL / LS0815FL GBA only) Red Laser 650 nm, 1mW ( Laser Class 2 )
Dimensions (L x W x H) 755 mm x 450 mm x 488 mm
Net weight For all countries other than European countries•••14.1 kg
For European countries•••LS0815F 14.1 kg
••• LS0815FL / LS0815FL GBA 14.2 kg
Safety class /II
• Due to our continuing program of research and development, the specifications herein are subject to change without notice.
• Specifications may differ from country to country.
• Weight according to EPTA-Procedure 01/2003
END223-4
Symbols
The following show the symbols used for the equipment.
Be sure that you understand their meaning before use.
･ Read instruction manual.
･ DOUBLE INSULATION
･ To avoid injury from flying debris, keep
holding the saw head down, after
making cuts, until the blade has come
to a complete stop.
･ When performing slide cut, first pull
carriage fully and press down handle,
then push carriage toward the guide
fence.
･ Do not place hand or fingers close to
the blade.
･ Adjust sliding fences clear of blade and
blade guard properly.
To Next Page
