25 ENGLISH

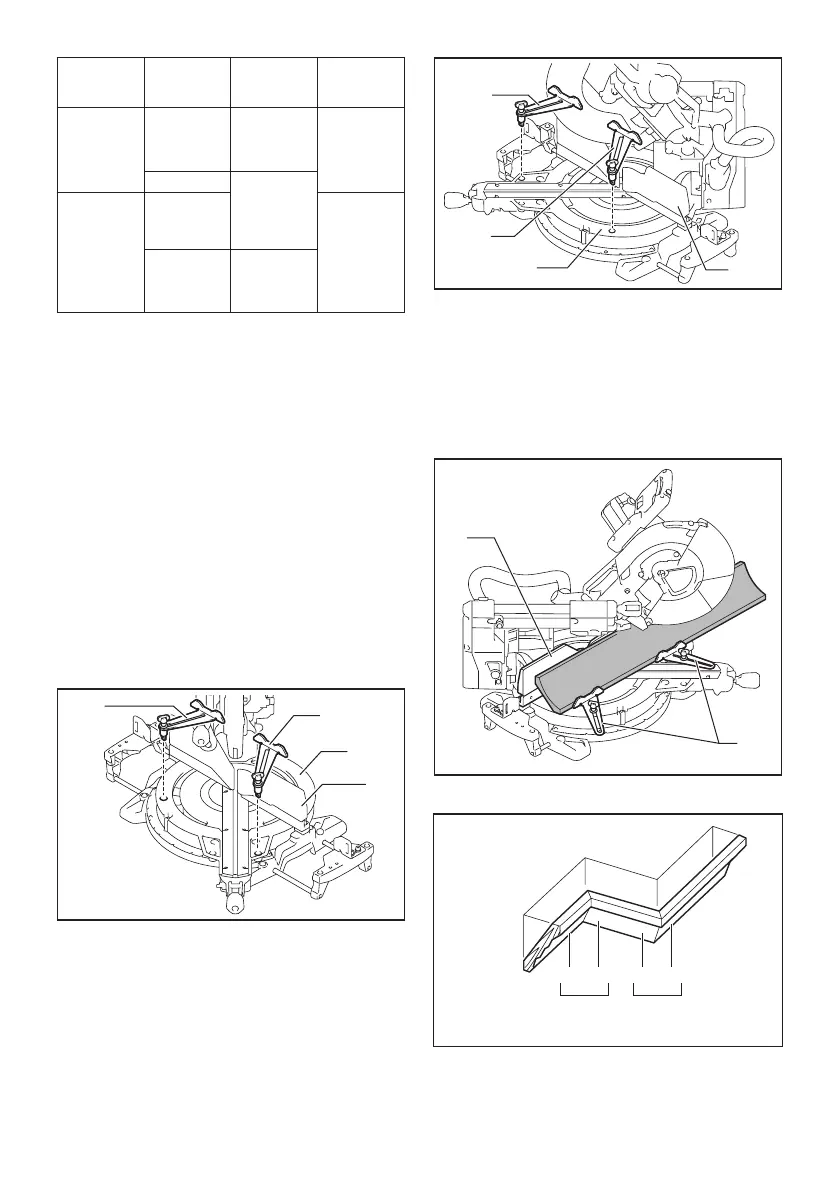

Table (B)
– Molding
position in
the gure
Molding
edge against
guide fence
Finished
piece
For inside
corner
(a) Wall contact
edge should
be against
guide fence.
Finished
piece will be
on the Right
side of blade.
(b) Ceiling
contact edge
should be
against guide
fence.
For outside
corner
(c) Finished
piece will be
on the Left
side of blade.
(d) Wall contact
edge should
be against
guide fence.
Example:
In the case of cutting 52/38° type crown molding for
position (a) in the above gure:
• Tilt and secure bevel angle setting to 33.9° RIGHT.
• Adjust and secure miter angle setting to 31.6°
RIGHT.
• Lay crown molding with its broad back (hidden)
surface down on the turn base with its WALL
CONTACT EDGE against the guide fence on the
saw.
• The nished piece to be used will always be on
the RIGHT side of the blade after the cut has been
made.
Crown molding stopper
Optional accessory
Crown molding stoppers allow easier cuts of crown
molding without tilting the saw blade. Install them on the
turn base as shown in the gures.
At right 45° miter angle
2
3
4
1
► 1. Crown molding stopper L 2. Crown molding stop-
per R 3. Turn base 4. Guide fence
At left 45° miter angle
1
2
3
4
► 1. Crown molding stopper L 2. Crown molding stop-
per R 3. Turn base 4. Guide fence
Position crown molding with its WALL CONTACT EDGE
against the guide fence and its CEILING CONTACT
EDGE against the crown molding stoppers as shown in
the gure. Adjust the crown molding stoppers according
to the size of the crown molding. Tighten the screws to
secure the crown molding stoppers. Refer to the table
(C) for the miter angle.
2
1
► 1. Guide fence 2. Crown molding stopper
(a) (b) (c) (d)
12
1. Inside corner 2. Outside corner
