19. Stop operation immediately if you notice any-
thing abnormal.
20. Do not attempt to lock the trigger in the "ON"
position.
21. Always use accessories recommended in this
manual. Use of improper accessories such as
abrasive wheels may cause an injury.
22. Some material contains chemicals which may
be toxic. Take caution to prevent dust inhala-
tion and skin contact. Follow material supplier
safety data.
Additional safety rules for the laser
1. LASER RADIATION, DO NOT STARE INTO THE
BEAM OR VIEW DIRECTLY WITH OPTICAL
INSTRUMENTS, CLASS 2M LASER PRODUCT.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product. MISUSE or failure to follow the safety
rules stated in this instruction manual may cause
serious personal injury.

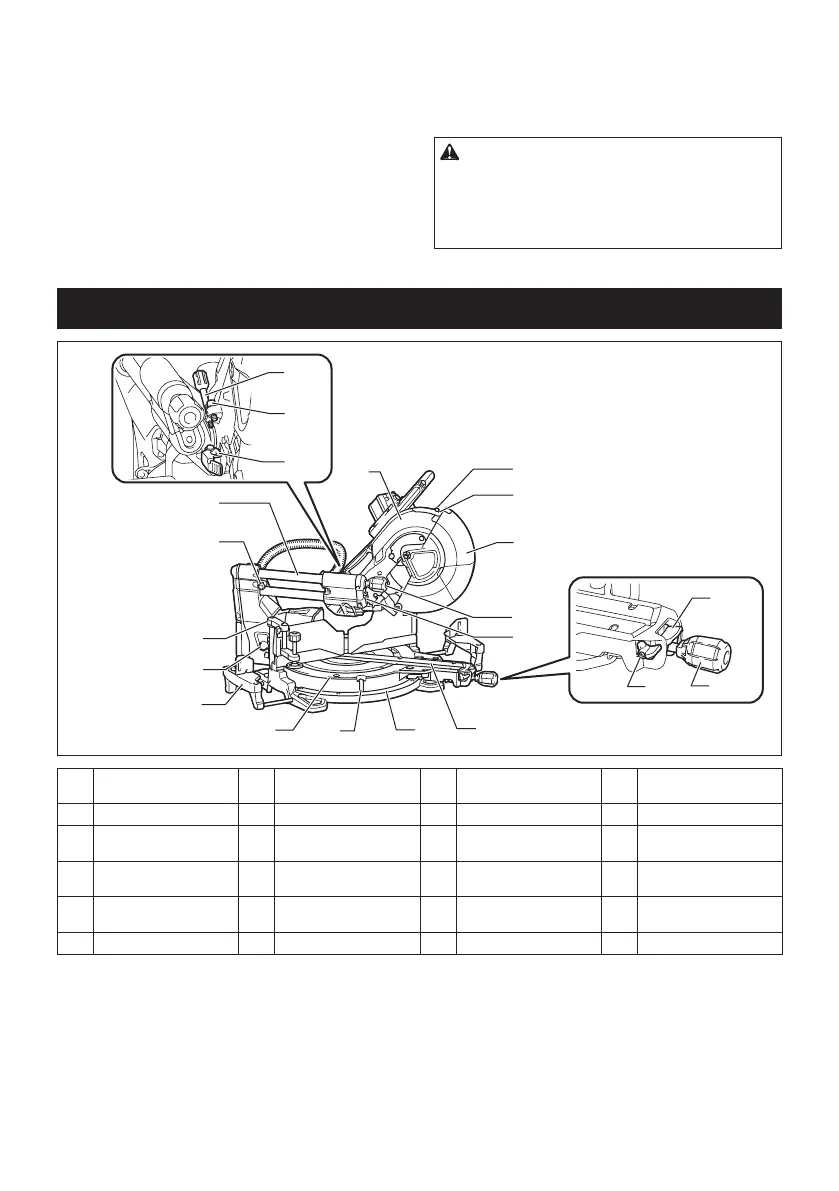

PARTS DESCRIPTION
10
11
12
14
15
3
2
4
5
8
7
9
13
6
1
16
17
18
19
20
21
1 Slide pole 2 Stopper pin (for carriage
sliding)
3 Vertical vise 4 Releasing button (for
right side bevel angle)
5 Sub base 6 Turn base 7 Pointer (for miter angle) 8 Miter angle scale
9 Kerf board 10 Blade case 11 Adjusting screw (for
laser line)
12 Range adjustment screw
(for laser line)
13 Blade guard 14 Knob (for bevel angle) 15 Hex wrench 16 Adjusting screw (for
lower limit position)
17 Adjusting bolt (for maxi-
mum cutting capacity)
18 Stopper arm 19 Lock lever (for turn base) 20 Releasing lever (for turn
base)
21 Grip (for turn base) - - - - - -
