6 ENGLISH
1
2

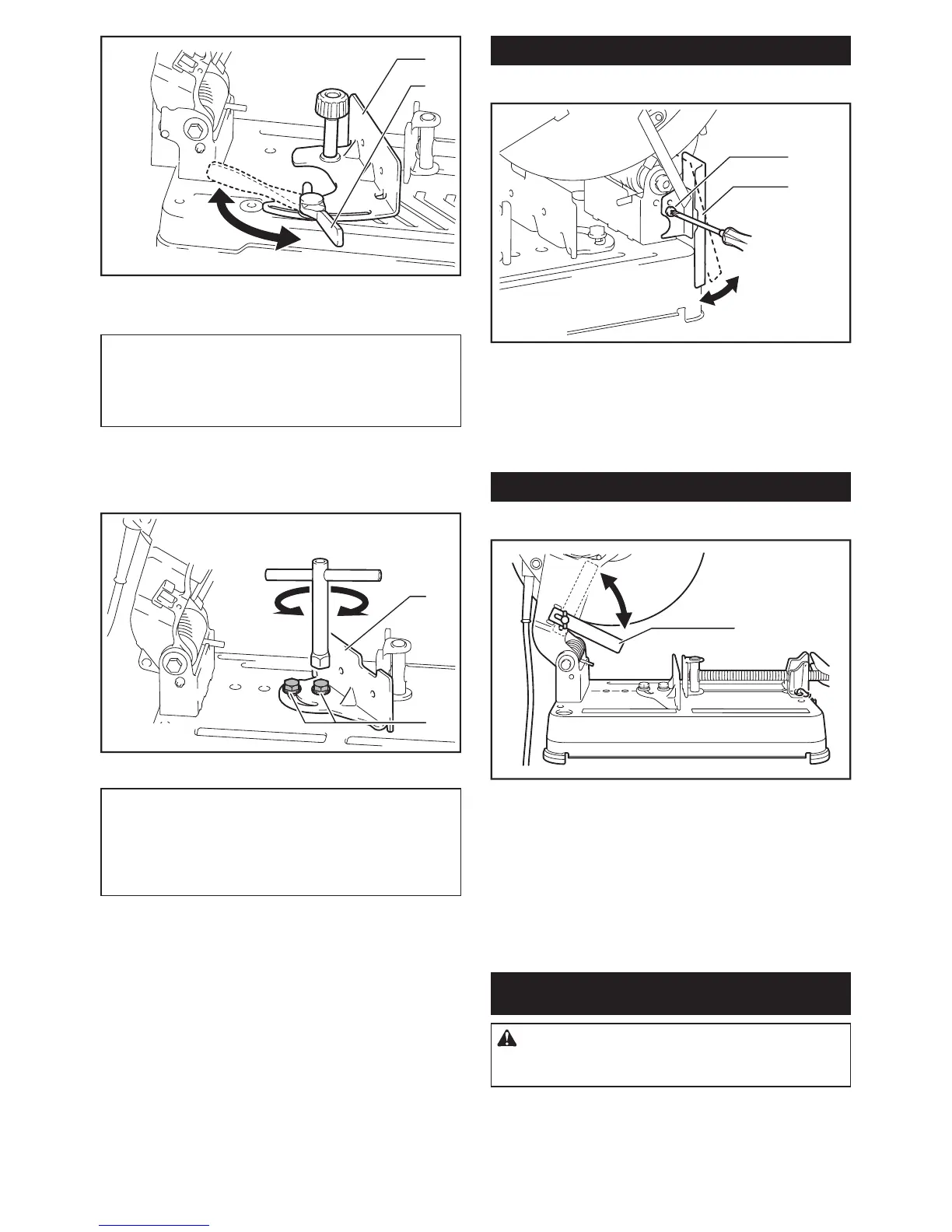

►1. Guide plate 2. Lever
For LW1401
NOTICE: When performing right miter cut,
always set the guide plate at 0 - 170 mm position.
Setting at the 35 - 205 mm or 70 - 240 mm position
hinders the movement of stopper plate, which
results in a failure cut.
Loosen the two hex bolts using a socket wrench. Turn
the guide plate to the desired angle and secure it with
the hex bolts. Be careful not to move the set angle while
securing the hex bolts.
1
2
►1. Guide plate 2. Hex bolts
NOTE: The scale on the guide plate is only a rough
indication. For more accurate angle, use a protractor
or triangle ruler. Keep the handle down so that the
cut-off wheel extends into the base. At the same time,
adjusttheanglebetweentheguideplateandthecut-
off wheel with a protractor or triangle ruler.
Spark guard adjustment
For LW1401 only (country specic)
1
2
►1. Screw 2. Spark guard
The spark guard is factory-installed with its lower edge
contacting the base. Operating the tool in this position
willcausemanysparkstoyaround.Loosenthescrew
andadjustthesparkguardtoapositionatwhichmini-
mumsparkswillyaround.
Stopper plate
For LW1401 only (country specic)
A
B
1
►1. Stopper plate
The stopper plate prevents the cut-off wheel from
contactingtheworkbenchoroor.Whenanewcut-off
wheel is installed, set the stopper plate to position (A).
When the cut-off wheel wears down to the extent that
the lower portion of the workpiece is left uncut, set the
stopper plate to position (B) to allow increased cutting
capacity with a worn down wheel.
ASSEMBLY
CAUTION: Always be sure that the tool is
switched off and unplugged before carrying out
any work on the tool.

Makita LW1401 Specifications

General

No Load Speed	3, 800 RPM
Amperage	15 A
Voltage	120 V
Blade Diameter	14 in
Cutting Capacity (Round)	127 mm
Arbor Size	1 in
Max Cutting Depth at 90°	127 mm
