Makita M4301 User Manual

9 ENGLISH

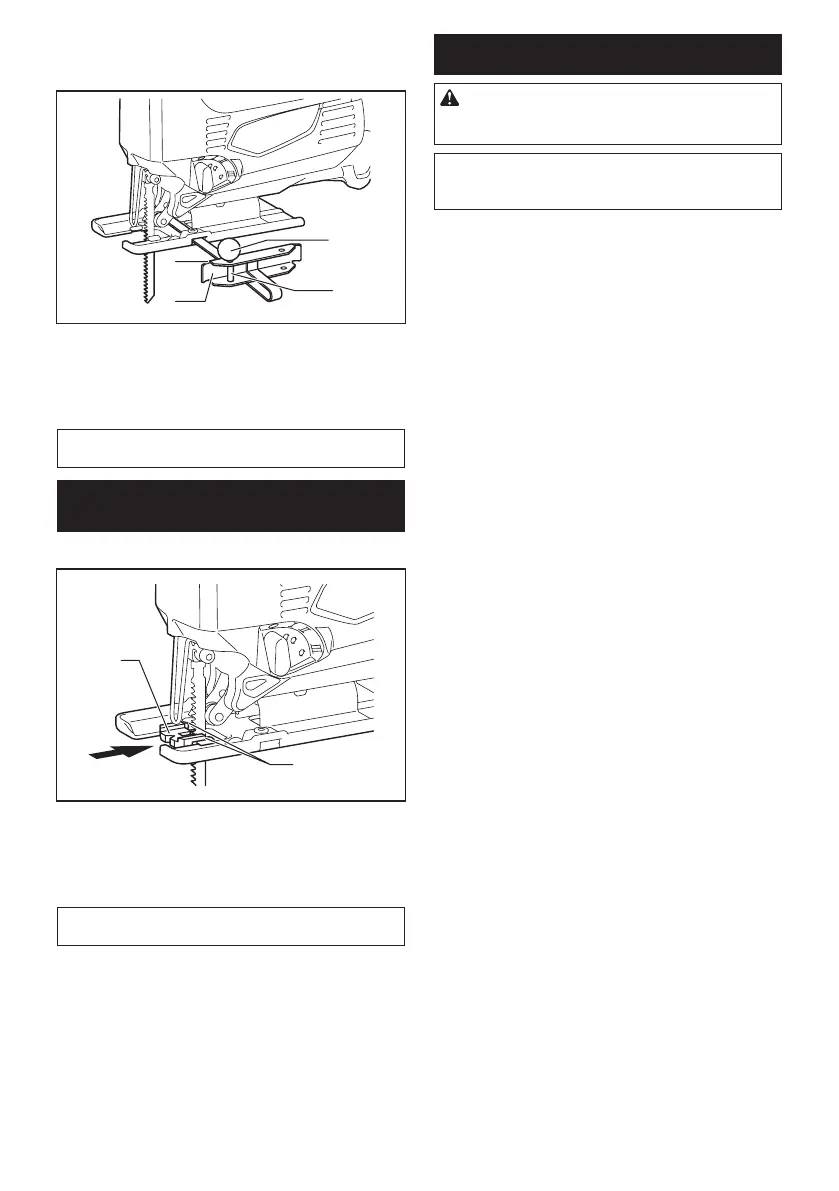

2. Insert the circular guide pin through either of the
two holes on the fence guide. Screw the threaded knob
onto the pin to secure the pin.
1
2
3
4
►1. Threaded knob 2. Fence guide 3. Rip fence
(Guide rule) 4. Pin
3. Slide the rip fence to the desired cutting radius,
and tighten the bolt to secure it in place. Then move the
base all the way forward.
NOTE:AlwaysusejigsawbladesNo.B-17,B-18,
B-26 or B-27 when cutting circles or arcs.
Anti-splintering device for steel
base
Optional accessory
1
2
►1. Anti-splintering device 2. Protrusion
For splinter-free cuts, the anti-splintering device can
be used. To install the anti-splintering device, move the
base all the way forward and insert it between the two
protrusions of the base.
NOTE: The anti-splintering device cannot be used
when making bevel cuts.
MAINTENANCE
CAUTION: Always be sure that the tool is
switched off and unplugged before attempting to
perform inspection or maintenance.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
To maintain product SAFETY and RELIABILITY, repairs,
carbon brush inspection and replacement, any other
maintenanceoradjustmentshouldbeperformedby
Makita Authorized or Factory Service Centers, always
using Makita replacement parts.

Makita M4301 Specifications

General

Input power	450 W
Cable length	2 m
Power source	AC
AC input voltage	- V
Stroke length	18 mm
Sound power level	3 dB
Sound pressure level	82 dB
Cutting depth in wood	65 mm
Idle stroke rate (max)	3100 spm
Vibration level (wood)	8 m/s²
Sound level uncertainty	3, 93 dB
Vibration level (steel)	5 m/s²
Cutting depth in non-alloyed steel	6 mm
Vibration level uncertainty (steel)	1.5 m/s²
Soft grip	Yes
Product color	Black, Orange
Bevel capacity (max)	45 °

Weight and Dimensions

Depth	214 mm
Width	75 mm
Height	202 mm
Weight	1900 g
