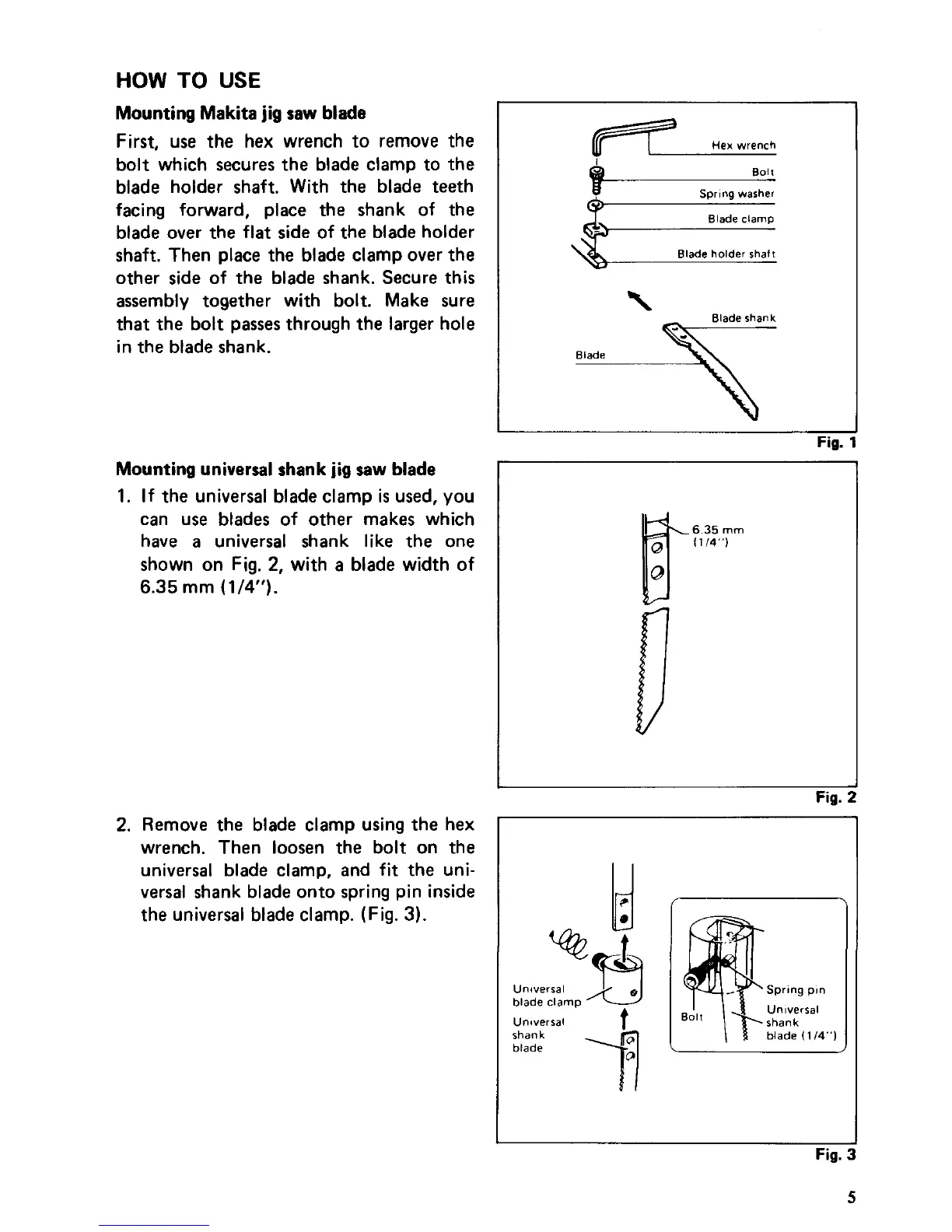

HOW TO
USE
Mounting Makita
jig
saw blade
First, use the hex wrench to remove the
bolt which secures the blade clamp to the
blade holder shaft. With the blade teeth
facing forward, place the shank of the
blade over the flat side of the blade holder
shaft. Then place the blade clamp over the
other side of the blade shank. Secure this
assembly together with bolt. Make sure
that the bolt passes through the larger hole
in the blade shank.
Mounting universal shank jig saw blade
1.
If the universal blade clamp
is
used, you
can use blades of other makes which
have
a
universal shank like the one
shown on
Fig.
2,
with
a
blade width
of
6.35
mm
(1/4").
2.
Remove the blade clamp using the hex
wrench. Then loosen the bolt on the
universal blade clamp, and fit the uni-
versal shank blade onto spring pin inside
the universal blade clamp. (Fig.
3).
Bolt
Fig.
L
Fig.
:
Universal
blade clamp
Universal
Spring
pin
Universal
shank
blade
(1
/4")
Fig.
:
5
