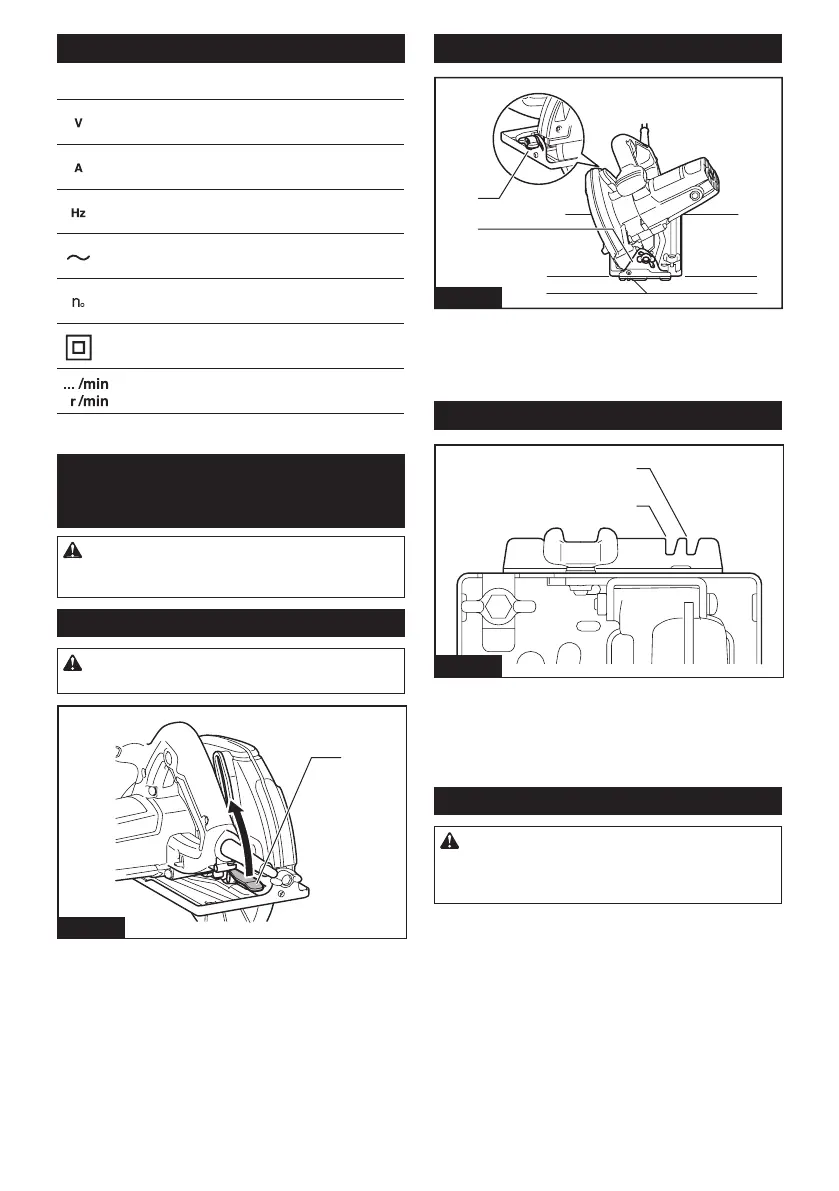

6 ENGLISH
Symbols
The followings show the symbols used for tool.
volts
amperes
hertz
alternating current
no load speed
Class II Construction
revolutions or reciprocation per minute
FUNCTIONAL
DESCRIPTION
CAUTION: Always be sure that the tool is
switched off and unplugged before adjusting or
checking function on the tool.
Adjusting depth of cut
CAUTION: After adjusting the depth of cut,
always tighten the lever securely.
1
Fig.7
► 1. Lever
Loosen the lever on the depth guide and move the base
up or down. At the desired depth of cut, secure the base
by tightening the lever.
For cleaner, safer cuts, set cut depth so that no more
than one blade tooth projects below workpiece. Using
proper cut depth helps to reduce potential for danger-
ous KICKBACKS which can cause personal injury.
Bevel cutting
1
2
Fig.8
► 1. Clamping screw 2. Bevel scale plate
Loosen the clamping screws. Set for the desired angle
(0° - 45°) by tilting accordingly, then tighten the clamp-
ing screws securely.
Sighting
2
1
Fig.9
► 1. Cutting line (0° position) 2. Cutting line (45°
position)
For straight cuts, align the 0° position on the front of the
base with your cutting line. For 45° bevel cuts, align the
45° position with it.
Switch action
WARNING: Before plugging in the tool,
always check to see that the switch trigger actu-
ates properly and returns to the "OFF" position
when released.

Makita M5802 Specifications

General

Input power	1050 W
Cable length	2 m
Power source	AC
Blade bore	30 mm
Blade diameter	190 mm
Idle speed (max)	4900 RPM
Sound power level	106 dB
Cutting depth (45º)	46 mm
Cutting depth (90º)	66 mm
Sound pressure level	95 dB
Sound level uncertainty	3 dB
Diamond disc	-
Uncertainty K	1.5 m/s²
Vibration emission	2.5 m/s²
Product color	Black, Orange
Product type	Compact saw

Weight and Dimensions

Depth	297 mm
Width	232 mm
Height	255 mm
Weight	4000 g
