5

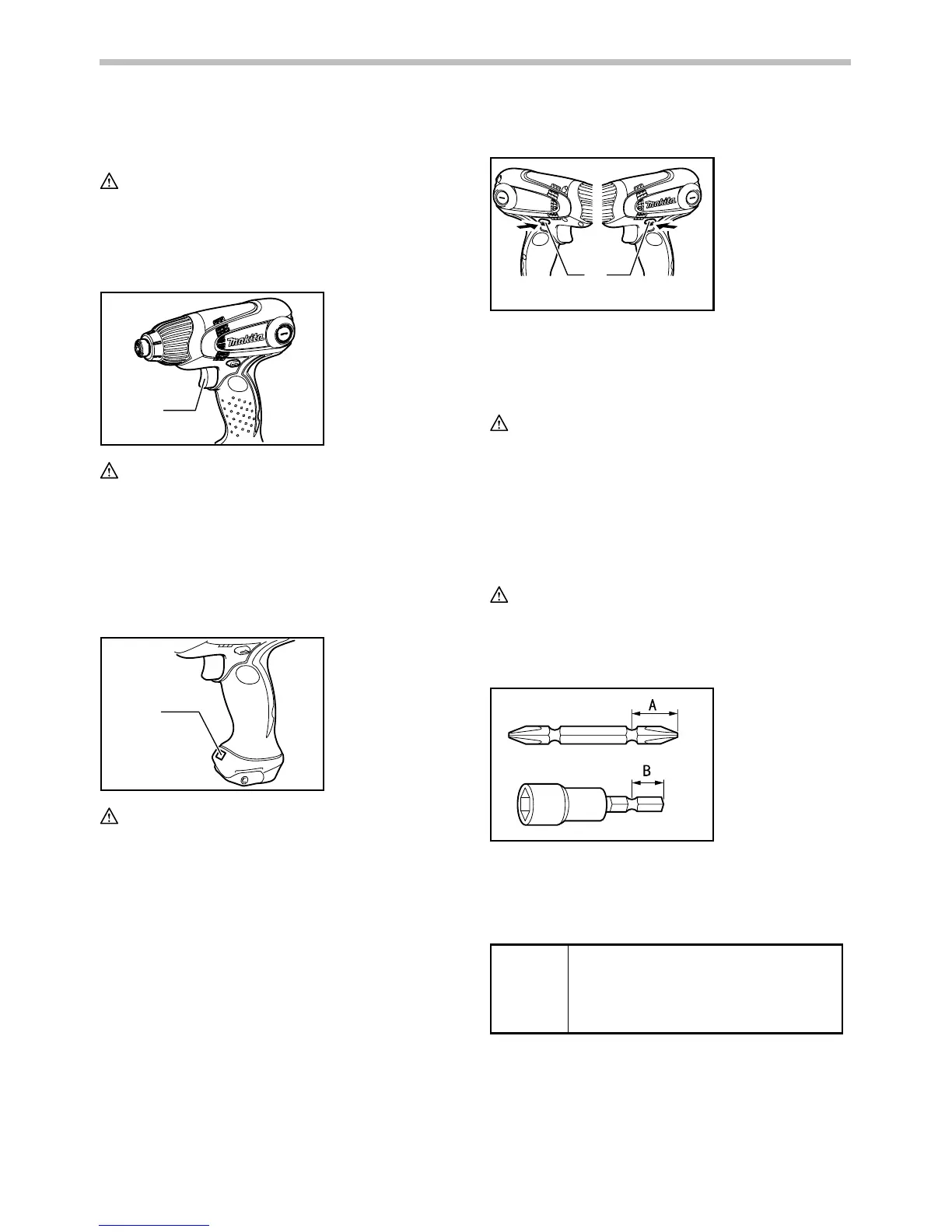

FUNCTIONAL DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and
unplugged before adjusting or checking function on
the tool.
Switch action
1
009762
CAUTION:
• Before plugging in the tool, always check to see
that the switch trigger actuates properly and returns
to the "OFF" position when released.
To s t ar t t he t ool , s im pl y p ull t he s wi t ch t ri gg er. To o l s pe ed
is increased by increasing pressure on the switch trigger.
Release the switch trigger to stop.
Lighting up the lamp (Model TD0101F only)
1
009758
CAUTION:
• Do not look in the light or see the source of light
directly.
Connect the plug to light up the lamp. The lamp keeps on
lighting while the plug is connected.
NOTE:
• Use a dry cloth to wipe the dirt off the lens of lamp.
Be careful not to scratch the lens of lamp, or it may
lower the illumination.
• Do not use thinner or gasoline to clean the lamp.
Such solvents may damage it.
Reversing switch action
A
1
B
009759
This tool has a reversing switch to change the direction of
rotation. Depress the reversing switch lever from the A
side for clockwise rotation or from the B side for
counterclockwise rotation.
CAUTION:
• Always check the direction of rotation before
operation.
• Use the reversing switch only after the tool comes
to a complete stop. Changing the direction of
rotation before the tool stops may damage the tool.
ASSEMBLY
CAUTION:
•
Always be sure that the tool is switched off and
unplugged before carrying out any work on the tool.
Installing or removing driver bit or socket bit
004521
Use only bits that has inserting portion shown in the
figure.
For European and North & South American
countries, Australia and New Zealand
A=12mm
B=9mm
Use only these type of bit. Follow the
procedure (1).
(Note) Bit-piece is not necessary.
006348
1. Reversing switch
lever
1. Lamp
1. Switch trigger
