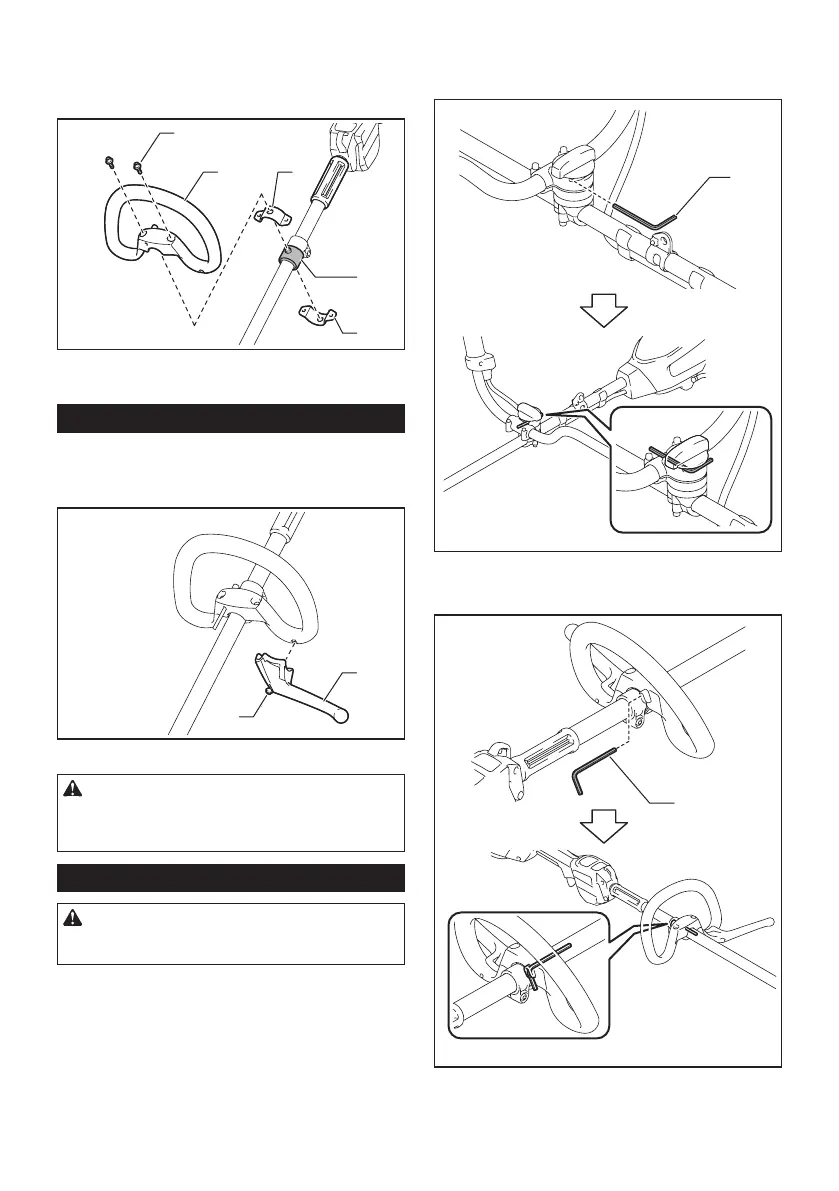

1. Attach the upper and lower clamps on the damper.
2. Putthehandleontheupperclampandxitwith
hex socket head bolts as illustrated.
1
2 3
5
4
►1. Hex socket head bolt 2. Handle 3. Upper clamp
4. Damper 5. Lower clamp
Attaching the barrier
For the loop handle model only (country specic)
If the barrier is included in your model, attach it to the
handle using the screw on the barrier.
1
2
►1. Barrier 2. Screw
CAUTION: After assembling the barrier, do
not remove it. The barrier works as a safety part
to prevent you from contacting the cutting blade
accidentally.
Hex wrench storage
CAUTION: Be careful not to leave the hex
wrench inserted in the tool head. It may cause
injuryand/ordamagetothetool.
When not in use, store the hex wrench as illustrated to
keep it from being lost.
UR006G
1
►1. Hex wrench
UR007G
1
►1. Hex wrench
