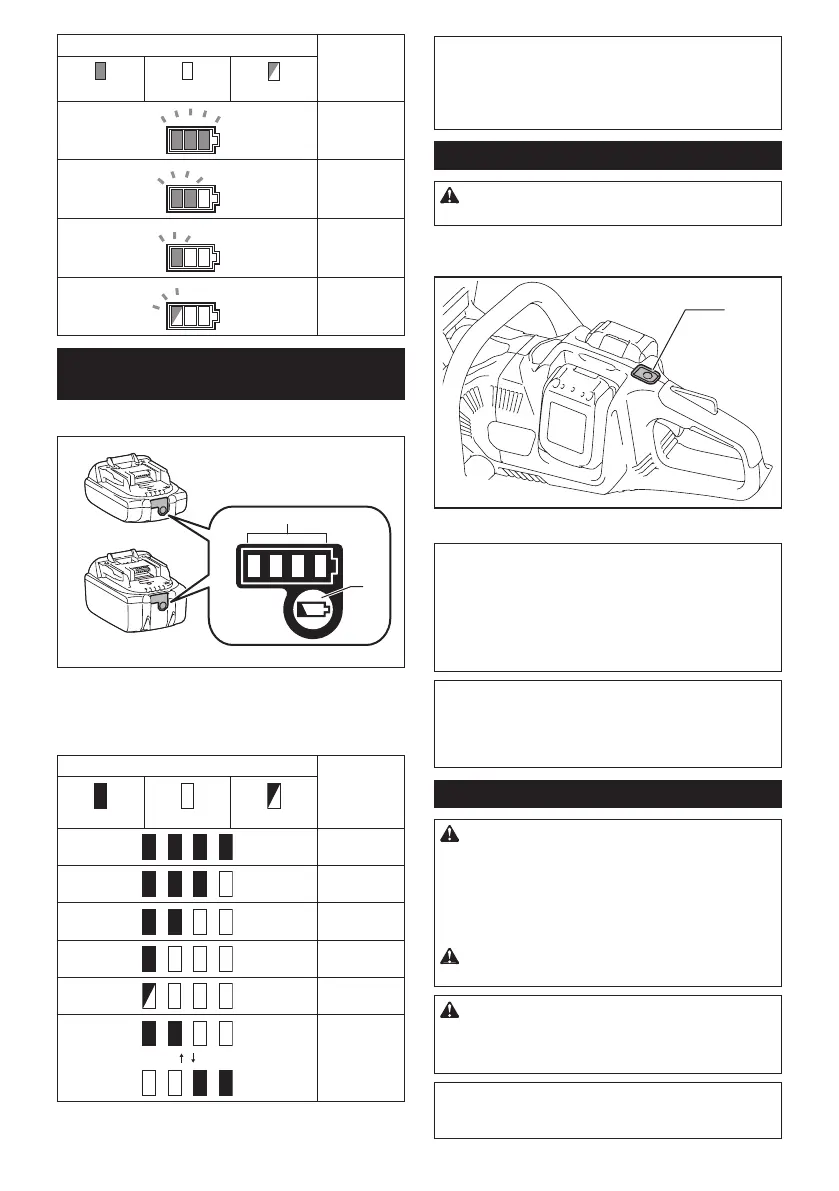

9 ENGLISH
Capacity indicator status Remaining
battery
capacity
On
O󰀨
Blinking
50% to 100%
20% to 50%
0% to 20%
Charge the
battery
Indicating the remaining battery
capacity
Only for battery cartridges with the indicator
1
2
► 1. Indicator lamps 2. Check button
Press the check button on the battery cartridge to indi-
cate the remaining battery capacity. The indicator lamps
light up for a few seconds.
Indicator lamps Remaining
capacity
Lighted O󰀨 Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
The battery
may have
malfunctioned.
NOTE: Depending on the conditions of use and the
ambient temperature, the indication may di󰀨er slightly
from the actual capacity.
NOTE: The rst (far left) indicator lamp will blink when
the battery protection system works.
Main power switch
WARNING: Always turn o󰀨 the main power
switch when not in use.
To stand by the chain saw, press the main power switch until the main
power lamp lights up. To turn o󰀨, press the main power switch again.
1
► 1. Main power switch
NOTE:
The main power lamp brinks if the switch trigger is
pulled under unoperatable conditions. The lamp blinks if you
• turn on the main power switch while holding
down the lock-o󰀨 lever and the switch trigger;
•
pull the switch trigger while the chain brake is applied;
• release the chain brake while holding down the
lock-o󰀨 lever and pulling the switch trigger.
NOTE: This tool employs the auto power-o󰀨 function.
To avoid unintentional start up, the main power switch
will automatically shut down when the switch trigger
is not pulled for a certain period after the main power
switch is turned on.
Switch action
WARNING: For your safety, this tool is
equipped with lock-o󰀨 lever which prevents the
tool from unintended starting. NEVER use the tool
if it runs when you simply pull the switch trigger
without pressing the lock-o󰀨 lever. Return the
tool to our authorized service center for proper
repairs BEFORE further usage.
WARNING: NEVER tape down or defeat pur-
pose and function of lock-o󰀨 lever.
CAUTION: Before installing the battery car-
tridge into the tool, always check to see that the
switch trigger actuates properly and returns to
the "OFF" position when released.
NOTICE: Do not pull the switch trigger hard with-
out pressing the lock-o󰀨 lever. This can cause
switch breakage.
