9

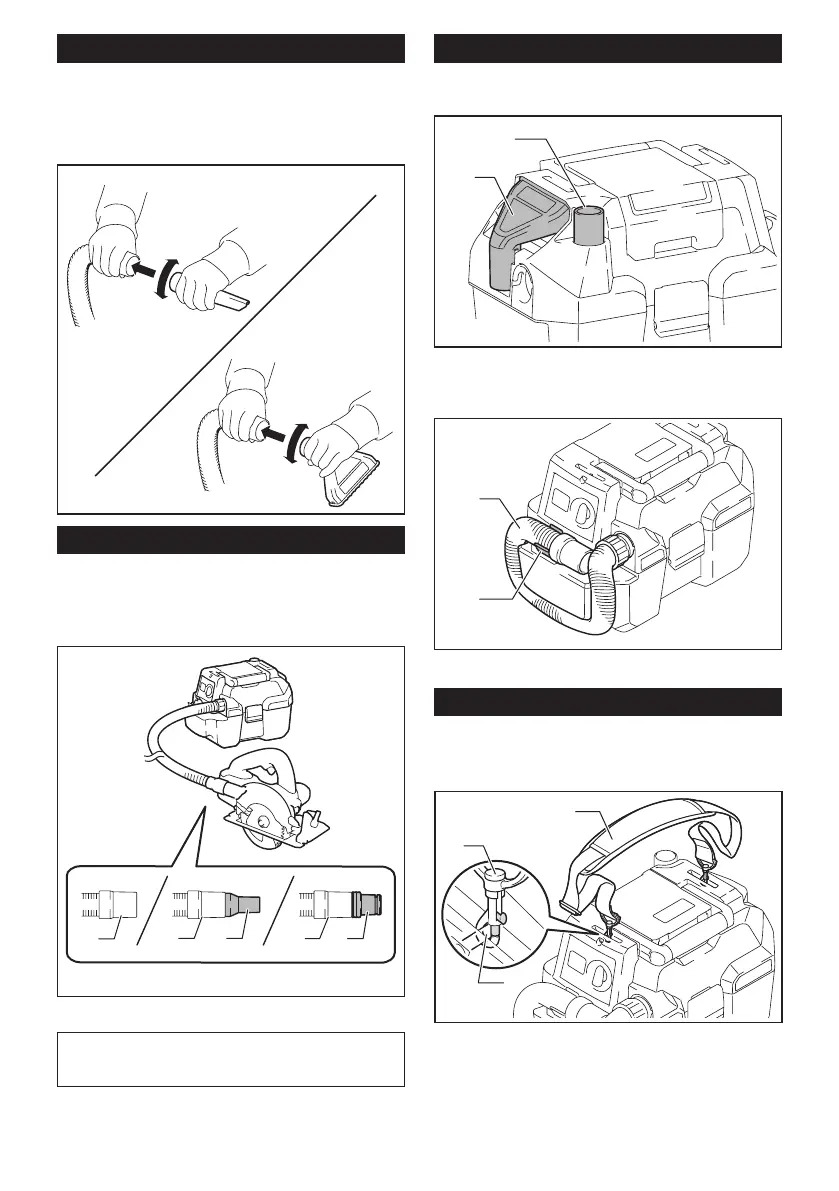

Connecting the nozzle
Attach the wide nozzle, sash nozzle, or other nozzles
supplied as optional accessories depending on your
purpose.
To attach the nozzle, twist and insert it to the end of the
hose.
Connecting the tool
Optional accessory
To connect the tool, connect the end of the hose to the
tool's extraction outlet. Depending on the tool, you may
need the optional joint 22-38 or the front cuff 24.
1
1
2
1
3
► 1. Hose 2. Joint 22-38 3. Front cuff 24
NOTE: When connecting the tool, always make sure
that the hose is connected to the suction inlet on the
cleaner.
Storage of hose and nozzles
The hose and nozzles can be stored on the tool as
illustrated.
2
1
► 1. Sash nozzle 2. Wide nozzle
When storing the hose, loop it on the tool and x it with
the hook as illustrated.
2
1
► 1. Hose 2. Hook
Installing the shoulder strap
Optional accessory
Attach the hooks of the shoulder strap onto the mounts
of the cleaner as shown in the gure.
1
2
3
► 1. Shoulder strap 2. Hook 3. Mount
To Next Page
