Maintenance and care
28

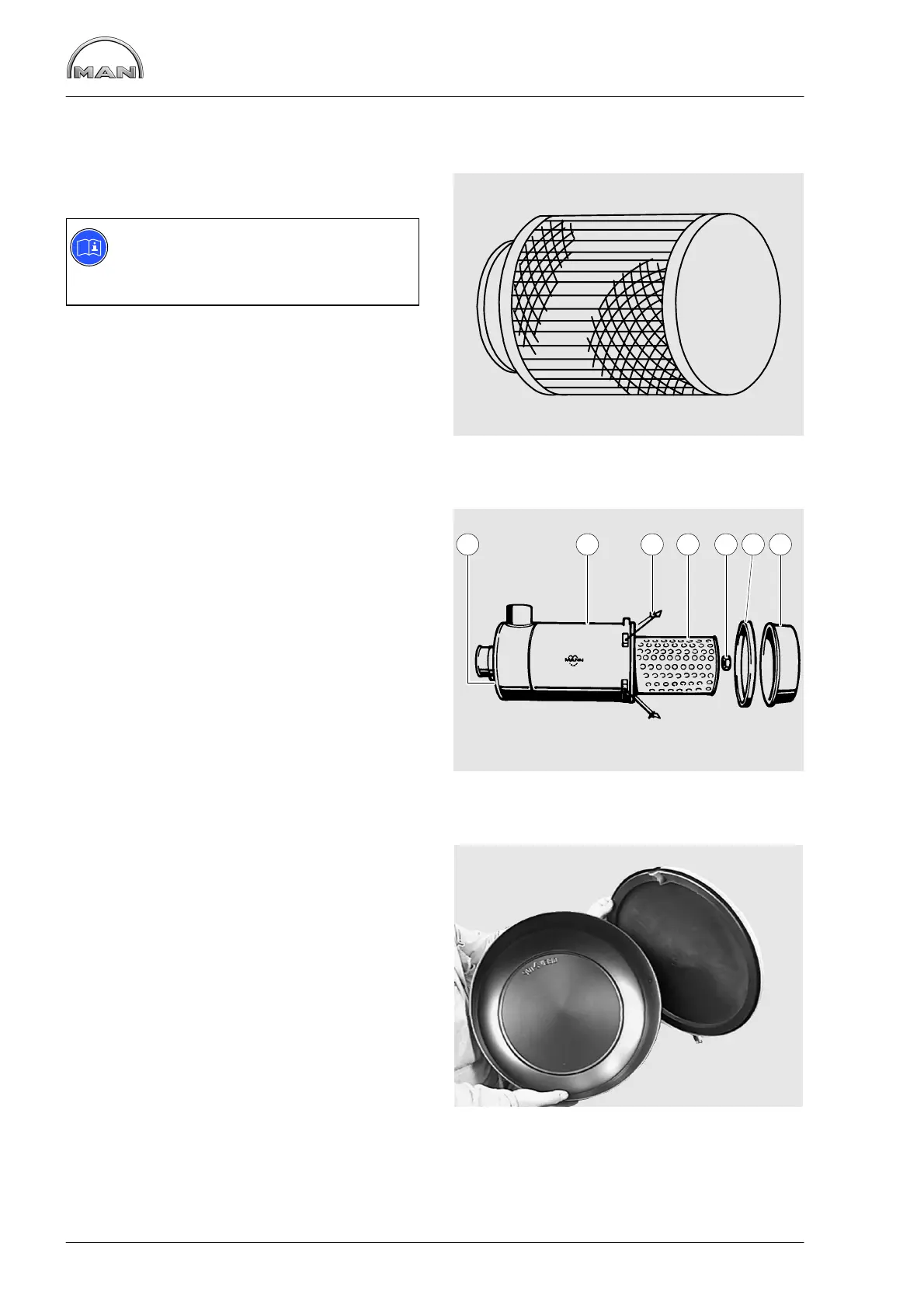

Air filter
Fitted: Duralite air filter
Note:
Do not service or wash out the
filter.
The filter must be changed after every
200 hours of operation.
Fitted: Piclon air filter
À Connection for contamination gauge
Á Filter housing
 Retainer
à Filter cartridge
Ä Hex nut
Å Lid
Æ Dust collector
Service only when engine is switched off.
1 2 3 4 5 76
Dust collector
The dust collector must be emptied at reg-
ular intervals. The collector should never
be more than half full of dust.
When the two retainers have been folded
up the dust collector can be taken off.
Remove the lid of the dust collector and
empty the collector.
Ensure that the lid and the collector are
reassembled correctly. A lug on the collec-
tor fits into a recess in the edge of the lid.
If the filter is installed horizontally note the
“oben” (“top”) marking on the filter bowl.
