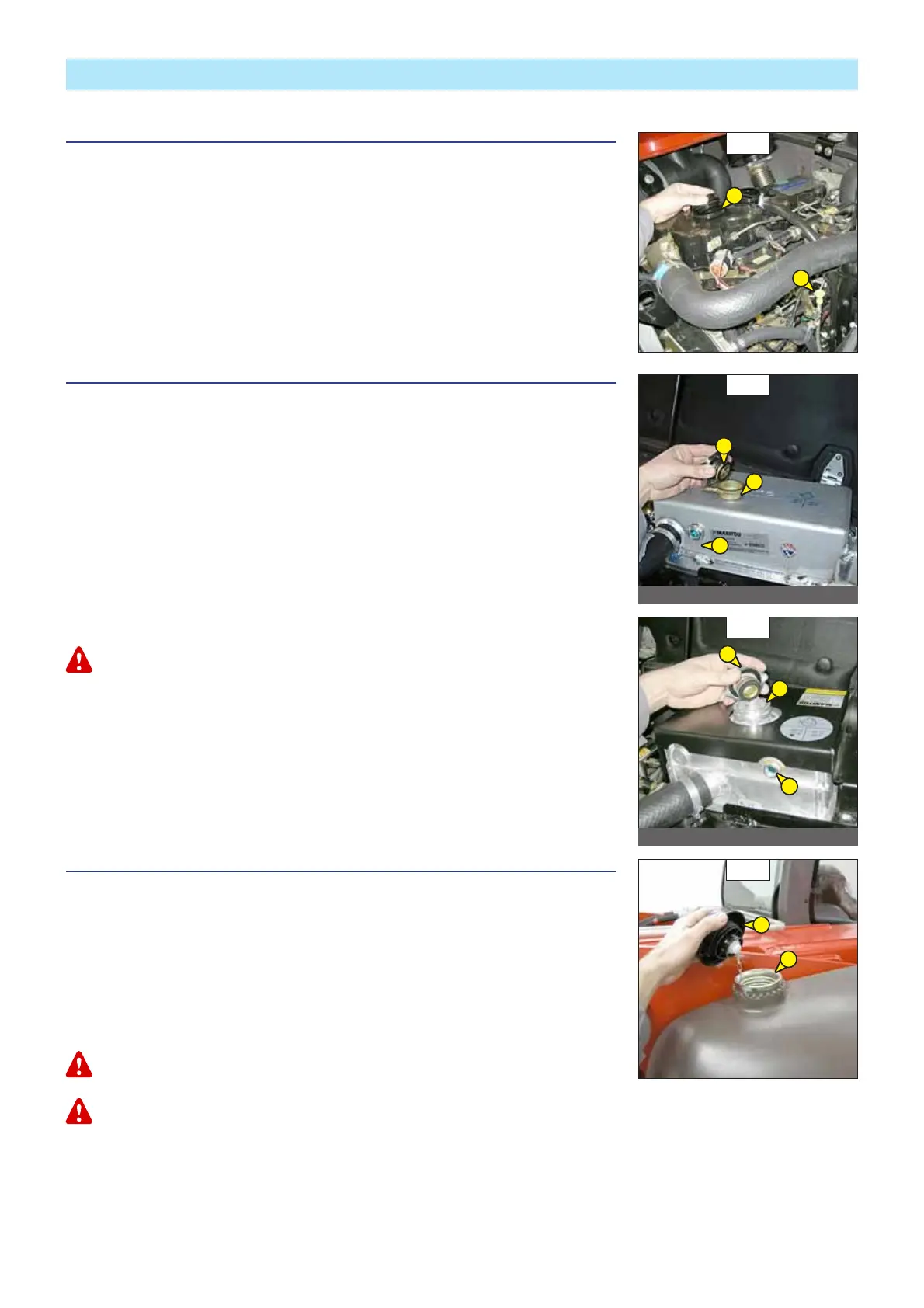

A - DAILY OR EVERY 10 HOURS SERVICE
A1 - I.C. ENGINE OIL LEVEL
CHECK
Place the lift truck on level ground with the I.C. engine stopped, and let the oil drain into the
sump.
- Open the I.C. engine bonnet.
- Remove the dipstick 1 (fig. A1).
- Clean the dipstick and check the correct level between the two notches.
- If necessary, add oil (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL) by the filler port 2 (fig.
A1).
- Check visually that there is no leakage or seepage of oil in the I.C. engine.
A2 - COOLING LIQUID LEVEL
CHECK
Place the lift truck on level ground with the I.C. engine stopped, and allow the I.C. engine to
cool.
- Open the I.C. engine bonnet.
- Check the correct level in the middle of gauge 1 (fig. A2).
- If necessary, add cooling liquid (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL).
- Slowly turn the cap of the radiator 2 (fig. A2) up to the safety stop.
- Allow the pressure and the steam to escape.
- Press down and turn the cap so as to release it.
- Add cooling liquid via filler port 3 (fig. A2) up to the middle of gauge 1 (fig. A2).
- Lubricate slightly the filler neck in order to facilitate the setting and the removal of the radiator
cap.
- Check visually that there is no leakage in the radiator and pipes.
To avoid anyrisk of sprayingor burning, wait until theI.C. enginehas cooled down before removingthe cooling
circuit filler plug. If the cooling liquid is very hot, add only hot cooling liquid (80°C). In an emergency, you can
use water as a cooling liquid, then change the cooling circuit liquid as soon as possible (see: 3 - MAINTENANCE:
F1 - COOLING LIQUID).
A3 - FUEL LEVEL
CHECK
Keep the fuel tank full, to reduce as much as possible any condensation due to the atmospheric
conditions.
- Remove cap 1 (fig. A3).
- Fill the fuel tank with clean fuel (see: 3 - MAINTENANCE: LUBRICANTS AND FUEL), filtered
through a strainer or a clean, lint free cloth, through filler port 2 (fig. A3).
- Put the cap back 1 (fig. A3).
- Check visually that there is no leakage in the tank and pipes.
Never smoke or approach with a flame during filling operations or when the tank is open. Never refill while
I.C. engine is running.
The fuel tank is degassed via the filler plug. When changing it, always use an original part, with degassing
hole.
NOTE: A locking tank cap is available as an OPTION.
A1
2
1
A3
2
1
A2
1
2
3
A2
3
1
2
MT 732 Turbo / MT 932 Turbo
MT 1030 S Turbo
647083 EN (21/06/2011)
