Manitowoc Indigo ID0522A User Manual

46 Part Number STH025 11/16

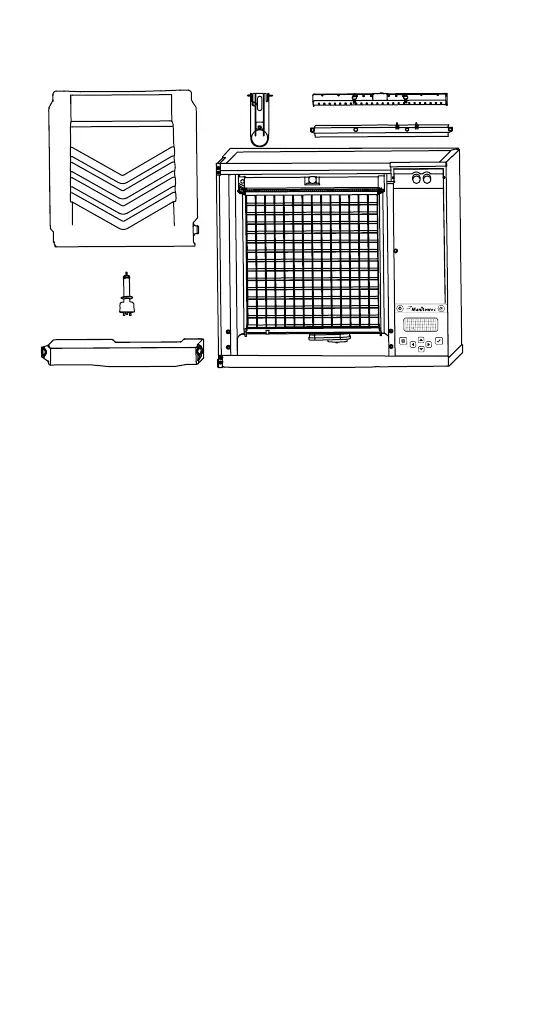

PARTS REMOVAL FOR CLEANING/SANITIZING
B
C
D
E
A
Off
On / Off Mode
[ ]
!
A. Remove the water curtain
• Gently flex the curtain in the center and remove it
from the right side.
• Slide the left pin out.
B. Remove the water trough
• Depress tabs on right and left side of the water
trough.
• Allow front of water trough to drop as you pull
forward to disengage the rear pins.
C. Remove the water level probe
• Pull the water level probe straight down to
disengage.
• Lower the water level probe until the wiring
connector is visible.
• Disconnect the wire lead from the water level probe.
• Remove the water level probe from the ice machine.
